TAF11
高温热电偶(TC)温度计

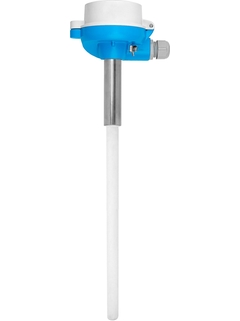

TAF11 高温热电偶(TC)温度计 ©Endress+Hauser
TAF11 高温热电偶(TC)温度计 ©Endress+Hauser

应用于钢铁处理(热处理)、混凝土转窑等基础行业

过程温度极高的测量点要求温度计装配陶瓷护套管和铂、铑等特殊金属制造的热电偶。特殊材质的护套管保护测量过程中工作元件,防止机械性破坏或化学性腐蚀,延长传感器的使用寿命。它导致的结果是:节省测量点的维护成本、提高产品的质量和加强生产的安全性。

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 护套管采用创新性的材料,提高了耐用性和防腐蚀型,延长了使用寿命

    • 传感器得到无孔材料的保护,温度测量长期稳定

    • 模块化设计,产品选择灵活

    • 可更换配件,最大限度地减少了生命周期内的使用成本

特征和规格

返回

Details

  • 测量原理

    热电偶

  • 特点/应用

    英标
    模块化温度计
    高温探头(熔炉)
    含单个陶瓷保护套管

  • 热保护套管

    陶瓷保护管

  • 铠装芯子/探头

    陶瓷毛细管,刚性

  • 热保护套管外径

    14.0 mm (0.55")
    16.0 mm (0.59")
    17.0 mm (0.68")
    22.0 mm (0.87")
    24.0 mm (0.94")
    26.6 mm (1.05")

  • 所需最大插入深度

    最大4,000.00 mm (157.48'')

  • 热保护套管材质

    陶瓷(C610)
    氮化硅陶瓷(SiN)
    烧结碳化硅(SiC)

  • 过程连接

    卡套:
    G3/4"
    G1"
    G11/2"

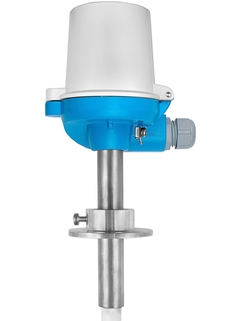

    可调节法兰

  • 热保护套管末端类型

    直管型

  • 工作温度范围

    K型:
    -40 C ...1.300 C
    (-40 F ...2.372 F)
    J型:
    -40 C ...750 C
    (-40 F ...1.382 F)
    N型:
    -40 C ...1.150 C
    (-40 F ...2102 F)
    S型:
    0 C ...1.600 C
    (32 F ...2.912 F)
    R型:
    0 C ...1.600 C
    (32 F ...2.912 F)
    B型:
    600 C ...1.600 C
    (1.112 F ...2.912 F)

  • 最大过程压力(静压)

    20 °C时:1 bar (15 psi)

  • 测量精度

    Cl. 2,符合IEC 60584标准

  • 模块化温度变送器

    是(4…20 mA;HART;PROFIBUS PA;FOUNDATION FIELDBUS)

  • 证书

    SIL(仅针对变送器)

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • B
    • Nr B Order code 60000516

      椭圆法兰

      Maximum temperature 400oC DIN 43734 Material in cast iron Mating flange and gasket not provided. Dimension: A=23mm, C=90mm, B=70mm

    • Nr B Order code 60000517

      椭圆法兰

      Maximum temperature 400oC Material in cast iron Mating flange and gasket not provided. Dimension: A=33mm, C=90mm, B=70mm

    • Order code 60020836

      卡套螺纹

      Maximum temperature 350oC Maximum pressure 1 bar. Material in stainless steel Dimension: A=G 3/4", d=22mm, Wr=41

    • Order code 60021425

      卡套螺纹

      Maximum temperature 350oC Maximum pressure 1 bar. Material in stainless steel Dimension: A=G1"1/2, d=22mm, Wr=55

    • Order code 60021757

      卡套螺纹

      Maximum temperature 350oC Maximum pressure 1 bar. Material in stainless steel Dimension: A=G1", d=22mm, Wr=41

    • Order code 60022497

      卡套螺纹

      Maximum temperature 350oC Maximum pressure 1 bar. Material in stainless steel Dimension: A=G 1"1/2, d=34mm, Wr=55

    • Order code 71182602

      密封

      5x O-ring 3.69x1.78 5x 0-ring 74.7x2.75

    • Order code 71044061

      设备包

      2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector

    • Order code TPC100-

      热电偶铠芯 TPC100

      Replaceable insert (MgO)

    • Order code TMT181-

      模块温度变送器 TMT181

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT182-

      模块温度变送器 TMT182

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, SIL2, galvanic isolation Fault reaction: NAMUR NE 43. Mounting: head form B, DIN43729. UL listed. GL (German Llyod) Marine.

    • Order code TMT82-

      模块温度变送器 TMT82

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Order code TMT84-

      模块温度变送器 TMT84

      Dual sensor input. Advanced diagnostics: sensor monitoring. Galvanic isolation 2kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. Factory setup: CH1: Pt100, 3-wire, oC CH2: inactive Differing configuration optional selectable.

    • Order code TMT85-

      模块温度变送器 TMT85

      Temperature transmitter with dual sensor input and advanced diagnostics for sensor monitoring. FOUNDATION Fieldbus protocol (ITK 5.0). Galvanic isolation 2 kV (sensor input to the output). Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN43729. UL listed, CSA General Purpose.

    • Order code FXA195-

      通讯接口 FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code TXU10-

      仪表调试包 TXU10

      用于可以PC编程调试的设备 程序设置+用于带USB接口的PC的连接线

    • Order code READWIN-

      Readwin 2000调试包 READWIN

      Readwin 2000 Operation + Read. software
