RID16

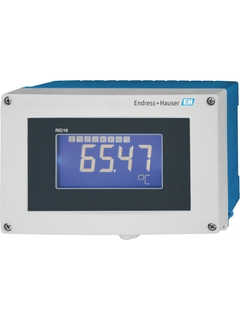

8通道用于现场总线系统的现场指示仪
支持FF基金会现场总线或PROFIBUS® PA 协议，显示8个过程值和计算值
8通道现场指示仪显示测量值、计算值以及FF基金会现场总线或PROFIBUS® PA网络中现场总线伺服设备的状态信息。处于监听模式时，设备监听设定的现场总线地址并显示数值，因此不增加总线流量。除了FF基金会现场总线，总线上的可用值可以通过功能块互连进行显示。采用纯文本显示工程单位或TAG，显示器同时提供棒图，状态趋势一目了然。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
输入
Foundation Fieldbus protocol
PROFIBUS PA protocol -
输出
Not defined
-
显示
High contrast backlit LCD with bargraph
TAG/unit -
电源
Not defined
-
附加组件
-
优势
采用现场总线通信协议，简单、标准
监听模式最多可有8个模拟通道或数字通道
清晰的LC背光棒图显示、故障诊断符号和清楚的文本框
无需外部供电
国际认证
-
应用领域
现场指示器最多可带8个输入通道，支持FF基金会现场总线或PROFIBUS® PA 协议, 大型背光显示过程值、计算值和趋势图。
文档/手册/软件
-
RID16
Technical Information
Technical Information for RID16 field indicator with FOUNDATION
Fieldbus™ or PROFIBUS® PA protocol技术信息(TI) -
RID16
Operating Instructions
Operating Instructions for RID16 field indicator with FOUNDATION
Fieldbus™ protocol操作手册（BA） -
RID16
Operating Instructions
Operating Instructions for RID16 field indicator with PROFIBUS® PA
protocol操作手册（BA） -
RID16
Brief Operating Instructions
Brief operating instructions RID16 8-channel field indicator with
FOUNDATION Fieldbus™ protocolShort Instruction (KA)09/16德语 , 英语 -
RID16
Brief Operating Instructions
Brief operating instructions RID16 8-channel field indicator with
PROFIBUS® PA protocolShort Instruction (KA)09/16德语 , 英语 -
RID16
ATEX:
II2G Ex ia IIC T4/T5/T6
IECEx:
Ex ia IIC T6/T5/T4
Safety Instructions
ATEX/IECEx Safety instructions Field Indicator RID16
Ex 防爆说明(XA) -
Control Drawing CSA IS/NI/DIP RID16
FOUNDATION Fieldbus Field Indicator RID16
Installation Notes for Hazardous Locations证书FM/CSA (ZD) -
Manufacturer Information
RID16
For users regarding firmware and hardware updates
(in accordance with the NAMUR 53 recommendation)生产商信息(MI) -
Portfolio Overview
System products and data manager
Solutions to complete your measuring point
公共出版物(PU)08/21英语 -
Portfolioübersicht Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
公共出版物(PU)08/21德语 -
Portfolio Overview
System products and data manager
Products and Solutions for completion of the measuring loop
公共出版物(PU)05/19英语 -
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misura
公共出版物(PU)05/19意大利语 -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
实际应用(FA)10/14土耳其语 -
Системные компоненты и Регистраторы
Обзор продукции
实际应用(FA)06/13俄语 -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.实际应用(FA)05/20西班牙语 -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automation实际应用(FA)04/18波兰语 -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misura实际应用(FA)04/18意大利语 -
Komponenty Systemów kontrolno-pomiarowych
Wskaźniki panelowe i obiektowe, zasilacze, bariery,
przetworniki sygnałów procesowych, ograniczniki przepięć
oraz przemysłowe liczniki ciepła i przepływu.实际应用(FA)03/10波兰语 -
Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die Prozessautomatisierung实际应用(FA)02/20德语 -
System Products and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automation实际应用(FA)02/20英语 -
Produits système et data managers
Solutions associées
实际应用(FA)01/19French -
EDD Single, EDD_FF_CO_Display_0x10CF_0x02_0x01, 14.11.2016 (Components, D
isplay, 0x10CF)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: ITK 6Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_CO_Display_0x10CF_0x02_0x01_11, 14.11.2016 (Components
, Display, 0x10CF)
FOUNDATION Fieldbus H1,
AMS Version: 11.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_CO_Display_0x10CF_0x02_0x01_12, 14.11.2016 (Components
, Display, 0x10CF)
FOUNDATION Fieldbus H1,
AMS Version: 12.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_CO_Display_0x10CF_0x02_0x01_13, 21.02.2017 (Components, Display, 0x10CF)
FOUNDATION Fieldbus H1, Package: 1.00, Variant: 1.00
AMS Version: 13.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_CO_Display_0x10CF_0x02_0x01_10, 14.11.2016 (Components
, Display, 0x10CF)
FOUNDATION Fieldbus H1,
AMS Version: 10.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, EDD_FF_CO_Display_0x10CF_0x01_0x02, 07.08.2014 (Components, D
isplay, 0x10CF)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: AnyElectronic Data Description (EDD)1.00.00Language neutral -
DTM Single, Display_RID1x_FF_FW_2_00_zz_Dev_Rev_02, 22.10.2020 (Components, Display, 0x10CF)
FOUNDATION Fieldbus H1,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R450.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 4.1 SP4
Plant Resource Manager Version: R3.12Device Type Manager (DTM)1.6.55.40Language neutral -
DTM Single, Display_RID1x_CDI_FW_1_00_00_Dev_Rev_1, 18.11.2020 (Components, Display, 0x0028)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.1.1.400Language neutral -
Faceplate Single, PRM_FF_CO_Display_0x10CF_0x01_0x01, 30.08.2019 (Components, Display, 0x10CF)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.05Faceplate1.00.00Language neutral -
Faceplate Single, PRM_FF_CO_Display_0x10CF_0x02_0x01, 21.02.2017 (Components, Display, 0x10CF)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.20Faceplate1.00.00Language neutral -
ComDTM Single, CDI_CommDTM, 22.07.2021
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Communication DTM2.09.08Language neutral -
process displays
产品型号: RID16-
一致性声明编号: HE_00445_01.17
制造商规格: RoHSManufacturer Declaration英语 -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
产品型号: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
一致性声明编号: EC_00569_01.17EU Declaration德语 , 英语 , French -
process displays
产品型号: RID16-
一致性声明编号: EC_00032_03.15EU Declaration德语 , 英语 , French -
process displays
产品型号: RID16-
一致性声明编号: EC_00342_01.16EU Declaration德语 , 英语 , French -
process displays
产品型号: RID14-, RID16-
地区/国家: China
认证机构: ACMA
证书号: MD-17039A/09/ENMiscellaneous英语 -
contactors / transmitters, process displays
产品型号: RIA14-, RIA15-, RIA16-, RIA45-, RIA452-, RIA46-, RID14-, RID16-, RMA42-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: EAEC N RU D-DE.AB53.B.01167/20Miscellaneous俄语 -
process displays
产品型号: RID14-, RID16-
地区/国家: Europe (ATEX)
认证机构: KEMA
类别: II 2 D, II 2 G, II 1 G
保护: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex tb IIIC Txxx°C DbExplosion Protection英语 -
process displays
产品型号: RIA14-, RIA16-, RID14-, RID16-
地区/国家: Canada
认证机构: CSA
类别: I,II,III/1,2/ABCDEFG
保护: DIP, GP, IS, NI, XPExplosion Protection英语 -
Process TC Heavy duty, Process TC General purpose, Process TC direct in contact, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, process displays, head transmitters, Field transmitter, ACCESSORIES: TC INSERT, ACCESSORIES: RTD INSERT
产品型号: TMT85-, TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR45-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TST310-, TMT84-, TMT82-, TMT162-, TMT142-, TEC420-, TC88-, TC66-, TC65-, TC63-, TC62-, TC61-, TC15-, TC13-, TC12-, TC10-, RID16-, RID14-, RIA16-, RIA15-, RIA14-
地区/国家: India
认证机构: NAGPUR
保护: Ex ia IIC T6...T1, Ex ia IIC T6...T4, Ex ib IIC T6...T4Explosion Protection英语 -
process displays
产品型号: RIA14-, RIA16-, RIA45-, RIA452-, RIA46-, RID14-, RID16-
保护: [Ex ia Ga] IIC T6...T4 Ga, Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex ib IIC T6...T3 Gb, Ex ib IIC Txxx°C Gb, Ex tb IIIC Txxx°C DbExplosion Protection俄语 -
process displays
产品型号: RIA14-, RIA16-, RID14-, RID16-
地区/国家: USA
认证机构: FM
类别: I,II,III/1,2/ABCDEFG
保护: DIP, IS, NI, XPExplosion Protection英语 -
process displays
产品型号: RID14-, RID16-
地区/国家: International (IECEx)
认证机构: KEMA
保护: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb, Ex tb IIIC Txxx°C DbExplosion Protection英语 -
process displays
产品型号: RID14-, RID16-
地区/国家: International
认证机构: Fieldbus Foundation
软件版本号: DEVICE REV. 01, DD-ITK 5.2Fieldbus Conformance英语 -
process displays
产品型号: RID14-, RID16-
地区/国家: International
认证机构: Fieldbus Foundation
软件版本号: DEVICE REV. 01, DD-ITK 5.2Fieldbus Conformance英语
