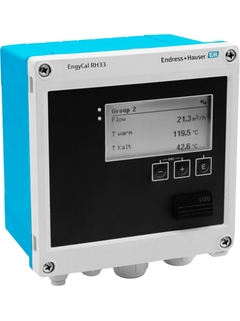

EngyCal RH33 BTU计量仪
用于计量交接的BTU计量仪,记录水的热量
RH33 BTU计量仪适用于液体能源载体计量,可根据EN1434计算水的热能、水/乙二醇混合物或其它液体如热油的热能。采用已标定 的温度传感器在设备内完成温度传感器匹配。利用现存的软件,节约成本。该设备通过了计量交接认证,允许双向测量,比如蓄热器的充电/放电
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
输入
1x Puls/Analog
2x RTD/Analog
Loop power supply 24V DC (+/-16%) -
输出
1x 4...20mA
2x digital (Open Collector) -
显示
160 x 80 Dot-Matrix LCD with white backlit
colour change in case of alarm event
active display area 70 x 34 mm -
计算结果
heat quantity and heat quantity difference
-
快速选择
个性化配置
-
优势
能源消耗透明,有助于节约能源成本
已标定的、电子配对的温度传感器确保最高的精度,已认证设备的温度传感器更换在现场即可完成(无需再认证)
关税计算器满足计费要求
详细的数据日志,记录当前值和计数值、错误信息、操作参数的禁止条件和变化等
标准模式可连接和服务所有通用型体积流量变送器和温度测量点
可通过以太网和现场总线远程读取数值
可靠性和精度通过了验证和认证
-
应用领域
用于计量交接以下回路中的热量变化:
加热回路
冷却回路
结合加热和冷却回路
典型应用与工业、长途热网与楼宇自动化。
文档/手册/软件
-
EngyCal RH33
Technical Information
Technical Information for EngyCal RH33 BTU meter
技术信息(TI) -
FDM Field Data Manager Software MS20, MS21
Data management and visualization
操作手册(BA) -
EngyCal RH33 and RS33 and Batch Controller RA33
Operating Instructions
Additional operating instructions Modbus for BTU meter RH33, Steam
calculator RS33 and Batch Controller RA33操作手册(BA) -
EngyCal RH33
Operating Instructions
Operating Instructions for universal BTU meter EngyCal RH33
操作手册(BA) -
EngyCal RH33
Brief Operating Instructions
Brief operating instructions BTU meter EngyCal RH33
Short Instruction (KA)09/14英语 -
.
.
证书(ZE) -
Manufacturer information RH33
Software update to new Firmware for EngyCal RH33
生产商信息(MI) -
kurier 03-2013
Kundenmagazin: Prozesse intelligent automatisieren
用户杂志(CM)10/13德语 -
perspektiven Energie 2014
perspektiven Energie 2014
用户杂志(CM)08/14德语 -
Liczniki EngyCal- NiS_10_2010
Przejrzyste monitorowanie zużycia nośników energii w postaci cieczy i
pary.公共出版物(PU)04/12波兰语 -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
实际应用(FA)10/14土耳其语 -
Системные компоненты и Регистраторы
Обзор продукции
实际应用(FA)06/13俄语 -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.实际应用(FA)05/20西班牙语 -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automation实际应用(FA)04/18波兰语 -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misura实际应用(FA)04/18意大利语 -
Systemprodukte und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die Prozessautomatisierung实际应用(FA)02/20德语 -
System Products and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automation实际应用(FA)02/20英语 -
Produits système et data managers
Solutions associées
实际应用(FA)01/19fr -
Brochure Condensed Launch EngyCal® RH33 and RS33
Product Launch
EngyCal® RH33
BTU Meter
EngyCal® RS33
Steam Calculator
Brochure Condensed Launch竞争力手册(CP)07/10英语 -
Brochure Condensed Launch EngyCal® RH33 and RS33
Product Launch
EngyCal® RH33
BTU Meter
EngyCal® RS33
Steam Calculator
Brochure Condensed Launch竞争力手册(CP)07/10德语 -
Measuring district heating and cooling accurately
Everything from a single source – our solution for flow, temperature and
energy calculator竞争力手册(CP)05/18英语 -
Mesure précise du chauffage et du refroidissement urbains
Package complet – notre solution pour le calcul du débit, de la
température et de
l'énergie竞争力手册(CP)05/18fr -
Fernwärme und Fernkälte präzise erfassen
Alles aus einer Hand – unsere Lösung für Durchfluss, Temperatur und
Energierechner竞争力手册(CP)05/18德语 -
IN00014R EngyCal® The RH33 BTU meter and RS33 steam calculator
for US market
Find your energy wasters
Monitoring and billing of liquid or steam heat and cooling quantities
Custody transfer approval per MID and EN 1434
Bi-directional measurement in heating and cooling systems
Remote display via Ethernet and fieldbus
interfaceElectronic pairing of temperature sensors by means of
individual sensor characteristic curves stored in the device创新(IN)11/11英语 -
EngyCal RH33 Wärmezähler
Energiemanager zur Berechnung von Wasserwärmemenge und
Wasserwärmengendifferenz简易文本11/16德语 -
DTM Single, EngyCal_RH33_CDI_FW_1_04_zz_Dev_Rev_n_a, 18.11.2020 (Components, EngyCal, 0x66FE)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.7.0.5Language neutral -
DTM Single, EngyCal_RH33_CDI_FW_1_03_zz_Dev_Rev_n_a, 18.11.2020 (Components, EngyCal, 0x66FE)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.1.6.3352Language neutral -
DTM Single, EngyCal_RH33_CDI_FW_1_02_zz_Dev_Rev_n_a, 18.11.2020 (Components, EngyCal, 0x66FE)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.1.6.3352Language neutral -
DTM Single, EngyCal_RH33_CDI_FW_1_01_zz_Dev_Rev_n_a, 18.11.2020 (Components, EngyCal, 0x66FE)
Common Device Interface,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00Device Type Manager (DTM)1.1.6.3352Language neutral -
ComDTM Single, CDI_CommDTM, 02.12.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Communication DTM2.09.07Language neutral -
contactors / transmitters
产品型号: RH33-
一致性声明编号: HE_00437_02.17
制造商规格: RoHSManufacturer Declaration中文 -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
产品型号: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
一致性声明编号: EC_00569_01.17EU Declaration德语 , 英语 , fr -
contactors / transmitters
产品型号: RA33-, RH33-, RS33-
一致性声明编号: EC_00380_01.16EU Declaration德语 , 英语 , fr -
contactors / transmitters
产品型号: RH33-
一致性声明编号: EC_00193_01.16EU Declaration德语 , 英语 , fr -
contactors / transmitters
产品型号: RH33-, RS33-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC BY_112 11.01. TP020 003 126Miscellaneous俄语 -
contactors / transmitters
产品型号: RH33-, RS33-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC BY_112 11.01. TP004 003 168Miscellaneous俄语 -
contactors / transmitters
产品型号: RH33-
地区/国家: Europe
认证机构: PTB
证书号: Z 22.75-11.01Metrology德语 , 英语 -
contactors / transmitters
产品型号: RH33-
地区/国家: Europe
认证机构: PTB
证书号: DE-10-MI004-PTB006Metrology德语 , 英语 -
contactors / transmitters
产品型号: RH33-
地区/国家: Europe
认证机构: PTB
证书号: DE-10-MI004-PTB006Metrology德语 , 英语 -
contactors / transmitters
产品型号: RA33-, RH33-, RS33-
地区/国家: Canada
认证机构: CSA
类别: GPOrdinary Location Product Safety英语
附件/备件
-
-
Order code MS20-
现场数据管理器 MS20
Visualization software and database for visualization of historical data like measured values, calibration or configuration. Manipulation protected SQL database, graphical visualization, tables for measured values, alarms or events, online help, user administration, Automatic read out of device data. Automatic data export in various formats or in secured format for backup or reduction of database. Note: The version FDM essential only supports RSG30, RSG35, RSG40 as well as RSG45 and has a restricted functionality.
-
