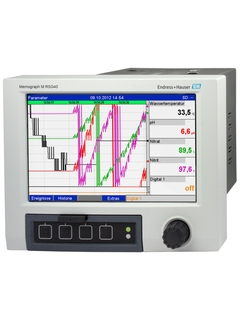

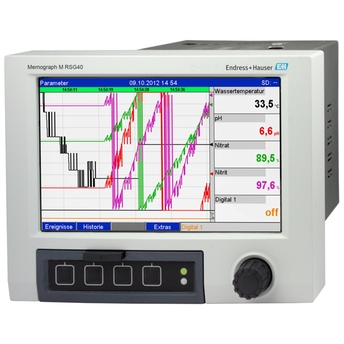

Memograph M RSG40

电子数据采集

Mass flow and energy calculation for Water and Steam.

CE,
EAC,
UL (US and CA)

4...20 universal, 6…14 digital

2 analog

6...12

24...28 V DC

195.2 x 149.2 x 227.1 mm
(7.69" x 5.87" x 8.94")

Internal calculation for mass flow and energy

Jog shuttle on site and PC software ReadWin

Wide-screen TFT

Memory inside, balancing

电子数据采集

Signal analysis
Interface / modem
OPC-Server
ReadWin 2000
Mathematic formula editor
energy package, water+steam

20 analog (U, I, TC, RTD, Frequency, Pulse)
14 digital (control, event and counting inputs)

12 Relay
2 Analog output (I, Pulse)
1 Power loop supply

RS 232
RS 485
Ethernet
Modbus RTU
Modbus TCP
PROFIBUS DP
USB

Internal memory

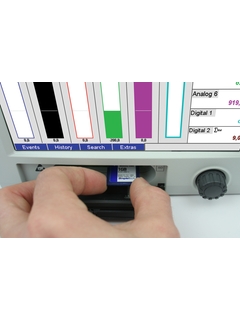

SD card
USB Stick

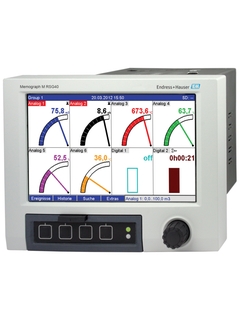

TFT 7" colour graphic display

panel mounting
desktop housing
Field housing

100...230 V AC +/-10%
24V (-10%; +15%) AC/DC

21 CFR 11
Milk pasteurisation approval
UL recognized
CSA GP

Batch programme
Waster water software
Tele-Alarm software
Gas-Steam-Heat calculation
Energy package + Water + Steam
Waste water + Storm overflow + Tele Alarm
Tele-Alarm software + Energy package + Water + Steam

数据管理器

Advanced Graphic Data Manager

The versatile solution with secure data recording, visualization and application-specific software packages.

20 analog (max) (U, I, TC, RTD, frequency, pulse)
14 digital (max) (control, event and counting inputs)

12 relays (max)
2 analog output (max) (I, pulse)
1 loop power supply

RS232/485
Ethernet
USB
Modbus RTU/TCP Slave
Modbus RTU Master
PROFIBUS DP

internal memory
SD card
USB flash drive

TFT 7" colour graphic display

panel mounting
desktop housing
field housing

21 CFR Part 11
Milk pasteurisation approval
UL recognized
CSA

Batch software
Waster water software
Tele-alarm software
Gas-steam-heat calculation
Energy software (water + steam)
Waste water + storm overflow + Tele Alarm
Tele-alarm software + energy software (water + steam)
