Proline Promass H 500
科里奥利质量流量计

科里奥利质量流量

Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os.
Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.

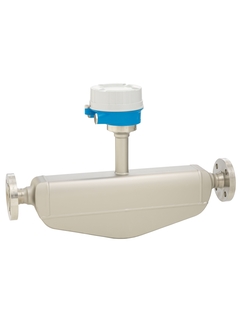

Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.

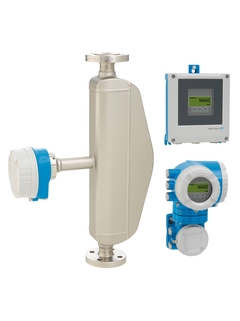

Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

DN 8...50 (³⁄₈...2⁄")

测量管：钽2.5W；702 (UNS R60702)
连接部件：钽；702 (UNS R60702)

质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

质量流量（液体）：±0.10 %
体积流量（液体）：±0.10 %
质量流量（气体）：±0.50 %
密度（液体）：±0.0005 g/cm³

0...70 000 kg/h (0...2570 lb/min)

PN 40、Cl. 300、20K

钽：–50...+150 °C (–58...+302 °F)
锆：–50...+205 °C (–58...+401 °F)

标准：–40...+60 °C (–40...+140 °F)
可选：–50...+60 °C (–58...+140 °F)

1.4301 (304L)，耐腐蚀
传感器接线盒（标准）：铝合金AlSi10Mg涂层
传感器接线盒（可选）：1.4301 (304)、1.4404 (316L)、1.4409 (CF3M)，类同316L

铝合金AlSi10Mg涂层，类同316L；聚碳酸酯

分体式传感器（标准）：IP66/67，Type 4X
分体式传感器（可选）：IP69。分体式变送器：IP66/67, Type 4X

四行背光显示，触摸键操作（外部操作）
通过现场显示单元和调试软件设置

4路输出：
4...20 mA HART（有源/无源）
4...20 mA WirelessHART
4...20 mA（有源/无源）
脉冲/频率/开关量输出（有源/无源）
双脉冲输出（有源/无源）
继电器输出

状态输入
4...20 mA输入

HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

24 VDC
100...230 VAC
100...230 VAC / 24 VDC（非危险区）

ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

CE认证、C-tick认证、EAC认证

功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

在认证标定装置上执行标定（符合ISO/IEC 17025标准）
Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

PED、CRN

3.1材料证书

科里奥利质量流量

Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os.
Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

科里奥利质量流量

Chemically resistant single-tube flowmeter, as remote version with up to 4 I/Os.
Highly accurate measurement of liquids and gases in applications requiring highest corrosion resistance.

Maximum safety for chemically aggressive fluids – corrosion‐resistant wetted parts. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube made of Tantalum, Zirconium. Nominal diameter: DN 8 to 50 (³⁄₈ to 2"). Medium temperature up to +205 °C (+401 °F).

Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

DN 8 to 50 (³⁄₈ to 2")

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Mass flow (gas, Tantalum only): ±0.50 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 40, Class 300, 20K

Tantalum: –50 to +150 °C (–58 to +302 °F)
Zirconium: –50 to +205 °C (–58 to +401 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301 (304), corrosion resistant
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): 1.4301 (304); 1.4404 (316L); 1.4409 (CF3M) similar to 316L

AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

Sensor remote version (standard): IP66/67, type 4X enclosure
Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output

Status input
4-20 mA input

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC

CE, C-tick, EAC marking

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

PED, CRN

3.1 material
