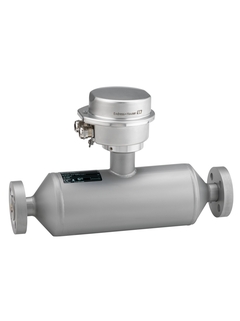

科里奥利质量流量

Combines in-line viscosity and flow measurement with an ultra-compact transmitter.
Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.

Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 8 to 80 (⅜ to 3")

Measuring tube: Titanium grade 9
Connection: Titanium grade 2

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6600 lb/min)

PN 100, Class 600, 63K

–50 to +150 °C (–58 to +302 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301/1.4307 (304L), corrosion resistant

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)

Standard: IP66/67, type 4X enclosure
Option: IP69

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)

None

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

DC 20 to 30 V

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

CE, C-Tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

PED, CRN

3.1 material

3-A, EHEDG, cGMP

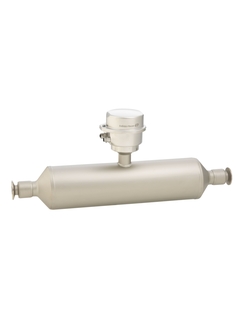

科里奥利质量流量

Combines in-line viscosity and flow measurement with an ultra-compact transmitter.
Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.

Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 8...80 (⅜...3")

测量管：9级钛
连接部件：2级钛

质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度、粘度

质量流量（液体）：±0.1 %
体积流量（液体）：±0.1 %
质量流量（气体）：±0.5 %
密度（液体）：±0.0005 g/cm³

0...180 000 kg/h (0...6600 lb/min)

PN 100，Cl. 600，63K

–50...+150 °C (–58...+302 °F)

标准：–40...+60 °C (–40...+140 °F)
可选：–50...+60 °C (–58...+140 °F)

1.4301/1.4307 (304L)，耐腐蚀

一体式：铝合金AlSi10Mg涂层
一体式/超紧凑型一体式：1.4301 (304)

标准：IP66/67，Type 4X
可选：IP69

四行背光显示（无现场操作）
通过网页服务器和调试软件设置

4...20 mA HART（有源）
脉冲/频率/开关量输出（无源）

无

HART、Modbus RS485、EtherNet/IP、PROFIBUS DP、PROFINET

20...30 VDC

ATEX、IECEx、cCSAus、INMETRO、NEPSI

在认证标定装置上执行标定（符合ISO/IEC 17025标准）
Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

PED、CRN

3.1材料证书

3-A、EHEDG

科里奥利质量流量

Combines in-line viscosity and flow measurement with an ultra-compact transmitter.
Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment.

Energy‐saving – full-bore design enables minimal pressure loss. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Straight, easy-to-clean single-tube system. TMB technology. Measuring tube made of Titanium.

Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 8 to 80 (⅜ to 3")

Measuring tube: Titanium grade 9
Connection: Titanium grade 2

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm³

0 to 180 000 kg/h (0 to 6600 lb/min)

PN 100, Class 600, 63K

–50 to +150 °C (–58 to +302 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4301/1.4307 (304L), corrosion resistant

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)

Standard: IP66/67, type 4X enclosure
Option: IP69

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)

None

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

DC 20 to 30 V

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

CE, C-Tick, EAC marking

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

PED, CRN

3.1 material

3-A, EHEDG, cGMP
