Proline Promag P 10
电磁流量计

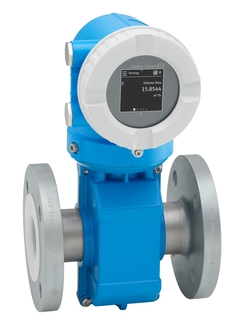

Proline Promag P 10电磁流量计,适用于基本工艺过程应用 ©Endress+Hauser

Proline Promag P 10电磁流量计,适用于基本工艺过程应用

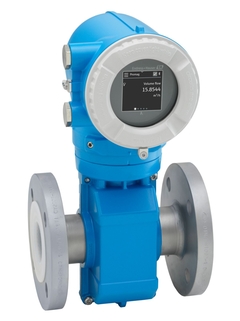

Proline Promag P 10电磁流量计,适用于基本工艺过程应用,防爆型仪表 ©Endress+Hauser

Proline Promag P 10电磁流量计,适用于基本工艺过程应用,防爆型仪表

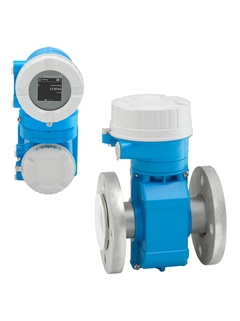

Proline Promag P 10电磁流量计(分体型仪表) ©Endress+Hauser

Proline Promag P 10电磁流量计,分体型仪表,带松套法兰,适用于基本工艺过程应用

Proline 10:简单巧妙

电磁流量测量原理

电磁流量计,适用于基本工艺过程应用,操作简单

Promag P传感器是化工行业和过程领域内的腐蚀性液体和高温液体测量的理想选择。Promag P 10的软硬件设计均直观明了,在保证Endress+Hauser高品质的前提下, 大大简化了仪表从设计到服务全生命周期内的每一步操作。采用Heartbeat Technology心跳技术,为过程安全保驾护航。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

此产品暂未在中国市场销售

  • 产品规格参数

    • 最大测量误差

      Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)

    • 测量范围

      4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

    • 介质温度范围

      Liner material PFA: –20 to +150 °C (–4 to +302 °F)
      Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

    • 最大过程压力

      PN 40, Class 300, 20K

    • 接液部件材质

      Liner: PFA; PTFE
      Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

please wait Loading alternative products

快速选择

从我们建议的选项中选择
售价
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 应用广泛:多种接液部件材质可选

    • 节能流量测量:无节流部件,无压损

    • 免维护:无可移动部件

    • 最优操控性:使用移动终端设备,安装SmartBlue app,直接触摸屏操作

    • 调试简单高效:引导式仪表组态预设置和现场设置

    • 带自校验功能:采用Heartbeat Technology心跳技术

  • 应用领域

    • 双向流量测量,完全不受压力、密度、温度和粘度的影响。

    • 化工行业和过程领域内的腐蚀性液体测量的理想选择。

    仪表特点

    • 最大公称口径:DN 600 (24")

    • 通过通用防爆认证

    • PTFE或PFA内衬

    • 支持HART或Modbus RS485系统集成

    • 安装app,选配显示单元,操作灵活

特征和规格

返回

Details

  • 测量原理

    电磁

  • 产品标题

    Flowmeter for basic process applications with easy-to-use operation concept.
    Dedicated to chemical and process applications with corrosive liquids.

  • 传感器特点

    Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
    Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA.

  • 变送器特点

    Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
    System integration with HART, Modbus RS485. Flexible operation with app and optional display.

  • 公称口径范围

    DN 15 to 600 (½ to 24")

  • 接液部件材质

    Liner: PFA; PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

  • 测量变量

    Volume flow, conductivity, mass flow

  • 最大测量误差

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)

  • 测量范围

    4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

  • 最大过程压力

    PN 40, Class 300, 20K

  • 介质温度范围

    Liner material PFA: –20 to +150 °C (–4 to +302 °F)
    Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

  • 环境温度范围

    Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
    Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

  • 传感器外壳材质

    DN 15 to 300 (½ to 12""): AlSi10Mg, coated
    DN 350 to 600 (14 to 24""): Carbon steel with protective varnish

  • 变送器外壳材质

    AlSi10Mg, coated

  • 防护等级

    Standard: IP66/67, Type 4X enclosure

  • 显示/操作

    2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible

  • 输出

    4-20 mA HART (active/passive), Pulse/frequency/switch output
    Modbus RS485, 4-20 mA

  • 数字通信

    HART, MODBUS RS485

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, JPN

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    Driking water approvals: ACS; NSF61

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 38
    • Nr 38 Order code 71505739

      Kit S+T-DAT Promag 10, Non-haz/Exd/Z2

      Electronic storage module unprogrammed Usage: Promag 10. Consists of: S+T-DAT.

  • 33
  • 46
  • 33
