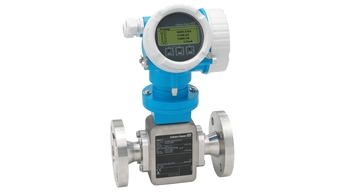

Promag 23H

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

测量原理

电磁
产品标题

卫生/食品行业的流量测量，尤为适用于采用两线制技术的化工行业，可在防爆区中使用
传感器特点

两线制MID，本安型，用于标准应用场合，S-DAT, T-DAT，认证，2个累加器，密度计算功能，质量流量计算，3A认证，EHEDG测试
公称口径范围

"DN 2...100，1/12"...4"
最大测量误差

±0.5%
测量范围

0...282 m3/h
最大过程压力

PN16...40
介质温度范围

-20...+150℃
环境温度范围

-20...+60℃
防护等级

IP 67 (NEMA 4x)
显示/操作

四行显示，触摸屏控制
输出

4...20mA, 交变脉冲，频率或状态
数字通信

HART
防爆认证

ATEX、FM、CSA

显示更多
显示更少

文档/手册/软件

下载类型

过滤

两线制电磁流量测量系统
卫生型测量场合，食品行业和过程测量中液体的流量测量

技术信息(TI)
Proline Promag 23 HART Description of Device Functions
Description of the device functions (options and inputs). Additional
documentation for Operating Instructions PROline Promag 23.

操作手册（BA）
Proline Promag 23 HART Operating Instructions
Electromagnetic Flow Measuring System (Two-wire, loop-powered) for
measuring the flow rate of conductive fluids. The description ofthe
device functions are in a separate documentation.

操作手册（BA）
Proline Promag 23 简明操作指南
两线制电磁流量测量系统

Short Instruction (KA)

11/10

英语
Replacing S-DAT Installation Instructions
Promag 23, 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, 8WF, Cubemass
DCI 8CN, CNGmass DCI 8DF, t-mass 65

安装指南(EA)
Transmitter parts Promag 23
Installation Instructions

安装指南(EA)
Interface parts Installation Instructions
Promag 10, 23, 50, 51, 53, 55, 400, 800

安装指南(EA)
Replacing T-DAT Installation Instructions
Promag 23, 53, 55, Promass 83, 84, 8WF, 8ME, Cubemass DCI 8CN, CNGmass
DCI 8DF, Prosonic Flow 91, 93, t-mass 65

安装指南(EA)
Replacing cover and O-ring Installation Instructions
romag 10, 23, 50, 51, 53, 55, 400, 800, Promass 40, 80, 83, 84, 8ME,
CNGmass 8FF, LPGmass 8FE, Cubemass 8CM, Prosonic Flow 90, 91,9
2, 93, t-mass 65, Prowirl 72, 73

安装指南(EA)
Distance sleeves in plastic process connections, sensor nominal diameter DIN DN 25 and ANSI 1" Installation Instructions
Promag 10 H, 23 H, 50 H, 53 H, 55 H

安装指南(EA)
Replacing the transmitter Installation Instructions
Promag 10, 23, 50, 53, 55

安装指南(EA)
Proline Promag 23 Division 1 Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA045D, BA050D.
Ex documentation for the operating instruction BA045D, BA050D.
Documentation Ex relative à la mise en service BA045D, BA050D.

Ex 防爆说明(XA)
Proline Promag 23 ATEX II2G Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA045D, BA050D.
Ex documentation for the operating instruction BA045D, BA050D.
Documentation Ex relative à la mise en service BA045D, BA050D.

Ex 防爆说明(XA)
Proline Promag 23 ATEX II3G Ex documentation
Ex-Dokumentation zur Betriebsanleitung BA045D, BA050D.
Ex documentation for the operating instruction BA045D, BA050D.
Documentation Ex relative à la mise en service BA045D, BA050D.

Ex 防爆说明(XA)
Proline Promag 10, 23, 50, 51, 53, 55 Information on the PED Special Documentation
Electromagnetic flowmeter

特殊资料(SD)
Change of Directives Special Documentation
Change of Directives

特殊资料(SD)
Proline Promag H, Sonderdokumentation Special documentation, Documentation special
Wichtiger Hinweis zum Dichtungsset Promag H, Important
Information concerning this Seals Set Promag H, Information
important concernant ce set de joint Promag H.

特殊资料(SD)
Proline Promag H Mounting existing process connections on new sensors Special documentation
Electromagnetic flow measuring system

特殊资料(SD)
Proline Promag 23 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 23 HART: 2.02.01 (DE/EN) / 2.03.01
(FR/IT)

生产商信息(MI)
Proline Promag 23 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 23 HART: 2.02.02 (DE/EN) / 2.03.02
(FR/IT)

生产商信息(MI)
Proline Promag 23 Manufacturer information regarding software updates (NE 53)
New software version:
Promag 23 HART: 2.02.03 (DE/EN) / 2.03.03
(FR/IT)

生产商信息(MI)
Brewery application: Wort Cooler, Application 1
Meas. point 1: flow measurement wort
Application 1: Magmeter

行业解决方案(SO)

英语
Brewery application: Bright beer buffer tanks, Application 1
Meas. point 1: flow measurement beer

行业解决方案(SO)

英语
Juice application: Raw juice, Application 1
Meas. point 1: flow measurement raw juice

行业解决方案(SO)

英语
Brewery application: Filling, Application 5
Meas. point 5: flow measurement filler

行业解决方案(SO)

英语
Dairy application: Pasteurisation, Application 3
Meas. point 2: flow measurement at the pasteuriser

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 1
Meas. point 1: flow measurement beer fitrate

行业解决方案(SO)

英语
Brewery application: Filling, Application 1
Meas. point 1: flow measurement to the filler

行业解决方案(SO)

英语
Dairy application: Milk reception, Application 3
Meas. point 2: flow measurement milk reception
Application 1: Promag

行业解决方案(SO)

英语
Juice application: Juice pasteuriser, Application 5
Meas. point 4: flow measurement pasteuriser

行业解决方案(SO)

英语
Dairy application: UHT unit, Application 3
Meas. point 2: flow measurement at the UHT

行业解决方案(SO)

英语
Juice application: Mixing batch, Application 1
Meas. point 1: flow measurement water

行业解决方案(SO)

英语
Brewery application: Filtration and Stabilisation, Application 2
Meas. point 2: flow measurement kieselgur

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 1
Meas. Point 1: flow measurement mash water

行业解决方案(SO)

英语
Dairy application: Milk and fat standardisation, Application 1
Meas. point 1: flow measurement of milk and cream

行业解决方案(SO)

英语
Dairy application: CIP unit, Application 2
Meas. point 2: flow measurement concentrate station

行业解决方案(SO)

英语
Chemicals: Waste Feed
PROline Promag successful application

行业解决方案(SO)

英语
Brewery application: Yeast propagation, Application 1
Meas. point 1: flow measurement yeast
Application 1: Magmeter

行业解决方案(SO)

英语
Brewery application: CIP unit, Application 2
Meas. point 2: flow measurement concentrate station

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 2
Meas. point 2: flow measurement wort

行业解决方案(SO)

英语
Brewery application: CIP unit, Application 1
Meas. point 1: flow measurement CIP-feed

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 15
Meas. Point 13: flow measurement mash filter

行业解决方案(SO)

英语
Brewery application: High Gravity unit, Application 1
Meas. point 1: flow measurement beer

行业解决方案(SO)

英语
Dairy application: Butter processing, Application 6
Meas. point 4: flow measurement of salt solution

行业解决方案(SO)

英语
Juice application: CIP unit, Application 2
Meas. point 2: flow measurement concentrate station

行业解决方案(SO)

英语
Juice application: Mixing continuous, Application 1
Meas. point 1: flow measurement water

行业解决方案(SO)

英语
Dairy application: Cheese processing, Application 3
Meas. point 2: dosing of culture

行业解决方案(SO)

英语
Juice application: Sugar dissolving, Application 1
Meas. point 1: flow measurement water

行业解决方案(SO)

英语
Brewery application: Brewhouse, Application 10
Meas. point 8: flow measurement wort
Application 2: Magmeter

行业解决方案(SO)

英语
Brewery application: Fermentation and Maturation, Application 15
Meas. point 12: flow measurement during blending

行业解决方案(SO)

英语
Dairy application: CIP unit, Application 1
Meas. point 1: flow measurement CIP-feed

行业解决方案(SO)

英语
Juice application: CIP unit, Application 1
Meas. point 1: flow measurement CIP-feed

行业解决方案(SO)

英语
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug
Pomiary przeplywu cieczy, pary i gazow. Oferta produktow i uslug

实际应用(FA)

11/13

波兰语
Flow measurement in utilities - for the US Market
Energy management in your hands - customized solutions for
compressed air, gas, steam and water

竞争力手册(CP)

12/10

英语
Modern measurement on filling machines
Filling, cleaning and sterilization

竞争力手册(CP)

07/10

英语
EDD Single, PDM_HART_FL_Promag23_0x0046_0x01_0x01, 12.11.2018 (Flow, Promag, 0x0046)
HART,
PDM Version: 6.0 SP5

Electronic Data Description (EDD)

1.00.00

Language neutral
DTM Single, Promag_23_V2_00_00___V2_01_00, 23.10.2020 (Flow, Promag, 0x0046)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
DTM Single, Promag_23_V2_02_00___V2_03_00, 23.10.2020 (Flow, Promag, 0x0046)
HART,
DeviceCare Version: 1.07.00
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.4.188.39

Language neutral
Promag 23
产品型号: 23H-, 23P-

EU Declaration

德语 , 英语 , French
Promag 23
产品型号: 23H-, 23P-

EU Declaration

德语 , 英语 , French
Promag 23
产品型号: 23H-, 23P-
一致性声明编号: PTB 00 ATEX 2078

EU Declaration

德语 , 英语 , French
Promag 23
产品型号: 23P-, 23H-
地区/国家: Canada
认证机构: CSA

Explosion Protection

英语
Promag 23
产品型号: 23P-, 23H-
地区/国家: Canada
认证机构: CSA
类别: I/2/A,B,C,D/, II,III/1/E,F,G/
保护: DIP, NI

Explosion Protection

英语
Promag 23
产品型号: 23P-, 23H-
地区/国家: USA
认证机构: FM
类别: I/2/A,B,C,D/
保护: NI

Explosion Protection

英语
Promag 23
产品型号: 23P-, 23H-
地区/国家: USA
认证机构: FM
类别: I/1/A,B,C,D/
保护: IS

Explosion Protection

英语
Promag 23
产品型号: 23P-, 23H-
地区/国家: Europe (ATEX)
认证机构: PTB
类别: II 2 G
保护: EEx ia

Explosion Protection

德语 , 英语
Promag 10, Promag 23, Promag 50, Promag 53, Promag 55
产品型号: 10H-, 23H-, 50H-, 53H-, 55H-
地区/国家: USA
认证机构: 3-A Sanitary Standards

Hygienic Equipment

英语
Promag 53, Promag 50, Promag 10, Promag 23
产品型号: 53H-, 50H-, 10H-, 23H-
地区/国家: Europe
认证机构: TNO

Hygienic Equipment

英语
Dosimag, Promag H, Dosimag OEM, Promag 10, Promag 23, Promag 50, Promag 53, Promag 55
产品型号: O5H2B-, 5H5B-, 5H1B-, 5H3B-, 50H-, 53H-, 5H2B-, 55H-, O5H1B-, DDA-, 5SH-, 5RH-, 5H-, 5DH-, 5CH-, 5BH-, 23H-, 10H-
地区/国家: International
认证机构: DTU

Hygienic Equipment

英语
Promag 53, Promag 50, Promag 35, Promag 23, Promag 10
产品型号: 50W-, 53P-, 53W-, 53H-, 50P-, 50H-, 10P-, 10H-, 10W-, 23H-, 35S-, 23P-
地区/国家: Poland

Pressure Equipment

英语 , 波兰语
Promag 10, Promag 23, Promag 50, Promag 51, Promag 53, Promag 55
产品型号: 55S-, 55H-, 53W-, 53P-, 53H-, 51W-, 51P-, 50W-, 50P-, 50L-, 50H-, 50D-, 23P-, 23H-, 10W-, 10P-, 10L-, 10H-, 10D-
地区/国家: Kazakhstan
认证机构: MEMST
证书号: GOST-12129

Metrology

俄语

显示更多
显示更少

附件/备件

???显示为PDF???

搜索

过滤

Order code

Specification

2
- Nr 2 Order code 50094004

  变送器数据模块

  Kit T-DAT Transmitter Data Chip

  显示详细信息隐藏详细信息
5
- Nr 5 Order code 50103527

  72/73/92F 盲盖

  Kit cover 72/73/92F blind version

  显示详细信息隐藏详细信息
10
- Nr 10 Order code 50096840

  10个 M20x1,5 缆塞

  Kit 10 cable glands M20x1,5

  显示详细信息隐藏详细信息
- Nr 10 Order code 50098036

  10个 M20x1.5 防爆缆塞

  Kit 10 cable glands M20x1.5 Ex

  显示详细信息隐藏详细信息
9
- Nr 9 Order code 50097147

  接地端/盖子锁紧扣

  10/1YH/23/65/72/73/91W/92F/8FF/8FE/8CM

  显示详细信息隐藏详细信息
14
- Nr 14 Order code 50098020

  安装螺丝及安装附件

  Usage: 10/23/50/51/53/55 Sensor: D/E/H/L/P/S/W

  显示详细信息隐藏详细信息
15
- Nr 15 Order code 50098021

  垫圈

  显示详细信息隐藏详细信息
- Order code 71129286

  特殊螺丝M6

  M6x16/5,0 6kt, ISO4017 A2

  显示详细信息隐藏详细信息
- Order code DKH-

  Promag H安装组件 DKH

  A set includes 2 process connections and 2 seals.

  显示详细信息隐藏详细信息
- Order code DK5G-

  密封圈组件

  显示详细信息隐藏详细信息
- Order code DK5HM-

  墙装式安装组件 DK5HM

  显示详细信息隐藏详细信息
- Order code DK5HW-

  焊接组件 DK5HW

  显示详细信息隐藏详细信息
- Order code DK5HA-

  适配器组件 DK5HA

  Replacement of sensor Promag A or Promag H DN 25. The set includes 2 adapters and 2 seals. For dimensions refer to the technical documentation.

  显示详细信息隐藏详细信息
- Order code DK5HR-

  接地环 DK5HR

  The grounding ring set includes 2 grounding rings

  显示详细信息隐藏详细信息
- Order code FXA193-

  通讯接口 FXA193

  The service interface connects the service port of Proline and ToF devices with the serial interface RS 232C (9 pin.) of a personal computer. Contents of delivery: - Serviceinterface with RS 232C connection cable (9 pin.) - FXA "USB" cable, the additional power supply for FXA193 from USB-port of the PC. - Service Softw.ToF Tool-Fieldtool Package

  显示详细信息隐藏详细信息

显示更多
显示更少

替代产品

F

L

E

X
Proline Promag H 200 / 5H2B

该流量计采用回路供电技术，能测量最小流量，极小流量测量专家
更多信息

价格核算中…

暂时无价格信息

登录后显示价格

Price on request

from CHF ??.-

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

Promag 23H

特征和规格

Details

测量原理

产品标题

传感器特点

公称口径范围

最大测量误差

测量范围

最大过程压力

介质温度范围

环境温度范围

防护等级

显示/操作

输出

数字通信

防爆认证

文档/手册/软件

附件/备件

替代产品

Proline Promag H 200 / 5H2B
