产品规格参数
-
测量范围
Trace: 0 to 5 mg/l HOCl
Standard: 0 to 20 mg/l HOCl
High: 0 to 200 mg/l HOCl -
过程温度
0 to 55 °C (32 to 130 °F), non-freezing
-
过程压力
Max. 1 bar (max. 14.5 psi)
-
Measuring method
Closed, membrane covered measuring cell
Reduction of free chlorine at the cathode
应用领域

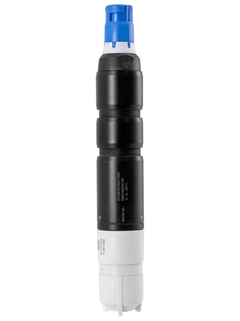

Memosens CCS51D余氯传感器坚固耐用,维护量低。传感器在饮用水、池水和过程水中进行高精度测量,长期稳定性高;即使在小流量条件下也能稳定监测消毒过程。余氯传感器响应时间短,确保过程控制高效和过程安全。CCS51D采用Memosens数字式技术,具有最高过程和数据完整性,且操作简单。
Memosens CCS51D余氯传感器满足撬装设备商和最终用户的要求。它能够可靠测量:
饮用水:确保可靠消毒
过程水:确保卫生、安全的产品袋装和瓶装方式
公用工程:检测是否存在余氯
池水:高效投加消毒剂
优势
满足各类应用的合适传感器:从痕量测量至余氯浓度不超过200 mg/l。
响应时间短(t90 < 25秒),高精度显示过程状态,能够及时采取措施应对过程变化和高效进行过程控制。
更高过程安全性:精准且长期稳定的测量实现永久过程监测,灵活按需调节消毒剂浓度。
覆膜法传感器维护量低,同比色法测量系统相比,测量点的使用成本显著降低。
传感器更换快速便捷,正常工作时间更长:实验室预标定传感器,现场即插即用。
与Liquiline多参数变送器配套使用,能够同时测量其他相关水分析参数,例如pH和ORP。
演示视频
-
Memosens将测量值转换成数字信号,并通过非接触感应传输方式将信号发送至变送器。视频介绍了Memosens如何优化过程控制和维护。

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
老产品
-
测量原理
余氯
-
应用
Ensuring reliable disinfection in drinking water
Process water
Dosing disinfectant efficiently in pool water
Detect the absence or presence of free chlorine in Utilities
Guarantee food safety and provide hygienic packaging and bottling -
特点
Amperometric measurement of dissolved free chlorine
-
测量范围
Trace: 0 to 5 mg/l HOCl
Standard: 0 to 20 mg/l HOCl
High: 0 to 200 mg/l HOCl -
Measuring method
Closed, membrane covered measuring cell
Reduction of free chlorine at the cathode -
设计
Closed amperometric 2-electrode measuring cell with PVDF membrane
-
材质
Sensor shaft: POM
Membrane: PVDF
Membrane cap: PVDF
Sealing ring: FKM -
外形尺寸
Diameter: 25 mm (0.98 inch)
Length: 161 mm (6.34 inch) -
过程温度
0 to 55 °C (32 to 130 °F), non-freezing
-
过程压力
Max. 1 bar (max. 14.5 psi)
-
温度传感器
10k NTC integrated (Memosens)
-
连接
Inductive, digital connection head with Memosens
