Proline Promass S 300
科里奥利质量流量计

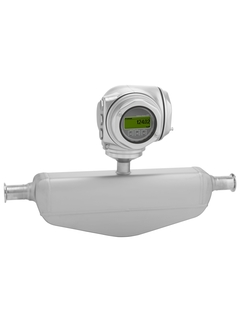

科里奥利质量流量计 - Proline Promass S 300 ©Endress+Hauser

Proline Promass S 300 for the food & beverages industries

科氏力流量测量原理

  • 科里奥利质量流量计 - Proline Promass S 300

流量计易清洁，带自排空单测量管系统，搭配超紧凑型一体式变送器

Promass S采用先进的卫生型设计， 适用于要求最佳清洁能力的食品和饮料行业中的应用场合。自排空的单测量管系统能够进行敏感流体测量。与一体式变送器配套使用，Promass S 300操作灵活，系统集成便捷：在仪表的同一侧接线、远程显示、改进的连接方式。内置Heartbeat Technology (心跳技术)，确保过程始终安全。

Xpert选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 最大测量误差

      Mass flow (liquid): ±0.10 %
      Volume flow (liquid): ±0.10 %
      Mass flow (gas): ±0.50 %
      Density (liquid): ±0.0005 g/cm³

    • 测量范围

      0 to 70 000 kg/h (0 to 2570 lb/min)

    • 介质温度范围

      –50 to +150 °C (–58 to +302 °F)

    • 最大过程压力

      PN 40, Class 150, 20K

    • 接液部件材质

      Measuring tube: 1.4435 (316L)
      Connection: 1.4435 (316L); 1.4404 (316/316L)"

Loading alternative products

快速选择

从我们建议的选项中选择
售价
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

8S3B
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 高级数据管理仪Memograph M RSG45 高级数据管理仪Memograph M RSG45
    • F
    • L
    • E
    • X

    Memograph M RSG45

    保存、显示、分析和通信

    价格核算中…
    暂时无价格信息
    from CHF 803.-
  • 过程变送器RMA42的产品示意图 过程变送器RMA42的产品示意图
    • F
    • L
    • E
    • X

    RMA42
    过程变送器，带控制单元

    通用变送器，回路供电，一台设备内含隔离栅和限位开关！

    价格核算中…
    暂时无价格信息
    from CHF 803.-

  • 优势

    • 高过程安全性：自排空测量管设计，易清洗

    • 较少过程测量点：多参数测量(流量、密度、温度)

    • 节省安装空间：无前/后直管段长度要求

    • 完整查看过程信息和诊断信息：提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多样性：用户自定义输入/输出功能

    • 自带验证功能：内置Heartbeat Technology (心跳技术)

  • 应用领域

    • 测量原理不受流体物理特性的影响(例如：粘度和密度)

    • 卫生型应用条件下要求最佳清洁能力的专用流量计

    仪表特点

    • 多种卫生型过程连接

    • 3A认证和EHEDG认证

    • CIP/SIP清洗后能够快速恢复

    • 一体式卫生型双腔室外壳，IP69，最多带 3 路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter.
    Dedicated to applications requiring optimal cleanability under hygienic conditions.

  • 传感器特点

    Increased process safety – easily cleanable and fully self-drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Large range of hygienic process connections. 3-A and EHEDG conform. Fast recovery from CIP/SIP.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 8 to 50 (⅜ to 2")

  • 接液部件材质

    Measuring tube: 1.4435 (316L)
    Connection: 1.4435 (316L); 1.4404 (316/316L)"

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

  • 最大测量误差

    Mass flow (liquid): ±0.10 %
    Volume flow (liquid): ±0.10 %
    Mass flow (gas): ±0.50 %
    Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • 最大过程压力

    PN 40, Class 150, 20K

  • 介质温度范围

    –50 to +150 °C (–58 to +302 °F)

  • 环境温度范围

    Standard: –40 to +60 °C (–40 to +140 °F)
    Option: –50 to +60 °C (–58 to +140 °F)

  • 传感器外壳材质

    1.4301 (304), corrosion resistant

  • 变送器外壳材质

    AlSi10Mg, coated; stainless steel for hygenic transmitter design

  • 防护等级

    IP66/67, type 4X enclosure
    IP69

  • 显示/操作

    4-line backlit display with touch + control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA WirelessHART
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Double pulse output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA

  • 电源

    DC 24 V
    AC 100 to 230 V
    AC 100 to 230 V / DC 24 V (non-hazardous area)

  • 防爆认证

    ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex

  • 产品安全性

    CE, C-tick, EAC marking

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, EHEDG, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter.
    Dedicated to applications requiring optimal cleanability under hygienic conditions.

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Easy‐to‐clean, self‐drainable single‐tube system with a compact, easily accessible transmitter.
    Dedicated to applications requiring optimal cleanability under hygienic conditions.

  • 传感器特点

    Increased process safety – easily cleanable and fully self-drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Large range of hygienic process connections. 3-A and EHEDG conform. Fast recovery from CIP/SIP.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
    Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

  • 公称口径范围

    DN 8...50 (⅜...2")

  • 接液部件材质

    测量管：1.4435 (316L)
    连接部件：1.4435 (316L)、1.4404 (316/316L)

  • 测量变量

    质量流量、密度、温度、体积流量、校正体积流量、参考密度、浓度

  • 最大测量误差

    质量流量（液体）：±0.10 %
    体积流量（液体）：±0.10 %
    质量流量（气体）：±0.50 %
    密度（液体）：±0.0005 g/cm³

  • 测量范围

    0...70 000 kg/h (0...2570 lb/min)

  • 最大过程压力

    PN 40，Cl. 150，20K

  • 介质温度范围

    –50...+150 °C (–58...+302 °F)

  • 环境温度范围

    标准：–40...+60 °C (–40...+140 °F)
    可选：–50...+60 °C (–58...+140 °F)

  • 传感器外壳材质

    1.4301 (304)，耐腐蚀

  • 变送器外壳材质

    铝合金AlSi10Mg涂层；卫生型不锈钢变送器

  • 防护等级

    IP66/67，type 4X
    IP69

  • 显示/操作

    四行背光显示，触摸键操作（外部操作）
    通过现场显示屏和调试软件设置
    提供分离型显示单元

  • 输出

    3路输出：
    4...20 mA HART（有源/无源）
    4...20 mA WirelessHART
    4...20 mA（有源/无源）
    脉冲/频率/开关量输出（有源/无源）
    双脉冲输出（有源/无源）
    继电器输出

  • 输入

    状态输入
    4...20 mA输入

  • 数字通信

    HART、PROFIBUS PA、FOUNDATION Fieldbus、Modbus RS485、Profinet、Ethernet/IP、OPC-UA

  • 电源

    24 VDC
    100...230 VAC
    100...230 VAC / 24 VDC（非危险区）

  • 防爆认证

    ATEX、IECEx、cCSAus、NEPSI、INMETRO、EAC

  • 产品安全性

    CE认证、C-tick认证、EAC认证

  • 功能安全性

    功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

  • 计量认证和证书

    在认证标定装置上执行标定（符合ISO/IEC 17025标准）
    Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

  • 压力认证和证书

    PED、CRN

  • 材料证书

    3.1材料证书

  • 卫生型认证和证书

    3-A、EHEDG

  • 测量原理

    科里奥利质量流量

  • 传感器特点

    Increased process safety – easily cleanable and fully self-drainable tube design. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
    Large range of hygienic process connections. 3-A and EHEDG conform. Fast recovery from CIP/SIP.

  • 卫生型认证和证书

    cGMP

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 31
    • Nr 31 Order code 71323007

      电源组件

      Usage: Promag/Promass 300/500, Prosonic Flow/t-mass 300, transmitter housing, electronic compartment.

    • Nr 31 Order code 71323008

      电源组件

      Usage: Promag/Promass 300/500, Prosonic Flow/t-mass 300, transmitter housing, electronic compartment.

    • Nr 31 Order code 71323009

      电源组件

      Usage: Promag/Promass/Prosonic Flow/ t-mass 300/500 digital, Non-haz, Zone 2, transmitter housing, electronic compartment.

  • 33
  • 39
  • 34
  • 37
    • Nr 37 Order code 71323010

      模块盒, 300/500, Ex

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

    • Nr 37 Order code 71323011

      模块盒, 300, Non-haz

      Usage: transmitter housing, electronic compartment. Consists of: module cartridge incl. interconnection board.

  • 35
  • 46
  • 50
  • 45
    • Nr 45 Order code 71323073

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323074

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71327818

      接线端子组件

      Usage: transmitter housing Alu/hygienic, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 1x connection terminal 2-Pol., 1x connection terminal 3-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323075

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, FOUNDATION Fieldbus. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

    • Nr 45 Order code 71323076

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: 2x connection terminal 2-Pol.

    • Nr 45 Order code 71327819

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment. Option C = PROFIBUS DP, Modbus RS485. Consists of: 2x connection terminal 2-Pol., 1x connection terminal 4-Pol.

  • 49
    • Nr 49 Order code 71323079

      接线端子组件

      Usage: transmitter housing Alu/cast, connection compartment with remote display DKX001. Consists of: 1x connection terminal 4-Pol.

  • 20
    • Nr 20 Order code 71323016

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Promag/Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323017

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323018

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323019

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Non-haz. Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 20
    • Nr 20 Order code 71323020

      铝盖组件 玻璃视窗

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110.7x3.53 HNBR.

    • Nr 20 Order code 71323021

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover sight glass, Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 21
    • Nr 21 Order code 71323022

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 HNBR.

    • Nr 21 Order code 71323023

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 70
    • Nr 70 Order code 71323026

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast. Consists of: 10x O-Ring 110.7x3.53 HNBR.

    • Nr 70 Order code 71323027

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Consists of: O-Ring 110,7x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323028

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 HNBR.

    • Nr 22 Order code 71323029

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: cover Alu, O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323030

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: 10x O-Ring 117,1x3,53 HNBR.

    • Nr 74 Order code 71323031

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Prosonic Flow 500, transmitter housing Alu, Non-haz. Consists of: O-Ring 117,1x3,53 FVMQ, -50oC/-58oF.

  • 22
    • Nr 22 Order code 71323032

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 HNBR.

    • Nr 22 Order code 71323033

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu, Ex. Consists of: cover Alu, O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 74
    • Nr 74 Order code 71323036

      盖组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: 10x O-Ring 120,2x3,53 HNBR.

    • Nr 74 Order code 71323037

      盖组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing Alu/cast, Ex. Consists of: O-Ring 120,2x3,53 FVMQ, -50oC/-58oF.

  • 28
  • 76
  • 71
    • Nr 71 Order code 71323071

      界面密封圈组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface.

    • Nr 71 Order code 71323072

      界面密封圈组件

      Usage: Promass/Prosonic Flow/t-mass 300, Promass/Prosonic Flow 500, transmitter housing/sensor or transmitter housing/wall mount. Consists of: O-Ring 88,50x3,53 FVMQ for interface, -50oC/-58oF.

    • Nr 71 Order code 71368491

      接口垫圈

      Usage: transmitter housing/sensor. Consists of: 5x O-Ring 88,50x3,53 HNBR for interface, 5x gasket EPDM for interface.

  • 11
    • Nr 11 Order code 71368488

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71368489

      保护壳

      Usage: transmitter housing Alu/hygienic, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323081

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option A = HART, PROFIBUS PA, PROFIBUS DP, Modbus RS485, FOUNDATION Fieldbus. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

    • Nr 11 Order code 71323082

      保护盖组件

      Usage: transmitter housing Alu/cast, connection compartment. Option B = EtherNet, PROFINET. Consists of: Connection compartment protective cover, display carrier, 2x screw M4x10.

  • 87
    • Nr 87 Order code 71343505

      防护外壳组件

      Usage: Promag/Promass/Prosonic Flow/t-mass 300, Promag/Promass/Prosonic Flow 500, transmitter housing. Consists of: weather protection cover 4404, installation material.

成功案例

  • 爱尔曼股份公司是德国最大的乳制品加工公司之一，它完全信任Picomag电磁流量计 爱尔曼股份公司是德国最大的乳制品加工公司之一，它完全信任Picomag电磁流量计

    功能强大，结构小巧

    功能强大，结构小巧——爱尔曼股份公司完全信任Endress+Hauser的Picomag电磁流量计

  • 水井中的废水取样 水井中的废水取样

    成功污水测量

    点击查看Hofbrauhaus Freising如何通过Promag L 400在空间狭小的水井中进行废水取样。

  • RONCHI MARIO S.p.A.灌装机，采用Endress+Hauser Dosimass流量计 RONCHI MARIO S.p.A.灌装机，采用Endress+Hauser Dosimass流量计

    智能灌装流量计

    智能灌装流量计：RONCHI MARIO研发出全新灌装机，采用Endress+Hauser新一代内置批处理功能的Dosimag和Dosimass流量计。

比较产品
本网站使用cookies。如果您继续使用本网站，即表明您同意我们使用cookies。 单击此处，了解更多信息
