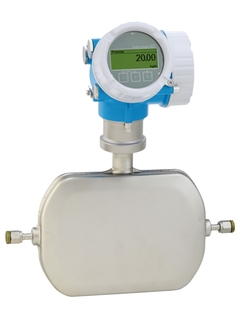

在过程应用中使用的科里奥利质量流量计 Proline Promass A 200 / 8A2B ©Endress+Hauser

在过程应用中使用的 Proline Promass A 200

Proline Promass A – 轻量级的极小流量测量专家

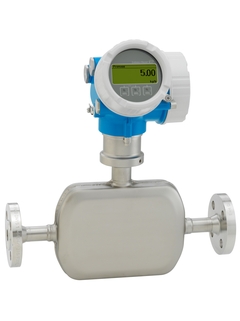

在过程应用中使用的科里奥利质量流量计 Proline Promass A 200 / 8A2B ©Endress+Hauser

在过程应用中使用的科里奥利质量流量计 Proline Promass A 200

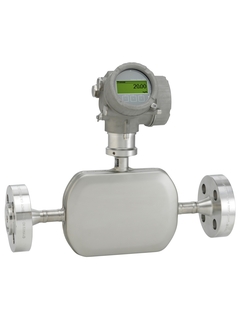

用于近海环境的科里奥利质量流量计 Proline Promass A 200 / 8A2B ©Endress+Hauser

用于近海环境的科里奥利质量流量计 Proline Promass A 200

科里奥利力流量测量原理

  • 在过程应用中使用的科里奥利质量流量计 Proline Promass A 200 / 8A2B
  • 在过程应用中使用的科里奥利质量流量计 Proline Promass A 200 / 8A2B
  • 用于近海环境的科里奥利质量流量计 Proline Promass A 200 / 8A2B

真正的两线制回路供电的流量计，用于极小流量的高精度测量。

一体式Promass A是在严苛工况下进行连续过程控制的理想选择。单测量管流量计带独一无二的自排空功能，能够高精度测量极小流量的液体和气体，也可以在高压条件下测量。采用经济的两线制回路供电技术和本安设计（Ex ia），即使在危险区中使用Promass A 200也具有最高操作安全性。Heartbeat Technology心跳技术确保过程始终安全。

此产品暂未在中国市场销售

快速选择

从我们建议的选项中选择
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

8A2B
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • 可选附加功能
请使用Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

  • 优势

    • 所需安装空间小：紧凑型轻量化传感器

    • 最高产品质量：自排空的测量管设计

    • 最高过程安全性：耐受腐蚀性环境条件，可以在内部可能发生堵塞的管道中测量

    • 接线方便：仪表配备独立接线腔

    • 操作安全：配备带触摸键操作的背光显示屏，操作时无需打开仪表

    • 带自校验功能：采用Heartbeat Technology（心跳技术）

  • 应用领域

    • 测量原理不受流体物理特性的影响（例如粘度或密度）

    • 适用于化工行业应用中的极小流量测量

    仪表特点

    • 公称口径：DN 1...4 (1/24...1/8")

    • 最大过程压力：430.9 bar (6250 psi)

    • 最高介质温度：+205 °C (+401 °F)

    • 两线制回路供电技术

    • 坚固耐用的双腔室外壳

    • 工厂安全性：通过多项国际认证（SIL，防爆）


    查看 PCNE 中的技术文章

特征和规格

返回

Details

  • 测量原理

    科里奥利质量流量

  • 产品标题

    真正的两线制回路供电的流量计，用于极小流量的高精度测量。适用于化工行业应用中的极小流量测量。

  • 传感器特点

    所需安装空间小：紧凑型轻量化传感器。最高产品质量：自排空的测量管设计。最高过程安全性：耐受腐蚀性环境条件，可以在内部可能发生堵塞的管道中测量。公称口径：DN 1...4 (¹⁄₂₄...¹⁄₈")。最大过程压力为430.9 bar (6250 psi)。

  • 变送器特点

    仪表接线方便：配备独立接线腔。操作安全：配备带触摸键控制的背光显示单元，无需打开仪表操作。自校验：Heartbeat Technology（心跳技术）。两线制回路供电。双腔室外壳坚固耐用。

  • 公称口径范围

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • 接液部件材质

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • 最大测量误差

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 450 kg/h (0 to 16.54 lb/min)

  • 最大过程压力

    430.9 bar (6250 psi)

  • 介质温度范围

    -50 to 205 °C (-58 to 401 °F)

  • 环境温度范围

    -40 to 60 °C (-40 to +140 °F)

  • 传感器外壳材质

    Stainless steel, 1.4404 (316L)

  • 变送器外壳材质

    Stainless steel, CF-3M (316L, 1.4404)
    AlSi10MG, coated

  • 防护等级

    IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    4‐20 mA HART (passive)
    4‐20 mA (passive)
    Pulse/frequency/switch output (passive)

  • 输入

    None

  • 数字通信

    HART, PROFIBUS PA, FOUNDATION Fieldbus

  • 电源

    DC 18 to 35 V (4‐20 mA HART with/without
    pulse/frequency/switch)
    DC 18 to 30 V (20 mA HART, 4‐20 mA)
    DC 9 to 32 V (PROFIBUS PA)

  • 防爆认证

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • 产品安全性

    CE, C-TICK

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    ?{general_selection_prod_comp_text_-2107038162}

  • 传感器特点

    ?{general_selection_prod_comp_text_-625837727}

  • 变送器特点

    ?{general_selection_prod_comp_text_89050482}

  • 公称口径范围

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • 接液部件材质

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • 最大测量误差

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 450 kg/h (0 to 16.54 lb/min)

  • 最大过程压力

    430.9 bar (6250 psi)

  • 介质温度范围

    -50 to 205 °C (-58 to 401 °F)

  • 环境温度范围

    -40 to 60 °C (-40 to +140 °F)

  • 传感器外壳材质

    Stainless steel, 1.4404 (316L)

  • 变送器外壳材质

    Stainless steel, CF-3M (316L, 1.4404)
    AlSi10MG, coated

  • 防护等级

    IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    4‐20 mA HART (passive)
    4‐20 mA (passive)
    Pulse/frequency/switch output (passive)

  • 输入

    None

  • 数字通信

    HART, PROFIBUS PA, FOUNDATION Fieldbus

  • 电源

    DC 18 to 35 V (4‐20 mA HART with/without
    pulse/frequency/switch)
    DC 18 to 30 V (20 mA HART, 4‐20 mA)
    DC 9 to 32 V (PROFIBUS PA)

  • 防爆认证

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • 产品安全性

    CE, C-TICK

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, cGMP

  • 测量原理

    科里奥利质量流量

  • 产品标题

    Genuine loop-powered flowmeter for accurate measurement of lowest flow rates. Suitable for applications with smallest flow quantities in the chemical industry.

  • 传感器特点

    Space-saving installation – compact, lightweight sensor. Highest product quality – self-drainable measuring tube design in all line sizes. Optimum process safety – resistant to corrosive ambient conditions and internal clogging. Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈"). Process pressure up to 430.9 bar (6250 psi).

  • 变送器特点

    Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology. Loop-powered technology. Robust dual-compartment housing.

  • 公称口径范围

    DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")

  • 接液部件材质

    Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22

  • 测量变量

    Mass flow, density, temperature, volume flow, corrected volume flow, reference density

  • 最大测量误差

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

  • 测量范围

    0 to 450 kg/h (0 to 16.54 lb/min)

  • 最大过程压力

    430.9 bar (6250 psi)

  • 介质温度范围

    -50 to 205 °C (-58 to 401 °F)

  • 环境温度范围

    -40 to 60 °C (-40 to +140 °F)

  • 传感器外壳材质

    Stainless steel, 1.4404 (316L)

  • 变送器外壳材质

    Stainless steel, CF-3M (316L, 1.4404)
    AlSi10MG, coated

  • 防护等级

    IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    4‐20 mA HART (passive)
    4‐20 mA (passive)
    Pulse/frequency/switch output (passive)

  • 输入

    None

  • 数字通信

    HART, PROFIBUS PA, FOUNDATION Fieldbus

  • 电源

    DC 18 to 35 V (4‐20 mA HART with/without
    pulse/frequency/switch)
    DC 18 to 30 V (20 mA HART, 4‐20 mA)
    DC 9 to 32 V (PROFIBUS PA)

  • 防爆认证

    ATEX, IECEx, cCSAus, INMETRO, NEPSI

  • 产品安全性

    CE, C-TICK

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

    Heartbeat Technology complies with the requirements for traceable verification according to ISO 9001:2008 – Section 7.6 a (TÜV attestation)

  • 压力认证和证书

    PED, CRN

  • 材料证书

    3.1 material

  • 卫生型认证和证书

    3-A, cGMP
