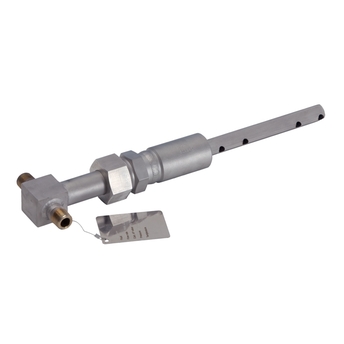

Deltatop DP62D

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (Pitot).

    Averaging pitot tube with 25,4mm diamond profile.

  • 传感器特点

    Insertion system.

    Pipe size DN100...2000 ; 4...80".

    Retractable version available.

    Bidirectional measurement.

    Compact or remote design.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 100...2000

    4" ... 80"

  • 最大测量误差

    typically 1% of calculated volume or mass.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • 测量范围

    200 ... 500'000m3/h

  • 最大过程压力

    PN6 ... 250

    Cl.300 ... 1500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (Pitot).

    Averaging pitot tube with 25,4mm diamond profile.

  • 传感器特点

    Insertion system.

    Pipe size DN100...2000 ; 4...80".

    Retractable version available.

    Bidirectional measurement.

    Compact or remote design.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 100...2000

    4" ... 80"

  • 最大测量误差

    typically 1% of calculated volume or mass.

  • 测量范围

    8.0 ... 17'500m3/h

  • 最大过程压力

    PN6 ... 250

    Cl.300 ... 1500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (Pitot).

    Averaging pitot tube with 25,4mm diamond profile.

  • 传感器特点

    Insertion system.

    Pipe size DN100...2000 ; 4...80".

    Retractable version available.

    Bidirectional measurement.

    Compact or remote design.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 100...2000

    4" ... 80"

  • 最大测量误差

    typically 1% of calculated volume or mass.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • 测量范围

    200 ... 200'000 m3/h

    1'000 ... 1'000'000 kg/h at 10bar/230°C

  • 最大过程压力

    PN6 ... 250

    Cl.300 ... 1500

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI
