Proline Promag H 10
电磁流量计

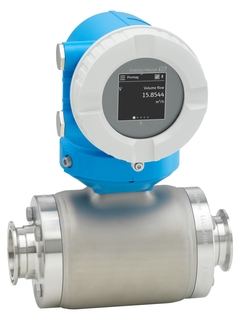

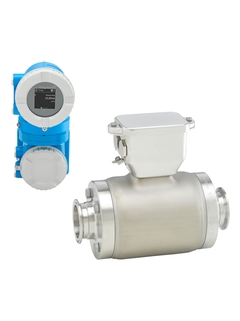

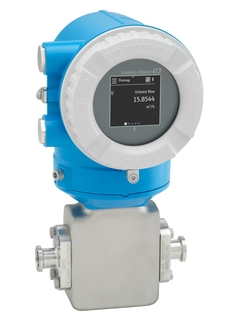

Proline Promag H 10电磁流量计，带Tri-Clamp卡箍，分体型变送器，适用于卫生应用场合 — Proline Promag H 10电磁流量计，分体型变送器，适用于卫生应用场合

Proline 10：简单巧妙

电磁流量测量原理

电磁流量计，适用于基本卫生应用场合，操作简单

Promag H传感器是食品与饮料、生命科学行业中卫生应用场合的理想选择。Promag H 10的软硬件设计均直观明了，在保证Endress+Hauser高品质的前提下，大大简化了仪表从设计到服务全生命周期内的每一步操作。Heartbeat Technology心跳技术保证测量的可靠性，延长仪表校准周期。

Lean选型

简易产品
轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

什么是FLEX产品选型

标准产品
测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

什么是FLEX产品选型

高端产品
功能丰富，适用范围广

仪表技术性能

选型便捷程度

什么是FLEX产品选型

定制产品
专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

什么是FLEX产品选型

FLEX产品选型	仪表技术性能	选型便捷程度
F L E X Fundamental选型完美胜任基本测量任务	仪表技术性能	选型便捷程度
F L E X Lean选型轻松应对关键工艺的测量挑战	仪表技术性能	选型便捷程度
F L E X Extended选型创新技术助力工艺流程优化	仪表技术性能	选型便捷程度
F L E X Xpert选型满足严苛工况的特殊测量要求	仪表技术性能	选型便捷程度特殊选型

获取FLEX产品选型的详细信息

选型

比较

此产品暂未在中国市场销售

产品规格参数
最大测量误差

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

测量范围

0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

介质温度范围

–20 to +150 °C (–4 to +302 °F)

最大过程压力

PN 40, Class 150, 20K

接液部件材质

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: aseptic molded seal (EPDM, FKM, silicone)

Loading alternative products

快速选择

从我们建议的选项中选择

售价

<%label%>
-- selected coding

-- selected label

99.999,00
<%label%>
如需查看其他非推荐选项，请使用 Configurator进行完整产品选型
<%feature%>
-- selected coding

-- selected label

99.999,00
<%feature%>
<%coding%>

<%label%>

99.999,00

如需查看其他非推荐选项，请使用 Configurator进行完整产品选型
Process Connection
<%coding%>

<%label%>

99.999,00

<%coding%>

<%label%>

99.999,00

<%message%>

5HBB

显示详细信息隐藏详细信息

显示详细信息

返回进行快速选择

<%feature%>

<%coding%>

<%label%>

添加到购物车

可选附加功能

请使用 Configurator进行完整产品选型

或

个性化配置

从所有可用选项中继续选择

配置

优势
安装灵活：提供多种卫生型过程连接
节能流量测量：无节流部件，无压损
免维护：无可移动部件
最优操控性：使用移动终端设备，安装SmartBlue app，直接触摸屏操作
调试简单高效：引导式仪表组态预设置和现场设置
带自校验功能：采用Heartbeat Technology心跳技术

应用领域
双向流量测量，完全不受压力、密度、温度和粘度的影响。
满足卫生应用场合的使用要求。
仪表特点
PFA内衬
不锈钢传感器外壳（3A认证、EHEDG测试）
接液部件材质能够耐受CIP/SIP工艺
支持HART或Modbus RS485系统集成
安装app，选配显示单元，操作灵活

特征和规格

测量原理

电磁
产品标题

Flowmeter for basic hygienic applications with easy-to-use operation concept.
For applications with sanitary requirements.
传感器特点

Flexible installation concept – numerous hygienic process connections. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP-/SIP-cleanable.
变送器特点

Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
System integration with HART, Modbus RS485. Flexible operation with app and optional display.
公称口径范围

DN 2 to 150 (¹⁄₁₂ to 6")
接液部件材质

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: aseptic molded seal (EPDM, FKM, silicone)
测量变量

Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected
conductivity
最大测量误差

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
测量范围

0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
最大过程压力

PN 40, Class 150, 20K
介质温度范围

–20 to +150 °C (–4 to +302 °F)
环境温度范围

–40 to +60 °C (–40 to +140 °F)
传感器外壳材质

1.4301 (304), corrosion resistant
变送器外壳材质

AlSi10Mg, coated
防护等级

Standard: IP66/67, type 4X enclosure
显示/操作

2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible
输出

4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
数字通信

HART, MODBUS RS485
电源

DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
防爆认证

CSA, GP
计量认证和证书

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
压力认证和证书

PED, CRN
材料证书

3.1 material
卫生型认证和证书

Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP

显示更多
显示更少

文档/手册/软件

下载类型

过滤

Proline Promag H 10
Electromagnetic flowmeter

技术信息(TI)
Proline Promag H 10
Electromagnetic flowmeter
HART

操作手册（BA）
Proline Promag H 10
Electromagnetic flowmeter
Modus RS485

操作手册（BA）
Proline Promag 10
Electromagnetic flowmeter
Modbus RS485

仪表参数 (GP)
Proline Promag 10
Electromagnetic flowmeter
HART

仪表参数 (GP)
Flowmeter Proline 10
Modbus RS485 transmitter
with electromagnetic sensor

Short Instruction (KA)

07/21

英语
Flowmeter Proline 10
HART transmitter
with electromagnetic sensor

Short Instruction (KA)

07/21

英语
Proline Promag H
Electromagnetic sensor

Short Instruction (KA)

07/21

英语
Replacing display module
Proline 10

安装指南(EA)
Replacing the electronic parts, non Ex/Exd/Z2
Proline 10

安装指南(EA)
Potting compound IP68
Promag 10, 400, 800 Remote Version, Promag 500, t-mass 500-digital

安装指南(EA)
Replacing Small parts
Promag 10, Promag, Promass 100, 500, CNG-, LNG-, LPGmass, Promag 400,
800 Index C, Prosonic Flow E 100, Prosonic Flow E Heat, Proson
ic Flow, t-mass 500-digital

安装指南(EA)
Replacing the electronics parts Exde
Proline 10

安装指南(EA)
Replacing cover, O-ring, seal housing for transmitter wall mounting and seal housing for the sensor side
Promag 10, Promag, Promass, Prosonic Flow 500, 500-digital, t-mass
500-digital

安装指南(EA)
Replacing the interface seal
Proline 10

安装指南(EA)
Replacing cover, seal cover
Proline 10

安装指南(EA)
Replacing Small Parts
Promag 10, 400, 500, Promag 800 Index B, Promag 800 Index C, Cubemass,
Promag, Promass, Prosonic Flow, t-mass 500-digital

安装指南(EA)
Replacing connection board
Promag 10, Promag, Promass 500

安装指南(EA)
Replacement of parts for the sensor connection housing, remote version
Promag 400, 800 Index C, Promag 10, 500, Promag, Promass, Prosonic Flow,
t-mass 500-digital

安装指南(EA)
Proline Promag 10
Heartbeat Verification + Monitoring application package
Modbus RS485

特殊资料(SD)
Display modules A400/A401/A402/A406/A407
Display with Bluetooth interface

特殊资料(SD)
Technical Documentation
Device Viewer

特殊资料(SD)
Proline Promag 10
Heartbeat Verification + Monitoring application package
HART

特殊资料(SD)
Proline 10 (e-book, Tablet version)
Flow measurement uncompromisingly simple

竞争力手册(CP)

07/21

英语
Proline 10 (e-book, PC version)
Flow measurement uncompromisingly simple

竞争力手册(CP)

07/21

英语
Proline 10
Durchflussmessung kompromisslos einfach

创新(IN)

07/21

德语
Proline 10
Flow measurement uncompromisingly simple

创新(IN)

07/21

英语
Proline 10
Misura di portata
semplice e senza compromessi

创新(IN)

07/21

意大利语
Proline 10
Mesure de débit d'une simplicité absolue

创新(IN)

03/21

French
DTM Single, Promag_10_5xBB_MR4-CDIS_FW_1_00_zz_Dev_Rev_1, 02.07.2021 (Flow, Promag 10, 0x6471)
Modbus RS485,

DeviceCare Version: 1.07.00

Field Xpert - SMT70 Version: 1.05.00

FieldCare Version: 2.15.00

Device Type Manager (DTM)

1.76.0.159

Language neutral
Faceplate Single, PRM_HART_FL_Promag10_0x1171_0x01_0x02, 01.07.2021 (Flow, Promag 10, 0x1171)
HART,

Plant Resource Manager Version: R4.03

Faceplate

1.00.00

Language neutral
Promag D, Promag P, Promag W, Promag H
产品型号: 5DBB-, 5HBB-, 5PBB-, 5WBB-
一致性声明编号: HE_01407_01.21
制造商规格: Heartbeat Technology

Manufacturer Declaration

德语 , 英语
Dosimag OEM, Ersatzteil, Promag 10, Promag 50, Promag 53, Promag 55, Promag H
产品型号: O5H2B-, O5H1B-, DKH-, DK5HB-, DK5G-, 5SH-, 5RH-, 5HBB-, 5H5B-, 5H3B-, 5H2B-, 5H1B-, 5DH-, 5CH-, 5BH-, 55H-, 53H-, 50H-, 10H-
一致性声明编号: HE_00404_05.17
制造商规格: Food hygiene, 1935/2004

Manufacturer Declaration

德语 , 英语
Dosimag, Dosimag OEM, Promag 10, Promag 50, Promag 53, Promag 55, Promag H
产品型号: DDA-, 5SH-, 5RH-, 5HBB-, 5H5B-, 5H3B-, 5H2B-, 5H1B-, 5DH-, 5CH-, 5BH-, 55H-, 53H-, 50H-, 10H-
一致性声明编号: HE_01001_04.18
制造商规格: Food hygiene

Manufacturer Declaration

德语 , 英语
Promag D, Promag H, Promag P, Promag W
产品型号: 5DBB-, 5HBB-, 5PBB-, 5WBB-
一致性声明编号: EU_00887_01.21

EU Declaration

德语 , 英语 , French
Dosimag OEM, Promag 10, Promag 50, Promag 53, Promag 55, Promag H
产品型号: O5H1B-, 5SH-, 5RH-, 5H5B-, 5H3B-, 5H2B-, 5H1B-, 5DH-, 5CH-, 5BH-, 55H-, 53H-, 50H-, 10H-, 5HBB-
一致性声明编号: EC_00714_04.18

EU Declaration

德语 , 英语
Promag H
产品型号: 5HBB-
一致性声明编号: EC_00858_01.20

EU Declaration

德语 , 英语 , French
Promag D, Promag H, Promag P, Promag W, Promass K
产品型号: 5DBB-, 5HBB-, 5PBB-, 5WBB-, 8KBB-
地区/国家: USA, Canada
认证机构: CSA

Ordinary Location Product Safety

英语

显示更多
显示更少

附件/备件
