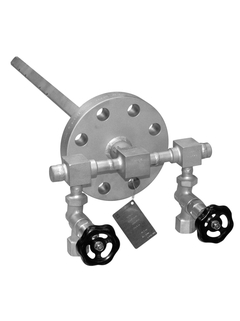

Deltatop DP63D

Calculated volume or mass flow measurement. dp primary element (Pitot).
Averaging pitot tube with 42mm diamond profile.

Insertion system.
Pipe size DN300...4000 ; 12...160".
Retractable version available.
Bidirectional measurement.
Compact or remote design.
Deltabar S/M differential pressure transmitter.

DN 300 ... 4000
12" ... 160"

typically 1% of calculated volume or mass.
Uncertainty of primary element excluding uncertainty of density or compensation.

2'000 ... 2'000'000 m3/h

PN6 ... 100
Cl.300 ... 600

Compact version:
-200°C ... 200°C
-328°F ... 392°F
Remote version:
-200°C ... 1000°C
-328°F ... 1832°F

Transmitter (Deltabar):
IP67
NEMA6P

Transmitter (Deltabar):
4-line display
3 push buttons
Quick setup
HistoROM

Transmitter (Deltabar):
4 ... 20 mA

Transmitter (Deltabar):
HART
PROFIBUS PA
FOUNDATION Fieldbus

Transmitter (Deltabar):
ATEX
FM
CSA
IEC
TIIS
NEPSI

Calculated volume or mass flow measurement. dp primary element (Pitot).
Averaging pitot tube with 42mm diamond profile.

Insertion system.
Pipe size DN300...4000 ; 12...160".
Retractable version available.
Bidirectional measurement.
Compact or remote design.
Deltabar S/M differential pressure transmitter.

DN 300 ... 4000
12" ... 160"

typically 1% of calculated volume or mass.

90 ... 100'000m3/h

PN6 ... 100
Cl.300 ... 600

Compact version:
-200°C ... 200°C
-328°F ... 392°F
Remote version:
-200°C ... 1000°C
-328°F ... 1832°F

Transmitter (Deltabar):
IP67
NEMA6P

Transmitter (Deltabar):
4-line display
3 push buttons
Quick setup
HistoROM

Transmitter (Deltabar):
4 ... 20 mA

Transmitter (Deltabar):
HART
PROFIBUS PA
FOUNDATION Fieldbus

Transmitter (Deltabar):
ATEX
FM
CSA
IEC
TIIS
NEPSI
