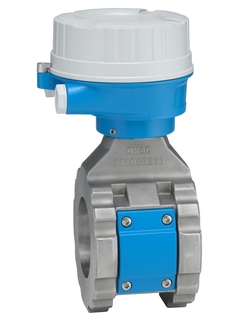

Proline Teqwave MW 500 —— 微波固体浓度计

Total solids measurement via microwave transmission

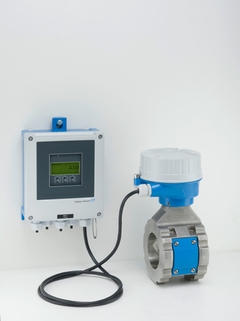

Total solids measurement for the water and wastewater industry, remote version with up to 4 I/Os.

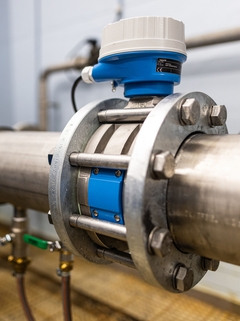

Ideal for total solids measurement, e.g. for sludge treatment in water/waste water treatment plants.

Polished tube – less maintenance
due to reduced adhesion. Fewer process measuring points – multivariable measurement (total solids, temperature, conductivity). Easy installation – proven sensor construction.
Repeatability (0.02%). Short installation length. Measuring up to 50% total solids content.

Full access to process and diagnostic information – numerous, freely combinable I/Os. Onboard load calculation – less effort needed in programming. Integrated verification – Heartbeat Technology.
Full access to process and diagnostic information – numerous, freely combinable I/Os. Onboard load calculation – less effort needed in programming. Integrated verification – Heartbeat Technology.

DN 50 to 300

Inline installation

Measuring tube:
Stainless steel 1.4408 according to DIN EN 10213, CF3M according to ASME A351)
Temperature sensor:
1.4435 (316L)

0 to 500 g/l (0 to 31 lb/ft3), 0 to 50 %TS

PN 16, Class 150, 10K

Wafer

IP66/67, Type 4X enclosure

4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible

4-20mA HART, Modbus RS485

AC 100 to 240 V / AC/DC 24 V

CE Marking, UKCA Marking

ATEX, IECEx, CSA C/US

3.1 material

Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
