产品规格参数
-
测量范围
0.000 to 5000 PAHphe
-
过程温度
-5 to 55 °C (20 to 130 °F)
-
过程压力
10 bar abs. (just the sensor)
6 bar abs. (combination sensor and assembly)
应用领域

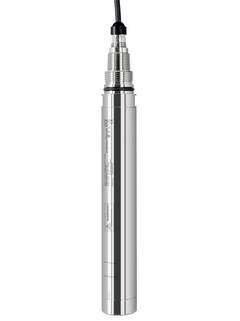

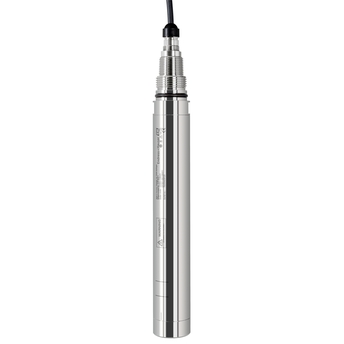

The rugged and low-maintenance Memosens CFS51 fluorescence sensor measures polycyclic aromatic hydrocarbons (PAHs) in accordance with MEPC.259(68) and MEPC.340(77). Thanks to the practical solid-state reference, you can readjust and calibrate the sensor onboard the vessel - supported by user-friendly guidance in the transmitter menu. This makes the calibration procedure simple and error-free, and you benefit from an exceptionally long factory maintenance interval of 4 years.
Memosens CFS51 measures PAHs with high accuracy in both the inlet and outlet of marine exhaust gas cleaning systems (scrubbers) and is suitable for all discharge water flow rates.
The sensor is certified by the following approval bodies:
DNV (Det Norske Veritas)
LR (Lloyd’s Register)
BV (Bureau Veritas)
ABS (American Bureau of Shipping)

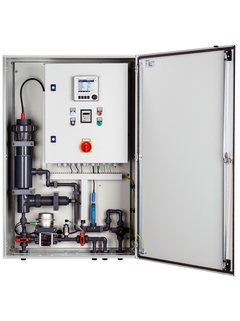

For washwater monitoring in EGCS, the PAH sensor is also available as an approved all-in-one solution including pH and turbidity measurement.
优势
The uniquely long factory maintenance interval saves you a lot of costs and organizational effort

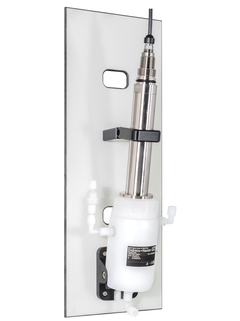

The optionally available flow assembly holds the sensor at the ideal installation angle to minimize disturbing influences caused by air bubbles. In addition, it can be tilted for quick mounting and dismounting of the sensor.
DNV approved integrated turbidity correction in the range of 0-50 FNU
High material compliance of sensor and flow assembly according to IACS E10 (flame retardancy)

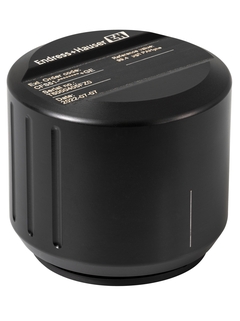

The solid-state reference makes calibration very easy for the end user - and you can completely eliminate the need for toxic phenantrene, which increases safety for your employees and the environment
The suitability of the solid-state reference for calibration and readjustment of the PAH sensor on board was confirmed by DNV
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
Loading alternative products
成功案例
-
-
