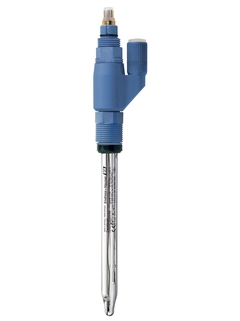

模拟式pH电极
Ceraliquid CPS41
液体的 pH值可通过电位法测量原理进行计算，该视频介绍了这种测量原理是如何工作的
玻璃电极，用于介质成份快速变化或低电导率应用场合
Ceraliquid CPS41是高性能模拟式电极，用于化工行业恶劣工况、低电导率和高浓度有机溶剂的介质测量。即使在介质成份快速变化的应用场合中，电极的快速响应也能确保高过程安全性。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量范围
pH 0...14
-
过程温度
最高135°C (274°F)
-
过程压力
最大10bar (145psi)
-
附加组件
-
优势
持续的KCL电解液补充，以及独立的参比引线，使电极具备抗中毒特性
采用KCl电解液，可测量极低电导率 (= 0.1 µS/cm) 介质
适用于CIP和SIP清洗
完美适用于介质快速变化的测量场合：液态KCl电解液和陶瓷默片结合，可以缩短响应时间
-
应用领域
适用于低电导率介质、高浓度有机溶剂或醇类介质以及介质快速变化的测量场合：
化工行业
电厂，如：锅炉进水
生命科学领域，如：注射用水
取得 ATEX, FM 和 CSA认证，适用于防爆危险区域
