模拟式非玻璃pH电极

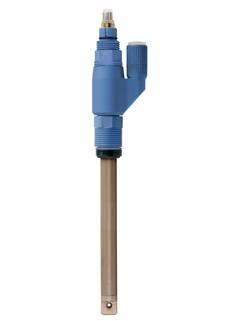

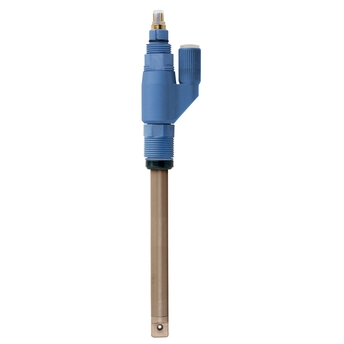

Tophit CPS441
液体的 pH值可通过电位法测量原理进行计算，该视频介绍了这种测量原理是如何工作的
ISFET电极，用于化工、生命科学和食品行业
Tophit CPS441是高性能模拟式电极，用于低电导率和高浓度有机溶剂的介质测量。即使在介质成份快速变化的应用场合中，电极的快速响应也能确保高过程安全性。其不会破裂的传感器杆确保了介质安全。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量范围
pH 0...14
-
过程温度
-15...135°C
(5...275°F) -
过程压力
最大10 bar/100°C (145 psi/212°F)
-
附加组件
-
优势
抗破裂或裂缝，提高测量安全性
持续的KCL电解液补充，以及独立的参比引线，使电极具备抗中毒特性
适用于消毒过程
标定周期长，维护量低
-
应用领域
用于高浓度有机溶剂或低电导率介质测量：
加压版电极用于化工行业中的沉淀剂和分散剂测量
电厂，如：锅炉进水
生命科学领域，如：注射用水
取得了 3A, ATEX, FM 和 CSA 认证，可用于卫生型测量场合或防爆危险区域
文档/手册/软件
-
TopHit CPS 441 and CPS441D
ISFET sensor with liquid KCI reference electrode for pH measurement in
blocking media. Analog or digital sensors with Memosens technology技术信息(TI) -
ISFET pH电极
操作手册
ISFET pH电极
操作手册（BA） -
Ex Safety Instructions CPS 4XX
Sicherheitshinweise für explosionsgefährdete Bereiche.
Safety instructions for hazardous areas.
Conseils de sécurité pour zones explosibles.Ex 防爆说明(XA) -
Analog pH/ORP sensors
Safety instructions for electrical apparatus in explosion-hazardous
areas
Safety Instructions
Safety instructions for electrical apparatus in explosion-hazardous
areasEx 防爆说明(XA) -
ISFET sensors pH
Safety instructions for electrical apparatus in explosion-hazardous
areas
Safety Instructions
Safety instructions for electrical apparatus in explosion-hazardous
areasEx 防爆说明(XA) -
Manufacturer Declaration
TSE/BSE free
证书(ZE) -
CPS41/41D/42/441
Adapting existing KCl supplies to new CPS4x/CPS441
Umstellen bestehender KCl-Zufuhr auf neue CPS4x/CPS441特殊资料(SD) -
SD Tophit
Kurzanleitung für ISFET-Sensoren / Short Instructions for ISFET sensors
特殊资料(SD) -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
竞争力手册(CP)08/15日语 -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
竞争力手册(CP)04/15英语 -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.竞争力手册(CP)04/11英语 -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidance竞争力手册(CP)02/12英语 -
TopHit
产品型号: CPS441-, CPS471-, CPS491-
一致性声明编号: EC_00625_01.18EU Declaration德语 , 英语 , fr -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
产品型号: CPS491-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91D-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CPS16D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: EAEC RU D-DE.AD07.B.01362/19Miscellaneous俄语 -
TopHit, Sensor, PuriSys, OrbiSint, OrbiPore, OrbiPac, Memosens, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Chlorine, Liquiline M, Liquiline, CeraTex, Ceramax, CeraLiquid, CeraGel
产品型号: CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPS42D-, CPS42-, CPS41E-, CPS41D-, CPS41-, CPS341D-, CPS31D-, CPS31-, CPS171D-, CPS16D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS71E-, CPS72-, CPS72D-, CPS76D-, CPS77D-, CPS91-, CPS91E-, CPS92-, CPS92D-, CPS96D-, CPS97D-, CCM223-, CCM253-, CM14-, CM42-, CM442-, CM442R-, CM444-, CM444R-, CM448-, CM448R-, CM44P-, CM72-, CM82-, COM223-, COM223F-, COM253-, COM253F-, CPF201-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPM223-, CPM253-, CPS11-, CPS11D-, CPS11E-, CPS12-, CPS12D-, CPS12E-, CPS13-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: EAEC D-DE.AD07.B.01363/19Miscellaneous俄语 -
TopHit, Sensor, OxyMax W, OrbiTex, OrbiSint, OrbiPore, Memosens, Liquiline M, InduMax P, InduMax H, ConduMax W, ConduMax H, CeraLiquid, CeraGel
产品型号: CPS42-, CPS43-, CPS441-, CPS441D-, CPS471-, CPS471D-, CPS491-, CPS64-, CPS72-, CPS72D-, CPS91-, CPS91D-, CPS92-, CPS92D-, CPS96D-, CPS41-, CPS21-, CPS16D-, CPS13-, CPS12D-, CPS12-, CPS11D-, CPS11-, COS51D-, CM42-, CLS54-, CLS50D-, CLS50-, CLS16D-, CLS15D-
地区/国家: Russia (TR CU)
认证机构: EAC
保护: Ex ia IIC T6 Ga, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T4 Ga, Ex ib [ia Ga] IIC T6...T4 GaExplosion Protection俄语 -
InduMax P, Liquiline M, Memosens
产品型号: CPS41-, CPS41D-, CPS42-, CPS42D-, CPS441-, CPS441D-, CPS471-, CPS471D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS72-, CPS72D-, CPS76D-, CPS91-, CPS91D-, CPS92-, CPS92D-, CPS96D-, CTS1-, CYK10-, CYP01D-, CYP02D-, OPS171D-, CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-, CLS21-, CLS21D-, CLS50-, CLS50D-, CLS82D-, CM42-, COS21D-, CPS171D-, CPS16D-, CPS13-, CPS12D-, CPS12-, CPS11D-, CPS11-, CPF82D-, CPF82-, CPF81D-, CPF81-, COS51D-, COS22D-
地区/国家: USA
认证机构: FMExplosion Protection英语 -
TopHit, Sensor, OrbiSint, OrbiPore, OrbiPac, Memocheck, InduMax P, InduMax H, ConduMax W, ConduMax H, CeraLiquid, CeraGel
产品型号: CYP03D-, CTS1-, CPS92-, CPS91-, CPS72-, CPS71-, CPS491-, CPS471-, CPS441-, CPS42-, CPS41-, CPS13-, CPS12-, CPS11-, CPF82-, CPF81-, CLS54-, CLS50-, CLS21-, CLS16-, CLS15-, CLS13-, CLS12-
地区/国家: Canada
认证机构: CSAExplosion Protection英语 -
TopHit, Sensor, OxyMax W, OxyMax H, OrbiTex, OrbiSint, OrbiPore, Memosens, Liquiline M, InduMax P, InduMax H, ConduMax W, ConduMax H, CeraLiquid, CeraGel
产品型号: CPS42-, CPS42D-, CPS43-, CPS441-, CPS441D-, CPS471-, CPS471D-, CPS491-, CPS491D-, CPS64-, CPS71-, CPS71D-, CPS72-, CPS72D-, CPS76D-, CPS91-, CPS91D-, CPS92D-, CPS96D-, CPS41D-, CPS41-, CPS21-, CPS16D-, CPS13-, CPS12D-, CPS12-, CPS11D-, CPS11-, COS81D-, COS51D-, COS22D-, CM42-, CLS82D-, CLS54-, CLS50D-, CLS50-, CLS21D-, CLS16D-, CLS15D-
地区/国家: Russia (TR CU)
认证机构: EAC
保护: Ex ia IIC T3 Ga, Ex ia IIC T4 Ga, Ex ia IIC T6 Ga, Ex ib [ia Ga] IIC T4 Gb, Ex ib [ia Ga] IIC T6 GbExplosion Protection俄语 -
InduMax H, Memosens, SmarTec, SmarTec S, TopHit, UniFit H
产品型号: CPS77D-, CPS47D-, CPS471D-, CPS471-, CPS441D-, CPS441-, CPA842-, CLS82D-, CLS54D-, CLS54-, CLD18-, CLD134-, CPS61E-
地区/国家: USA
认证机构: 3-A Sanitary StandardsHygienic Equipment英语
