产品规格参数
-
测量范围
0 to 10 mg/l N
0 to 50 mg/l N
0 to 200 mg/l N -
过程温度
4 to 40 °C (39.2 to 104 °F)
-
过程压力
At atmospheric pressure, < 0.2 bar
应用领域
总氮是决定地表水水质和衡量废水排放影响的一个关键指标。总氮包括了水中的有机氮与无机氮。如果地表水中的总氮氮浓度上升则意味着地表水可能受到了管网污水、垃圾渗滤液或者农业面源污染的影响。

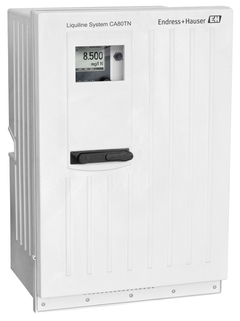

Liquiline System CA80TN总氮分析仪在线进行高精度总氮测量,为过程安全保驾护航。分析仪配备高级诊断功能,支持远程访问,归档记录可作为证明文件直接提交给权威机构。
Liquiline System总氮分析仪监测有机氮化物(例如蛋白质、尿素)和无机氮化物(例如硝酸盐、亚硝酸盐、氨氮),适用于下列应用场合:
污水处理厂的进水口和出水口,进行归档记录和净化能力计算
工业废水处理厂排放量,确定排放费用,是“排污付费原则”的基础
监测地表水水质
优势
符合国家HJ636标准《水质总氮的测定 碱性过硫酸钾消解紫外分光光度法》,测量结果与实验室结果完全一致。
坚固耐用:钛材反应器搭配蓝宝石窗口,具有长使用寿命。
使用灵活:内置稀释单元,提供宽量程范围。
快速实现过程集成:自抽取式分析仪直接安全使用,带Y型预处理的分析仪串联在旁路管道中使用。
简单添加模块,连接Memosens数字式传感器,轻松升级至完整的测量站。
演示视频
-
基于碱性过硫酸钾消解紫外分光光度法测定总氮。测量原理的演示视频。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
紫外光(UV)光度计
-
特点
Process analyzer for total nitrogen in aqueous solutions
UV photometric method following HJ636-2012 -
尺寸

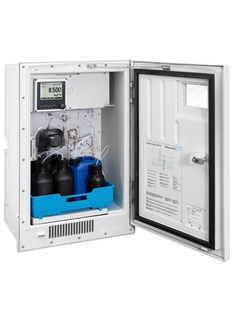

Housing (open version):
793 x 530 x 417 mm
31.22 x 20.87 x 16.42 in
Housing (closed version):
793 x 530 x 463 mm
31.22 x 20.87 x 18.23 in
Housing with base:
1723 x 530 x 463 mm
67.83 x 20.87 x 18.23 in -
设计
Open design, cabinet and stand housing
High-Performance plastic ASA-PC, additional stand coated steel -
过程温度
4 to 40 °C (39.2 to 104 °F)
-
环境温度
5 to 40 °C (41 to 104 °F)
-
过程压力
At atmospheric pressure, < 0.2 bar
-
探头处的流速
Min. 15 ml/min (0.51 fl.oz/min)
-
探头的一致性
Aqueous, homogeneous
-
应用
Monitoring of wastewater treatment plant outlet
Monitoring of the surface water quality
Monitoring of industrial water treatment
Monitoring and optimization of industrial wastewater treatment plants -
电源
100 to 120 VAC / 200 to 240 VAC ± 10%
50 ± 1 or 60 ± 1,2 Hz -
输出
2x 0/4 to 20 mA
Modbus RS485/TCP (optional)
Webserver (optional)
Ethernet/IP
Profibus DP
Alarm relay -
输入
1 measuring channel
1 to 4 digital sensor inputs for sensors with Memosens protocol (optional) -
测量范围
0 to 10 mg/l N
0 to 50 mg/l N
0 to 200 mg/l N -
耗材
Reagents and standard solutions CY80TN as well as cleaner CY800 are necessary for the operation
Regular maintenance is done with the parts of the maintenance kit CAV880
