iTHERM TM402卫生型温度计(英制/美标)

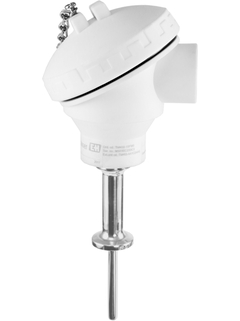

卫生型热电阻温度计iTHERM TM402 ©Endress+Hauser

适用于食品与饮料、生命科学行业中的标准卫生和无菌应用场合

iTHERM温度计满足食品与饮料、生命科学行业的基本要求,具有最高性价比。提供多种规格的仪表。因此产品选型十分简单快捷,节省了时间和成本。基本型仪表带不可更换的固定铠装芯子,配备多种过程连接,通过国际认证,具有高性价比。

此产品暂未在中国市场销售

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 高性价比,发货迅速

    • 从产品选型到维护都十分用户友好且可靠

    • 通过国际认证:符合卫生型标准(3-A®、EHEDG、ASME BPE、FDA),提供TSE适用性证书

    • 配备多种过程连接

  • 应用领域

    • 专门针对食品与饮料、生命科学行业中的卫生和无菌应用场合设计

    • 测量范围:–50...+200 °C (–8...+392 °F)

    • 最大压力:40 bar (580 psi)

    • 最高防护等级:IP69K

    • 可以在非危险区中使用

特征和规格

返回

Details

  • 测量原理

    热电阻

  • 特点/应用

    imperial style

    hygienic applications

    aseptic applications

    hygienic process connections

    with neck

  • 热保护套管

    without (direct immersion)

  • 铠装芯子/探头

    without exchangeable insert

  • 热保护套管外径

    1/4'' (6,35 mm)

    3/8'' (9,53 mm)

  • 所需最大插入深度

    up to 15.5" (317,5mm)

    others on request

  • 热保护套管材质

    316L

  • 过程连接

    Triclamp

    Clamp-connections according to ISO2852

    G3/4" Liquiphant

    G1" Liquiphant

    Varivent

  • 热保护套管末端类型

    straight

    reduced

  • 表面光洁度Ra

    30 μin (0,76 μm)

    15 μin (0,38 μm)

  • 工作温度范围

    PT100:

    -50 °C … 200 °C

    (-58 °F … 392 °F)

  • 最大过程压力(静压)

    at 20 °C: 40 bar (580 psi)

  • 测量精度

    class A acc. to IEC 60751

  • 响应时间

    depending on configuration

  • 模块化温度变送器

    yes (4 ... 20 mA, HART)

  • 证书

    SIL (transmitter only)

文档/手册/软件

附件/备件

Nr
Order code
Specification
    • Order code 52018765

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ", FMI51, FTI51 "GQJ" Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52021717

      O型圈

      for weld-in adapter G3/4 D=50 316L Liquiphant T FTL20H

    • Order code 52028295

      焊座

      Flush mount process connection FTL20 "1", FTL20H "GDJ" w/o flange Material: 316L, EHEDG compliant Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52001052

      焊座

      Flush mount process connection FTL50/FTL50H "GQ2" Material: 316L Seal: Silicone O-ring

    • Order code 52011897

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80, QMW43. Usage: TMR35.

    • Order code 52014473

      O型圈

      for weld-in adapter G3/4 Liquiphant M "GQ2"

    • Order code 52001051

      过程连接件|Weld-in G1, d=60, 316L

      齐平安装式过程连接 FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" 材质: 316L 密封: 硅橡胶 O-ring

    • Order code 52011896

      焊座,G1,d=60 ,3.1材质认证

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2", FMI51/FMI52, FTI51/FTI52 "GWJ", PMP135 "N", PTP35 "BB" Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 71093129

      焊座

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Order code 52014472

      O型圈

      for weld-in adapter G1 (52001051) Liquiphant M "GW2" Liquiphant T "7", Liquicap M "GWJ", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for weld-in andapter G1, 316L 3.1 (52011896) Liquiphant M "GW2", Cerabar T PMP135 "N", Ceraphant T PTP35 "BB" for sliding sleeve Soliphant T

    • Order code 52001221

      焊座

      Flush mount process connection FTL260 "0", FTL20 "7", FTL20H "GEJ", FTL330H/FTL330L "G", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring

    • Order code 52011898

      焊座

      Flush mount process connection FTL260 "0", FTL20H "GEJ", FTL50/FTL51, FTL50H/FTL51H "GW2" Liquiphant is adjustable Material: 316L Seal: Silicone O-ring Inspection cert. EN10204-3.1 material (316L wetted parts)

    • Order code 52014424

      密封垫圈

      for weld-in adapter G1, adjustable, 316L (52001221) Liquiphant M "GW2" for weld-in adapter G1, adjustable, 316L (52011898) Liquiphant M "GW2" for weld-in adapter G1, adjustable Liquiphant FTL330H/FTL330L, Liquiphant T FTL20H "UPJ

    • Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code 51516983

      通讯接口 FXA291

      Serial USB Computer Interface Technical Data: - USB Version1.1 or higher - Power supply via USB - IP51; NEMA/Typ 3 - Ambient temperature: -20....+60oC - Ex: II(2) G (EEx ia) II C - ATEX: BVS 05 ATEX E 095 Scope of deliovery: Commubox FXA 291 MS Windows USB driver Device is submitted for CSA/FM application. The device may not be modified and may be used with intrinsically safe circuits with corresponding characteristics only (see safety certificate).

    • Order code TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Order code TA30S-

      Terminal Head TA30S

      Retainer for terminal block or head transmitter. Cover: screwed. Material: Polypropylene. Colour: white. Ambient Temperature: -30...+130oC. Protection: IP65, NEMA4X (housing). :: easy wiring through good accessibility. :: compact design, low weight.

    • Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

  • B
    • Nr B Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.

    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code TXU10-

      Configuration kit TXU10-

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Order code SFE500-

      FieldCare

      FieldCare is a Software tool based on FDT/DTM technology. FieldCare is scalable which allows to fulfill tasks from Device Setup to Plant Asset Management. FieldCare includes tested and approved Endress+Hauser and third party DTMs and may be combined with other Endress+Hauser products like Condition Monitoring or W@M. Additional hardware (e.g. modems, cable) is needed. A software support service including updates to guarantee top quality and perfomance is recommended.

    • Order code DIENST-
    • Order code FXA42-

      Fieldgate FXA42

      Compact gateway for data capture of field devices, without antenna. Embedded web server, alarm / event handling. Application: remote monitoring, inventroy data monitoring, web enabled field interface. Field device interfaces 4-20mA, Modbus RTU, digital inputs/outputs. :: Meets NAMUR NE43 requirements. :: Data transition into SupplyCare.

    • Order code TA30R-

      Terminal Head TA30R

      Retainer for terminal block or head transmitter + optional display. Cover: screwed, optional window. Material: Stainless Steel 316L. Colour: Steel (no coating). Ambient Temp.: -50...85/130 oC (display/standard). Protection: IP66/68, NEMA4X; IP69K (housing). :: easy wiring through best accessibility. :: compact desing and low weight.
