无线HART适配器
SWA70
“利用 WirelessHART 实现简单易用的无线功能”视频简述演示了如何提高烟气脱氮装置的效率，同时节省成本。
自带电源的智能WirelessHART扩展接口模块，连接4...20 mA/HART设备

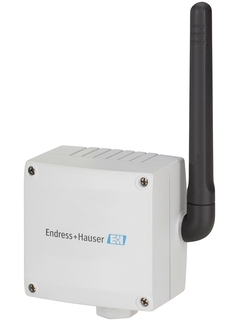

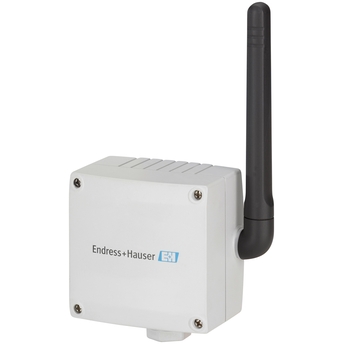

Endress+Hauser的WirelessHART适配器SWA70可用作HART和4...20 mA设备的扩展接口，无线连接现场仪表和无线HART Fieldgate. 通过电池或外接电源装置供电. 无线HART适配器可被用在危险和非危险区域的工况。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
输出
WirelessHART通信接口
传输速度：标准250 kBits/s
工作频率：2.4 GHz（ISM波段）
参考条件下的传输范围：
室外250米，室内50米 -
显示
通过3个LED指示灯集中操作
-
-
优势
HART设备快速更新为WirelessHART技术
4...20 mA设备快速集成至WirelessHART网络
一台适配器可连接一路4…20mA或最多4路HART设备（多点模式下）
适配器和连接设备支持突发模式和事件通知
不用铺设成本高昂的电缆，将距离较远、接入困难的HART设备连接到工厂控制室
规划简单、安装容易，集成迅速
-
应用领域
过程优化： 连接适配器，使工厂部分的监控和优化事半功倍。
罐区和粮仓的监测： 周期性传输测量值、设备和电池状态信号到高级系统。
工厂状态监控： 在工厂，由于可达性或布线成本，设备一般连接不到控制室。此时可在关键点添加无线设备。改进的数据流与诊断提高工厂可靠性和安全性。
