RNO22 output amplifier

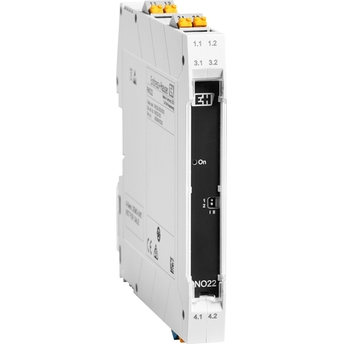

RNO22 output isolating amplifier with 1 or 2 channels ©Endress+Hauser

RNO22 output isolating amplifier with 1 or 2 channels

RN Series interface devices with the RNO22 output amplifier module ©Endress+Hauser

RN Series interfaces including the RNO22 output amplifier

The RN Series interface devices with RNO22 output amplifier module installed in a control cabinet ©Endress+Hauser

RN Series interfaces with RNO22 output amplifier module being commissioned

Safe and reliable control of active components

The RNO22 output isolating amplifier is used to safely control active components such as control valves, actuators, I/P converters or indicators. The intrinsically safe device separates and transmits analog 0/4 to 20 mA signals and offers bidirectional HART® transparency for digital communication with smart actuators.
The compact interface device with up to two galvanically isolated channels enables open- and short-circuit monitoring for reliable operation of critical equipment.

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

此产品暂未在中国市场销售

  • 产品规格参数

    • 输入

      0/4…20 mA / HART
      active/passive

    • 输出

      0/4…20 mA / HART
      active/passive

    • 电源

      24 V DC

please wait Loading alternative products

快速选择

从我们建议的选项中选择
售价
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • Safe and reliable control of active components in hazardous areas

    • Quick and easy wiring and commissioning: plug-in terminals, power supply via DIN rail bus connector

    • Compact housing: up to 2 channels on 12.5 mm (0.49 in) for efficient use of space in...

  • 应用领域

    • 1- or 2-channel output isolating amplifier

    • Reliable control of active components such as control valves, current-to-pressure transducers

    • Transmission and galvanic isolation of 0/4 to 20 mA signals

    • Intrinsically safe [Ex-ia], installation in Ex Zone 2

    • Suited...

特征和规格

返回

Details

  • 测量原理

    有源安全栅

  • 测量原理

    Output isolating amplifier

  • 功能

    1-channel

    2-channel

  • 电源

    24 V DC

  • 输入

    0/4…20 mA / HART

    active/passive

  • 输出

    0/4…20 mA / HART

    active/passive

  • 证书

    ATEX

    IECEx

    DNV

  • SIL

    SIL 2 SC 3

  • 操作

    DIP switch, HART
