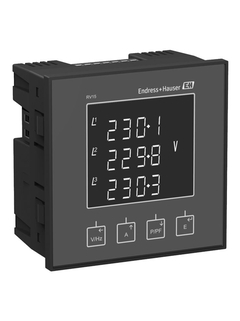

EngyVolt RV15

电表

Electric Meter

Measuring, visualization and transmission of electrical measuring values within low voltage installations (max. 500 V L-L, 289 V L/N).
Use in 1phase as well as 3phase grids.
Typical applications: industry, e. g. Food&Beverage, Chemistry, Pharma etc.

Measuring voltage, frequency, current, power, as well as imported and exported active and reactive power.

Not defined

Not defined

Not defined

Modbus RTU

Not defined

100 - 400 V AC

IP52 front

AC 110 - 400 V +/- 10% (110 - 300 V for installations acc. to UL)
DC 120 - 350 V +/-20% (120 - 300 V for installations acc. to UL)

MODBUS RTU (RS485)
Pulse output (optional for RV15)

Basic device:
96 x 96 x 64.1 mm (3.78" x 3.78" x 2.52")
Basic device with extension module:
96 x 96 x 83.6 mm (3.78" x 3.78" x 3.29")

4 button on site at the front side of the multifuntional measuring device.

triple-spaced background illuminated LCD-display

Measured datas:
Current (A), Voltage (V), calculated neutral current (A), Frequency (Hz) in low voltage installations
Calculated datas:
Power factor (PF = Cos-Phi), active power (W), reactive power (VAr), Apparent power (VA), THD

CE
IEC 60529
IEC 61010-1: 2001 Cor 2003
