产品规格参数
-
输入
3 versions:
4 Channel; 12 Channel; 20 Channel
With following possible protocols:
Modbus RS485; V1; WM550;
Tokyo Keiso FW9000; Varec
Mark/Space; Saab TRL/2; Enraf
BPM; Scientific Instruments;
Modbus Ethernet -
输出
OPC DA; Modbus RS485; Modbus Ethernet
应用领域

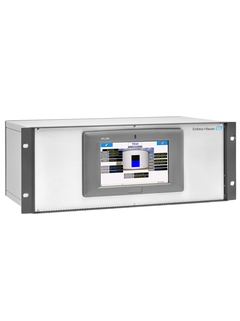

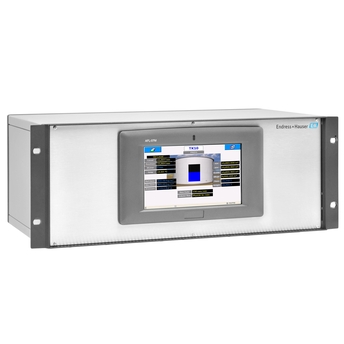

Tankvision Multi Scan NXA83B is an Tank Gauging system with completley integrated software for operation via remote access and standard web browser. It scans parameters from tank gauges and performs tank calculations. Tankvision Multi Scan allows legacy protocol management as well as gradual upgrades for more flexibility. Due to its modular structure it is ideally suited for medium size tank farms with only a few tanks, but also for large refineries with hundreds of tanks.
Tankvision Multi Scan NXA83B is suitable for medium size tank farms as well as large refineries with hundreds of tanks.
Suited for tank farms with various protocols used for communicating with the installed field devices and/or redundancy needs
Provides data to host systems (such as PLC or DCS) via Modbus and/or OPC
Ambient temperature: 0 to 55°C (32 to 131°F)
Approved for custody transfer applications according to PTB
优势
Precise inventory informations
Step-by-step site upgrade
High system availability
User access through the entire Network
Simplified site approval procedures
