热式质量流量计
Proline t-mass I 300

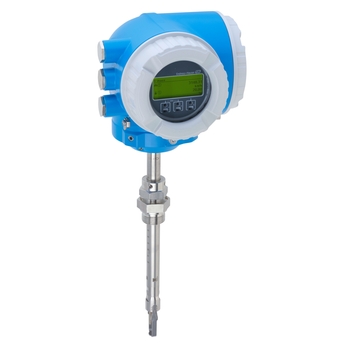

Proline t-mass I 300插入式流量计,适用于不超过DN 1500 (60")的圆形管路或矩形管道 ©Endress+Hauser

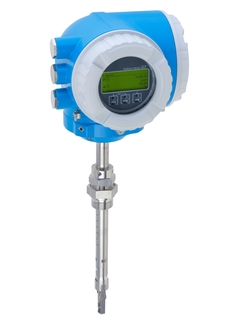

Proline t-mass I 300插入式流量计,适用于不超过DN 1500 (60")的圆形管路或矩形管道

扫描3D二维码探索t-mass F和I ©Endress+Hauser

扫描3D二维码探索t-mass F和I

Proline t-mass F/I 300/500 – 热式质量流量计,稳定,精准,是工业气体流量测量的理想选择

热式流量测量原理

插入式流量计,高长期稳定性,搭配操作便捷的一体型变送器。

t-mass I采用专利的传感器设计,基于热式原理插入在管道中进行质量流量测量,具有超高测量稳定性。它能够实时有效补偿过程条件变化:温度、压力、流向和气体类型。一体型变送器在操作和系统集成方面具有很高的灵活性:操作和接线在变送器的同一侧,可选远程显示,可自由配置I/O功能和多样的系统集成方式。Heartbeat Technology心跳技术保证了测量的可靠性和校验的合规性。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

此产品暂未在中国市场销售

  • 产品规格参数

    • 最大测量误差

      Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

    • 测量范围

      20 to 733501 kg/h (44 to 1669340 lb/h)

    • 介质温度范围

      -40 °C to +180°C (-40 °F to +356°F)

    • 最大过程压力

      -0.5 to 20 bar_g (-7.25 to 290 psi_g)

    • 接液部件材质

      Materials for insertion tube
      Stainless steel, 1.4404 (316/316L)
      Process connections, process coupling
      Stainless steel, 1.4404 (316/316L)
      Sensing element
      Unidirectional
      Stainless steel, 1.4404 (316/316L)
      Alloy C22, 2.4602 (UNS N06022);
      Bidirectional
      Stainless steel, 1.4404 (316/316L)
      Reverse flow detection
      Stainless steel, 1.4404 (316/316L)
      Clamping rings
      PEEK
      PVDF
      1.4404 (316/316L)
      Flat ring seal
      EPDM
      FKM

please wait Loading alternative products

快速选择

从我们建议的选项中选择
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 灵活设置,提供21种标准气体选项,也可以选择用户自备混合气体

    • 高水平的过程控制:高测量精度(Premium)和高测量重复性

    • 可靠监测:检测过程扰动和反向流

    • 安装灵活:适用口径范围广,可以安装在圆形管路或矩形管道中测量

    • 完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线

    • 降低复杂性和多变性:允许用户自定义输入/输出功能

    • 带自校验功能:采用Heartbeat Technology心跳技术

  • 应用领域

    • 测量原理具有高量程比和直接测量质量流量的特点

    • 在环形管路或矩形水渠中测量公用工程气体和混合气体

    仪表特点

    • 插入式仪表:DN 80...1500 (3...60")

    • 双向流量测量;高测量性能

    • 专利的无温漂传感器,通过SIL 2认证

    • 紧凑型双腔室外壳最多带3路输入/输出

    • 背光显示、触摸键控制和WLAN访问

    • 提供分离型显示单元

特征和规格

返回

Details

  • 测量原理

    热式

  • 产品标题

    Insertion flowmeter with drift-free sensor and a compact, easily accessible transmitter. Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof. Measurement of utility and process gases as well as gas mixtures in circular piping or rectangular ducts.

  • 传感器特点

    High level of process control – premium measurement accuracy and repeatability. Reliable monitoring – detection of process disturbances and reverse flow. Flexible installation – suitable for large dimensional range and circular pipes or rectangular ducts. Insertion version for DN 80 to 1500 (3 to 60"). Bidirectional measurement; high measuring performance.

  • 变送器特点

    Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access.

  • 公称口径范围

    DN 80 to 1500 (3 to 60")

  • 接液部件材质

    Materials for insertion tube
    Stainless steel, 1.4404 (316/316L)
    Process connections, process coupling
    Stainless steel, 1.4404 (316/316L)
    Sensing element
    Unidirectional
    Stainless steel, 1.4404 (316/316L)
    Alloy C22, 2.4602 (UNS N06022);
    Bidirectional
    Stainless steel, 1.4404 (316/316L)
    Reverse flow detection
    Stainless steel, 1.4404 (316/316L)
    Clamping rings
    PEEK
    PVDF
    1.4404 (316/316L)
    Flat ring seal
    EPDM
    FKM

  • 测量变量

    Massflow, temperature, standard volume flow, volume flow, Free air delivery, velocity, heat flow, energy flow, density

  • 最大测量误差

    Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

  • 测量范围

    20 to 733501 kg/h (44 to 1669340 lb/h)

  • 最大过程压力

    -0.5 to 20 bar_g (-7.25 to 290 psi_g)

  • 介质温度范围

    -40 °C to +180°C (-40 °F to +356°F)

  • 环境温度范围

    -40 to 60°C (-40 to 140°F)
    Optional:

    Transmitter: -50 to 60°C (-50 to 140°F),
    Sensor: -60 to 60°C (-60 to 140°F)

  • 变送器外壳材质

    Aluminium, AlSi10Mg, coated
    Polycarbonate

  • 防护等级

    IP66/67, Type 4X enclosure

  • 显示/操作

    4-line backlit display with touch control (operation from outside)
    Configuration via local display and operating tools possible
    Remote display available

  • 输出

    3 outputs:
    4-20 mA HART (active/passive)
    4-20 mA (active/passive)
    Pulse/frequency/switch output (active/passive)
    Relay output

  • 输入

    Status input
    4-20 mA input

  • 数字通信

    HART, Modbus RS485

  • 电源

    DC 24V
    AC 100 to 240V

  • 防爆认证

    ATEX, cCSAus, IECEx, NEPSI, JPN

  • 产品安全性

    CE, C-tick

  • 功能安全性

    Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

  • 计量认证和证书

    Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
    Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a

  • 压力认证和证书

    CRN

  • 材料证书

    3.1 material
    NACE MR0175/MR0103
