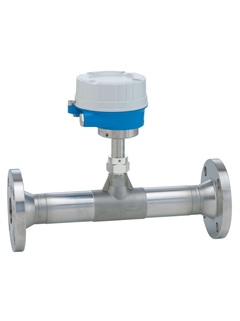

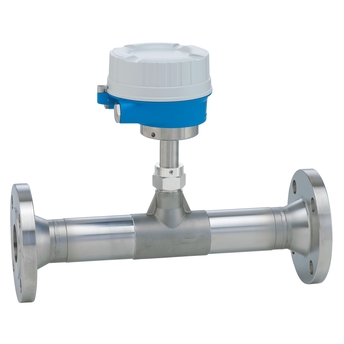

热式质量流量计
Proline t-mass F 500

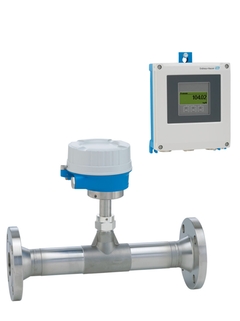

管道式流量计,具有高长期稳定性,采用分体型设计,最多可以带4路输入/输出
t-mass F采用专利的传感器设计,基于热式原理进行管道式质量流量测量,具有超高测量稳定性。它能够实时有效补偿过程条件变化:温度、压力、流向和气体类型。t-mass F 500采用创新的分体式变送器,保证严苛工况条件下具有最大安装灵活性和最高操作安全性。Heartbeat Technology心跳技术保证了测量的可靠性和校验的合规性。
- F
- L
- E
- X
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
最大测量误差
Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)
-
测量范围
0.5 to 3750 kg/h (1.1 to 8250 lb/h)
-
介质温度范围
-40 °C to +180°C (-40 °F to +356 °F)
-
最大过程压力
PN40 / Cl. 300 / 20K
-
接液部件材质
Measuring tubes
• DN 15 to 50 (½ to 2"): stainless cast steel, CF3M/1.4408
• DN 65 to 100 (2½ to 4"): stainless steel, 1.4404 (316/316L)
Process connections
Flange connections
Stainless steel, 1.4404 (F316/F316L)

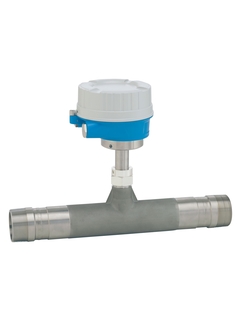

Threaded connections
Stainless steel, 1.4404 (316/316L)
Sensing element
Unidirectional
• Stainless steel, 1.4404 (316/316L)
• Alloy C22, 2.4602 (UNS N06022);
Bidirectional
Stainless steel, 1.4404 (316/316L)
Reverse flow detection
Stainless steel, 1.4404 (316/316L)
-
快速选择
个性化配置
-
优势
-
灵活设置,提供21种标准气体选项,也可以选择用户自备混合气体
高水平的过程控制:高测量精度(Premium)和高测量重复性
可靠监测:检测过程扰动和反向流
轻松维护:可拆除传感器
完整查看过程信息和诊断信息:提供多种用户自定义输入/输出组合方式和现场总线
降低复杂性和多变性:允许用户自定义输入/输出功能
带自校验功能:采用Heartbeat Technology心跳技术
-
-
应用领域
测量原理具有高量程比和直接测量质量流量的特点
在小口径管道中测量公用工程气体和混合气体
仪表特点
管道式流量计,DN 15...100 (1/2...4")
双向流量测量;高测量性能
专利的无温漂传感器,通过SIL 2认证
分体型仪表最多带4路输入/输出
背光显示、触摸键控制和WLAN访问
标准电缆连接传感器和变送器
