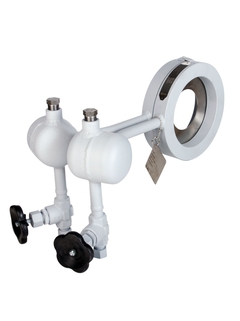

Deltatop DO63C

此产品现已不再销售。

想要查看新产品，请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate with carrier ring and annular chamber corner taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

    Divided carrier ring with exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 50...1000

    2" ... 40"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • 测量范围

    10 ... 150'000m3/h

  • 最大过程压力

    PN6 ... 100

    Cl.150 ... 600

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate with carrier ring and annular chamber corner taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

    Divided carrier ring with exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 50...1000

    2" ... 40"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

  • 测量范围

    0.4 ... 15'000m3/h

  • 最大过程压力

    PN6 ... 100

    Cl.150 ... 600

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

  • 测量原理

    差压

  • 产品标题

    Calculated volume or mass flow measurement. dp primary element (orifice).

    Orifice plate with carrier ring and annular chamber corner taps.

  • 传感器特点

    Internationally standardized ISO5167-2.

    Divided carrier ring with exchangeable orifice plate.

    Compact or remote design.

    Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown.

    Deltabar S/M differential pressure transmitter.

  • 公称口径范围

    DN 50...1000

    2" ... 40"

  • 最大测量误差

    typically < 1% of calculated volume or mass acc. ISO5167 without calibration.

    Uncertainty of primary element excluding uncertainty of density or compensation.

  • 测量范围

    10 ... 150'000m3/h

    50 ... 750'000 kg/h at 10bar/230°C

  • 最大过程压力

    PN6 ... 100

    Cl.150 ... 600

  • 介质温度范围

    Compact version:

    -200°C ... 200°C

    -328°F ... 392°F



    Remote version:

    -200°C ... 1000°C

    -328°F ... 1832°F

  • 防护等级

    Transmitter (Deltabar):

    IP67

    NEMA6P

  • 显示/操作

    Transmitter (Deltabar):

    4-line display

    3 push buttons

    Quick setup

    HistoROM

  • 输出

    Transmitter (Deltabar):

    4 ... 20 mA

  • 数字通信

    Transmitter (Deltabar):

    HART

    PROFIBUS PA

    FOUNDATION Fieldbus

  • 防爆认证

    Transmitter (Deltabar):

    ATEX

    FM

    CSA

    IEC

    TIIS

    NEPSI

文档/手册/软件

  • Deltatop DO61W, DO62C, DO63C, DO64P, DO65F

    孔板差压流量测量

    技术信息(TI)
  • Deltatop - Orifices

    Differential pressure flow measurement with orifices and Deltabar
    differential pressure transmitter
    The universal measuring
    system for steam, gases and liquids

    操作手册（BA）
  • Control Engineering Polska kwiecie& 324; 2008

    Klasyczne pomiary przep&
    322;ywu cieczy, pary i gazów z u
    &
    380;yciem elementów spi&
    281;trzaj&
    261;cych

    公共出版物(PU)
    09/08
    波兰语
  • Pomiary Automatyka Robotyka marzec 2007

    Klasyczne pomiary przep&
    322;ywu cieczy pary i gazów

    公共出版物(PU)
    09/08
    波兰语
  • 压力测量

    用于过程压力、差压、液位和流量测量的专业仪表

    实际应用(FA)
    09/15
    中文
  • Basınç Ölçümü

    Proses basıncı, fark basınç, seviye ve akış için güçlü enstrümanlar

    实际应用(FA)
    05/15
    土耳其语
  • Pressure measurement

    Powerful instruments for process pressure, differential pressure, level
    and flow

    实际应用(FA)
    03/17
    英语
  • Mesure de pression

    Appareils de mesure pour la pression de process, la pression
    différentielle, le niveau et le débit

    实际应用(FA)
    03/17
    fr
  • Pressure measurement

    American version: Powerful instruments for process pressure,
    differential pressure, level
    and flow

    实际应用(FA)
    03/17
    英语
  • Druckmesstechnik

    Leistungsfähige Messgeräte für Prozessdruck, Differenzdruck, Füllstand
    und Durchfluss

    实际应用(FA)
    03/17
    德语
  • Catálogo Medición de Presión

    Instrumentos para la medición de presión, presión diferencial, nivel y
    caudal de proceso

    实际应用(FA)
    03/17
    西班牙语
  • Misura della pressione

    Potenti strumenti per la misura della pressione di processo, pressione
    differenziale,
    livello e portata

    实际应用(FA)
    03/17
    意大利语
  • Pomiar ciśnienia

    Potężna aparatura do pomiaru
    ciśnienia procesowego, różnicy
    ciśnień, poziomu i przepływu

    实际应用(FA)
    03/14
    波兰语
  • Komplettpaket Druckmesstechnik

    Ein Ansprechpartner - spart Zeit und reduziert Kosten

    竞争力手册(CP)
    05/15
    德语
  • Präzision für die Praxis Gasdurchfluss zuverlässig messen

    Verschleißfrei, wartungsfrei, stabil im Prozess und hochgenau:
    Gasdurchfluss-Messgeräte von Endress+Hauser

    竞争力手册(CP)
    02/14
    德语
  • Deltatop

    产品型号: DV61S-, DP63D-, DP62D-, DP61D-, DO69S-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    地区/国家: Russia (TR CU)
    认证机构: EAC
    保护: Ex d IIC T6...T4 Gb, Ex ia IIC T6...T4 Gb

    Explosion Protection
    俄语
  • Deltatop

    产品型号: DN61S-, DN62S-, DO61W-, DO62C-, DO63C-, DO64P-, DO69S-, DV61S-

    Pressure Equipment
    俄语
  • Deltatop

    产品型号: DV61S-, DP69D-, DP63D-, DP62D-, DP61D-, DO65F-, DO64P-, DO63C-, DO62C-, DO61W-, DN62S-, DN61S-
    地区/国家: Russia
    认证机构: Rosstandart
    证书号: DE.C.29.004.A_56261

    Metrology
    俄语
  • Deltatop

    产品型号: DO61W-, DO62C-, DO63C-, DO64P-, DO65F-, DP61D-, DP62D-, DP63D-
    认证机构: RM RS

    Marine
    俄语

附件/备件

Nr
Order code
Specification
    • Order code 71071897

      安装螺栓

      Consists of: 4x screw, length 1-3/4", steel. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071899

      安装螺栓

      Consists of: 4x screw, length 1-3/4", steel. 2x seal PTFE. Usage: manifold, milled. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071900

      Screw set UNF7/16x2-1/4", steel, Viton

      Consists of: 4x screw, length 2-1/4", steel. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71071901

      安装螺栓

      Consists of: 4x screw, length 2-1/4", steel. 2x seal PTFE. Usage: manifold, forging. DA63M, DPD61D/DPD62D/DPD63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285305

      安装螺栓

      Consists of: 4x screw, length 1-3/4", VA. 2x seal FKM Viton. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285307

      安装螺栓

      Consists of: 4x screw, length 1-3/4", VA. 2x seal PTFE. Usage: manifold, milled. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285308

      安装螺栓

      Consists of: 4x screw, length 2-1/4", VA. 2x seal FKM Viton. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

    • Order code 71285310

      安装螺栓

      Consists of: 4x screw, length 2-1/4", VA. 2x seal PTFE. Usage: manifold, forging. DA63M, DP61D/DP62D/DP63D, DO61W/DO62C/DO63C/DO65F. Not for manifold + connection IEC61518, both side.

比较产品
