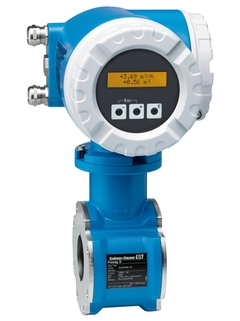

Promag 50D

此产品现已不再销售。

想要查看新产品,请关注上一代/下一代产品章节或联系您当地的 Endress+Hauser 实体。

特征和规格

返回

Details

  • 测量原理

    电磁

  • 产品标题

    The compact wafer version combined with a modular electronic concept. For basic water applications; optimized for limited space and plastic pipe installations.

  • 传感器特点

    Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Short installation length and low weight. Integrated ground disks made of stainless steel.

  • 变送器特点

    Fast commissioning – application‐specific Quick Setups. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version.

  • 公称口径范围

    DN 25…100
    1"…4"

  • 最大测量误差

    ±0.5%

  • 测量范围

    0...600 m3/h

  • 最大过程压力

    PN16
    Cl 150
    JIS 10K

  • 介质温度范围

    0...+60°C
    (+32...+140°F)

  • 防护等级

    IP 67 (NEMA 4x)

  • 显示/操作

    Two line display with backlit
    Push button

  • 输出

    4...20 mA
    Pulse/Frequency
    Status

  • 输入

    Status

  • 数字通信

    HART
    Profibus DP/PA

  • 防爆认证

    FM
    CSA

  • 产品安全性

    CE认证、C-tick认证、EAC认证

文档/手册/软件

附件/备件

Nr
Order code
Specification

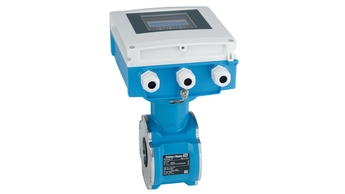

  • 替代产品
