优势概览
-
                            iTHERM TrustSens温度计支持无线集成,帮助生命科学、食品与饮料行业的用户轻松完成过程校验。
 产品组合包括iTHERM TrustSens自标定温度传感器,智能化Bluetooth蓝牙和接口,以及WirelessHART适配器,轻松读取标定数据,将风险降至最低。
-
                            - 便捷查看标定状态
- 节省标定成本,减少标定次数,助力总成本节约
- 规避风险,清除未检测到的故障:
- 更高过程透明度
- 更高产品安全性

组合套装详图

                              单品和预配置
-
                          固定组合为确保单品之间良好兼容,此处给出了特定的固定组合。打开参数即可任意配置单品。 可以在购物车配置组合套装中的单品
-
                          单品 1 1- F
- L
- E
- X
 iTHERM TrustSens TM371
 一体式温度计固定组合:TM371- _ _ _ _ _ _ _ _ _ A _ _通信; 输出 信号:AHART; 4-20mA>电缆 套:CAIP69K, 5m, angle 插接头
-

| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
|
 Fundamental选型 完美胜任基本测量任务 | 仪表技术性能 | 选型便捷程度 |
|
 Lean选型 轻松应对关键工艺的测量挑战 | 仪表技术性能 | 选型便捷程度 |
|
 Extended选型 创新技术助力工艺流程优化 | 仪表技术性能 | 选型便捷程度 |
|
 Xpert选型 满足严苛工况的特殊测量要求 | 仪表技术性能 | 选型便捷程度 特殊选型 |
该产品在该地区不可用。

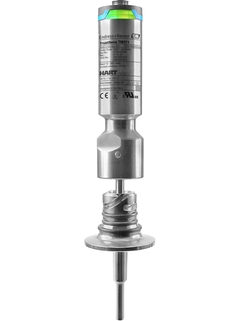

iTHERM TrustSens TM371
一体式温度计
                        屡获殊荣的iTHERM TrustSens TM371卫生型热电阻温度计,使用Endress+Hauser首款自标定Pt100传感器!卫生型温度变送器采用Heartbeat Technology心跳技术,有效地避免不合格产品漏检风险,缩短了生产中断时间,同时还提高了食品与饮料、生命科学行业应用中的产品安全性和生产效率。仪表符合FDA和GMP法规要求,能够集成至基于云技术的Netilion工业4.0云生态系统中使用。
-
                            测量原理热电阻
-
                            特点/应用self-calibrating
 metric style
 compact temperature probe
 hygienic design
 life sciences, food & beverage
-
                            热保护套管without
 incl. thermowell
 incl. Tee-/elbow thermowell
-
                            铠装芯子/探头without exchangeable insert
-
                            热保护套管外径6.0 mm (0.24'')
 9.0 mm (0.35'')
 12.7 mm (0.5")
-
                            所需最大插入深度up to 900.00 mm (35.4'')
-
                            热保护套管材质1.4435 Delta Ferrite < 1%
 316L
-
                            过程连接compression fitting
 weld in adapter
 clamp connections acc. to ISO 2852
 screwed pipe joint acc. to DIN 11851
 aseptic screwed pipe joint acc. to DIN 11864-1
 metallic sealing system
 thread acc. to ISO 228 for Liquiphant adaptor
 APV Inline
 Varivent
 Ingold
 SMS 1147
 Neumo Biocontrol
 TT411 elbow thermowell DIN 11865
-
                            热保护套管末端类型straight
 reduced
-
                            表面光洁度Ra0.76 μm (29.92 μin)
 0.38 μm (14.96 μin)
 0.38 μm (14.96 μin) electropolished
-
                            工作温度范围Pt100:
 -40 °C to 160 °C (-40 °F to 320 °F),
 optional up to 190 °C (374 °F)
 reference point for automated calibration
-
                            最大过程压力(静压)at 20 °C: 40 bar (580 psi)
-
                            响应时间t50 = 2.5 s
 t90 = 5.4 s
-
                            模块化温度变送器no (4 to 20 mA signal, HART)
-
                            防爆认证ATEX IECEx Ex ia
 CSA C/US IS
 UKCA Ex ia
FieldPort SWA50
FieldPort SWA50连接HART现场设备,将HART信号可靠转换为加密Bluetooth®蓝牙或WirelessHART信号。使用Endress+Hauser SmartBlue app或Endress+Hauser Field Xpert设置FieldPort SWA50,查看测量值和连接HART现场设备的状态。HART现场设备可以接入Netilion云生态系统,需要通过FieldPort SWA50和FieldEdge连接。
-
                            测量原理无线HART
-
                            功能Intelligent WirelessHART and/or Bluetooth® interface module for easy and fast connection to HART devices
-
                            证书Non-hazardous area, ATEX, IEC Ex
-
                            输入One point-to-point with HART device
-
                            输出WirelessHART and/or Bluetooth® communication interface,
 Operating frequency: 2.4 GHz (ISM band),
 Transmission range under reference conditions:
 WirelessHART communication - up to 200 m (656 ft),
 Bluetooth communication - up to 40 m (131 ft)
-
                            辅助电源/回路电源Loop-powered 4 to 20 mA
-
                            外形尺寸(wxhxd)W x H x D: 146 mm x 42 mm x 42 mm
 (dimensions in mm 25.4 = 1 inch)
-
                            软件Internal software for reading data from HART field devices and communicating over WirelessHART and/or Bluetooth®
-
                            操作Integral via DIP-switches,
 Cell Phone configuration via SmartBlue App and Bluetooth®,
 Field Xpert configuration via Bluetooth® or HART-modem,
 PC configuration via FieldCare and HART-modem,
 PC configuration via FieldCare and WirelessHART Gateway
-
                            工作电压24 V DC (min. 4 V DC, max. 30 V DC): min. 3.6 mA loop current required for start-up
 Voltage drop if internal HART communication resistor is deactivated:
 3.2 V in operation, < 3.8 V at start-up
 Voltage drop if internal HART communication resistor is activated (270 Ohm):
 < 4.2 V at 3.6 mA loop current, < 9.3 V at 22.5 mA loop current
