此产品暂未在中国市场销售
产品规格参数
-
测量精度
(Pt100, -50...200 °C) <= 0,14 K
(Pt100, -58...392 °F) <= 0,25 °F
应用领域

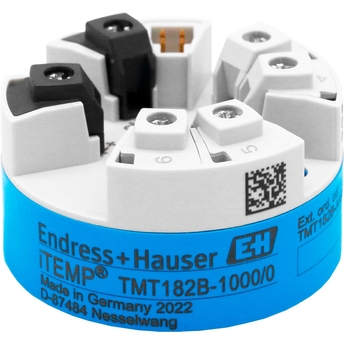

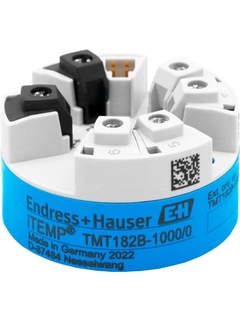

The iTEMP TMT182B temperature head transmitter is designed for applications across all process industries that require accurate temperature measurements and HART® communication. The device provides valuable additional diagnostic information and stable measurement performance, helping to improve process efficiency and stable plant operation.
Temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4-20 mA output signal
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω), voltage transmitters (mV)
Reliability, long-term stability, high precision and advanced diagnostics for safe operations
Installation in terminal heads form B or cabinets
优势
Safe operation in hazardous areas; international approvals
Reliable operation with continuous sensor and device monitoring
Diagnostics information according to NAMUR NE 107
Ready to use: pre-programmed ex-works if required
Easy configuration with free software

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
-
技术资料(TI)
iTEMP TMT182B
温度变送器
EN ZH 30/08/2022语言:
中文
版本:
30/08/2022
文件大小:
1.8 MB
文件名:
TI01692TZH_0122-00.pdf
-
-
-
操作手册(BA)
BA iTEMP TMT182B
温度变送器
EN ZH 30/08/2022语言:
中文
版本:
30/08/2022
文件大小:
2.8 MB
文件名:
BA02260TZH_0122-00.pdf
-
-
-
设备参数(GP)
iTEMP TMT182B Description device parameters
Temperature transmitter
EN ZH 30/08/2022语言:
英语
版本:
30/08/2022
文件大小:
717.2 KB
文件名:
GP01197TEN_0122-00.pdf
-
-
-
简明操作指南(KA)
iTEMP TMT182B
温度变送器
EN ZH 30/08/2022语言:
中文
版本:
30/08/2022
文件大小:
1.7 MB
文件名:
KA01605TZH_0122-00.pdf
-
-
-
安全指南(XA)
iTEMP TMT71, TMT72, TMT82, TMT84, TMT85, TMT86, TMT182B
ATEX: Ex ia IIICTxxx °C Dc, Ex tc IIIC Txxx °C Dc Ex tc IIIC Txxx °C Dc, Ex tc IIIC Dc Ex nA IIC T6 Gc, Ex ec IIC T6 Gc Ex nA IIC Gc, Ex ec IIC Gc
-
-
-
安全指南(XA)
iTEMP TMT182B
温度变送器 Ex ia IIC T4...T6 Ga Ex ia IIC T4...T6 Gb Ex ia [ia Ga] IIC T4...T6 Gb Ex ib [ia Ga] IIC T4...T6 Gb
EN ZH 17/10/2022语言:
中文
版本:
17/10/2022
文件大小:
971.4 KB
文件名:
XA03075TZH_0122-00.pdf
-
-
-
安全指南(XA)
iTEMP TMT182B
ATEX, IECEx: Ex ia IIC T6 Ga Ex ia IIC T6 Gb
EN ZH 21/07/2022语言:
英语
版本:
21/07/2022
文件大小:
401.2 KB
文件名:
XA02905TEN_0122-00.pdf
-
-
-
防爆保护
Product family: DIN rail transmitter, Head transmitters
Product root: TMT71-, TMT72- Region: Europe (ATEX) Approval agency: Bureau Veritas Category: II0II015, 005 ~010 075 015 Protection: Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb
EN ZH 28/09/2022语言:
英语
版本:
28/09/2022
文件大小:
3.9 MB
文件名:
EPS 18 ATEX 1 049 X_Iss.4.pdf
-
-
-
防爆保护
Product family: Head transmitters
Product root: TMT182B-, TMT71-, TMT72- Region: China Approval agency: SITIIAS Protection: Ex i
语言:
英语
版本:
23/02/2023
文件大小:
6 MB
文件名:
GYJ22.3604X_TMT7X TMT182B.pdf
-
-
-
防爆保护
Product family: DIN rail transmitter, Head transmitters
Product root: TMT182B-, TMT71-, TMT72- Region: International (IECEx) Approval agency: Bureau Veritas Protection: Ex ia IIC T6...T4 Ga, Ex ia IIC T6...T4 Gb
语言:
英语
版本:
28/09/2022
文件大小:
815.7 KB
文件名:
IECEx EPS 18.0026X_03.pdf
-
