无线HART Fieldgate SWG70
“利用 WirelessHART 实现简单易用的无线功能”简述视频演示了如何提高烟气脱氮装置的效率，同时节省成本。
智能无线HART网关，带以太网接口和RS-485接口

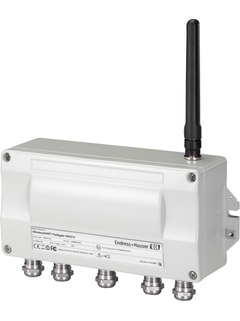

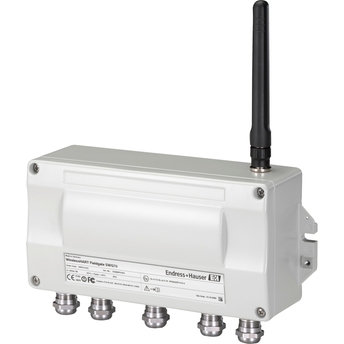

Endress+Hauser的无线HART Fieldgate SWG70设计用作使用以太网或RS-485物理层的系统和无线HART网络之间的接口。网关设计安装在2区防爆场合中，带本安天线端口。内部或分体式天线可以根据应用需求安装。
- F
- L
- E
- X
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
输出
以太网（10 BASE-T/10 BASE TX）
- HART IP和MODBUS TCP通信设置
RS-485串口
- HART 7.0或MODBUS RTU通信设置
EtherNet/IP接口 -
显示
通过5个LED指示灯集中操作
-
Loading alternative products
-
优势
便于调试和自我组织诊断的无线HART网络
现场设备信息通过标准化的协议，如MODBUS，以太网，HART-IP或OPC连入超级系统应用的无缝集成
通过使用FieldCare无线配置和管理工厂的智能现场设备
工厂防爆区域灵活的Fieldgate操作
-
应用领域
过程优化、罐体和料仓监控/库存控制，设备状态监控。无线HART网关以与其他系统兼容的格式转换和储存无线设备数据。带以太网接口和串口，用于连接至主站应用，例如：工厂资产管理和SCADA工具。
文档/手册/软件
-
WirelessHART Fieldgate SWG70
Technical Information
Intelligent WirelessHART gateway
with Ethernet and RS-485 interfaces技术信息(TI) -
