Differential pressure
Deltabar PMD75

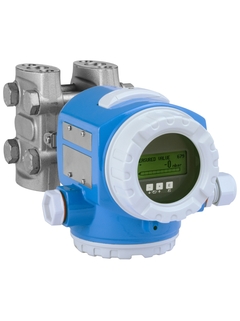

Deltabar PMD75 aluminum housing ©Endress+Hauser

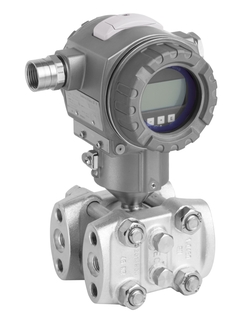

Deltabar PMD75 stainless steel housing ©Endress+Hauser

Pressure measuring principle

Functional safety in process measurement

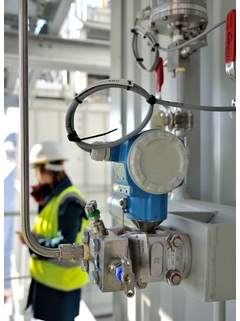

Deltabar PMD75 application ©Endress+Hauser

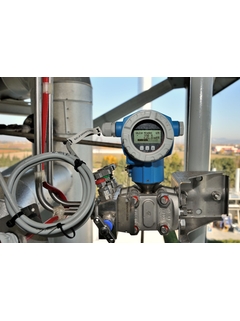

Deltabar PMD75 application ©Endress+Hauser

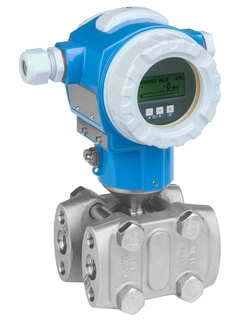

Deltabar PMD75 ©Endress+Hauser
  • Deltabar PMD75 aluminum housing
  • Deltabar PMD75 stainless steel housing
  • Deltabar PMD75 application
  • Deltabar PMD75 application
  • Deltabar PMD75

Differential pressure transmitter with metal sensor for measurement of pressure differences

The Deltabar PMD75 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases. The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.

Extended选型
  • F
  • L
  • E
  • X

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富，适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

  • 产品规格参数

    • 最大测量误差

      0.075%
      铂金型：0.05%

    • 测量精度

      标准型：0.05%；
      铂金型：0.035%

    • 过程温度

      -40...85 °C
      (–40...185 °F)

    • 介质温度范围

      带压管路的温度梯度

    • 压力测量范围

      10mbar...40bar
      (0.15...600 psi)

    • 过程压力（绝压）/最大过压限定值

      420bar (6300psi)

    • 主要接液部件

      Alloy C276合金
      316L
      Monel
      钽

    • 最大测量距离

      400m (1.312ft) H2O

    • 最大过程压力

      最大420bar
      ( 6.091 psi)

    • 过程膜片的材质

      316L、AlloyC合金、
      钽、
      金-铑

    • 传感器

      10 mbar...40 bar
      (0.4 inH2O...600 psi)

Loading alternative products

快速选择

从我们建议的选项中选择
售价
    -- selected coding
    -- selected label
    99.999,00
    <%label%>
    -- selected coding
    -- selected label
    99.999,00
    <%feature%>
  • Process Connection
      <%label%>
      99.999,00
      <%label%>
      99.999,00

  • <%message%>

PMD75
显示详细信息 隐藏详细信息
显示详细信息
返回进行快速选择
  • <%feature%>
    <%coding%>
    <%label%>
pc
价格核算中…
暂时无价格信息
from CHF 803.-
  • 可选附加功能
请使用 Configurator进行完整产品选型
或

个性化配置

从所有可用选项中继续选择

附加组件

  • 优势

    • Best accuracy, reproducibility and long-term stability

    • Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508

    • Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION...

  • 应用领域

    For level, volume or mass measurement in liquids, differential pressure monitoring as well as flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids.

    • Process connections: Threads

    • Process temperature: -40...

特征和规格

返回

Details

  • 测量原理

    差压

  • 产品标题

    数字式变送器，带金属膜片传感器
    模块化变送器
    高长期稳定性
    高静压力/抗过载
    通过自诊断功能提升安全性
    第二层过程安全栅

  • 最大测量误差

    0.075%
    铂金型：0.05%

  • 最大过程压力

    最大420bar
    ( 6.091 psi)

  • 介质温度范围

    带压管路的温度梯度

  • 显示/操作

    选项

  • 输出

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 数字通信

    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 防爆认证

    ATEX
    FM
    CSA
    IECEx
    INMETRO
    NEPSI
    TIIS

  • 功能安全性

    SIL

  • 材料证书

    NACE MR0103
    NACE MR0175
    EN10204-3.1

  • 测量原理

    差压

  • 特点/应用

    数字式变送器，带金属膜片传感器
    模块化变送器
    高长期稳定性
    高静压力/抗过载
    通过自诊断功能提升安全性
    第二层过程安全栅

  • 电源/通信

    4...20mA HART：
    10.5...45 VDC
    Ex ia：10.5...30 VDC
    PROFIBUS PA /
    FOUNDATION Fieldbus：
    9...32 VDC（非防爆型）

  • 测量精度

    标准型：0.05%；
    铂金型：0.035%

  • 长期稳定性

    0.05% URL /年

  • 环境温度

    -50...85°C
    (-58...185°F)

  • 过程温度

    -40...85 °C
    (–40...185 °F)

  • 过程压力（绝压）/最大过压限定值

    420bar (6300psi)

  • 压力测量范围

    10mbar...40bar
    (0.15...600 psi)

  • 主要接液部件

    Alloy C276合金
    316L
    Monel
    钽

  • 过程连接

    1/4...18NPT
    RC1/4"

  • 最大测量距离

    400m (1.312ft) H2O

  • 通信

    4...20 mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    溢出保护WHG
    SIL

  • 设计认证

    EN 10204-3.1
    NACE MR0175、MR0103

  • 船级认证

    GL/ ABS

  • 选项

    HistoROM/M-Dat
    四行数字显示
    不锈钢外壳或铝外壳
    分离型外壳

  • 替代产品

    PMD75B

  • 应用限制

    传感器：
    金属焊接

  • 测量原理

    差压

  • 特点

    数字式变送器，带金属膜片传感器
    模块化变送器
    高长期稳定性
    高静压力/抗过载
    第二层过程安全栅

  • 供电电压

    4...20mA HART
    10.5...45V DC（非防爆）：
    Ex ia：10.5...30V DC
    PROFIBUS PA：
    9...32 V DC（非防爆）
    FOUNDATION Fieldbus：
    9...32 V DC（非防爆）

  • 参考测量精度

    标准型：0.05%；
    铂金型：0.035%

  • 长期稳定性

    0.05% URL/年
    0.125% URL/ 5年

  • 过程温度

    -40...85°C
    (-40...185°F)

  • 环境温度

    -40...85 °C
    (-40...185 °F)

  • 传感器

    10 mbar...40 bar
    (0.4 inH2O...600 psi)

  • 最小可标定量程

    1 mbar (0.015 psi)

  • 抗真空压力

    50 mbar (7.25psi)

  • 最大量程比

    100:1

  • 最大过压限定值

    单侧：
    420 bar
    (6300psi)

  • 过程连接

    1/4-18NPT
    RC1/4"

  • 过程膜片的材质

    316L、AlloyC合金、
    钽、
    金-铑

  • 垫圈材质

    Viton、PTFE、EPDM、NBR

  • 填充液

    无

  • 外壳材质

    316L、铸铝

  • 通信

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 证书和认证

    ATEX、FM、CSA、CSA C/US、IEC Ex、TIIS、INMETRO、NEPSI、EAC

  • 安全认证

    WHG/溢出保护
    SIL

  • 设计认证

    NACE MR0103
    EN10204-3.1

  • 船级认证

    GL/ ABS

  • 特点

    诊断功能

  • 替代产品

    PMD75B

  • 测量原理

    差压

  • 产品标题

    数字式变送器，带金属膜片传感器
    模块化变送器
    高长期稳定性
    高静压力/抗过载
    通过自诊断功能提升安全性
    第二层过程安全栅

  • 最大测量误差

    0.075%
    铂金型：0.05%

  • 最大过程压力

    最大420bar
    (2.175 psi)

  • 介质温度范围

    带压管路的温度梯度

  • 显示/操作

    选项

  • 输出

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 数字通信

    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 防爆认证

    ATEX
    FM
    CSA
    IECEx
    INMETRO
    NEPSI
    TIIS

  • 功能安全性

    SIL

  • 材料证书

    NACE MR0103
    NACE MR0175
    EN10204-3.1

  • 测量原理

    差压

  • 产品标题

    数字式变送器，带金属膜片传感器
    模块化变送器
    高长期稳定性
    高静压力/抗过载
    通过自诊断功能提升安全性
    第二层过程安全栅

  • 最大测量误差

    0.075%
    铂金型：0.05%

  • 最大过程压力

    最大420bar
    ( 6.091 psi)

  • 介质温度范围

    带压管路的温度梯度

  • 显示/操作

    选项

  • 输出

    4...20mA HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 数字通信

    HART
    PROFIBUS PA
    FOUNDATION Fieldbus

  • 防爆认证

    ATEX
    FM
    CSA
    IECEx
    INMETRO
    NEPSI
    TIIS

  • 功能安全性

    SIL

  • 材料证书

    NACE MR0103
    NACE MR0175
    EN10204-3.1

文档/手册/软件

附件/备件

Nr
Order code
Specification
  • 13
  • 15
    • Nr 15 Order code 52020760

      缆塞

      consists of: cable gland M20 O-ring 18.72x2.62 VMQ Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020761

      电缆入口

      consists of: gasket 18.72x2.51 NBR adapter M20 > G1/2 O-ring 18.77x1.78 NBR Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020762

      插接头

      Harting plug set Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 15 Order code 52020763

      插接头

      Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Order code 71111056

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring EPDM, protection lid. Usage: housing T14, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Housing F31, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55. Housing F15 w/o B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Order code 71219639

      大气补偿过滤口

      Consists of: vent screw 304. Pressure compensation filter. O-ring VMQ, protection lid. Usage: housing T17, FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/ PMP75. Housing F15 at B1,BB,BD,BF,GA,ID,I1, FMB50/FMB51/FMB52/FMB53, PMC51, PMP51/PMP55.

    • Order code 71043886

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043888

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71043889

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

    • Order code 71070738

      电缆

      Connection cable sensor>sep. housing. Usage: FMB50/FMB51/FMB52, FMB70, FMD76/FMD77/FMD78, PMC51, PMC71, PMD70/PMD75, PMP51/PMP55, PMP71/PMP75.

  • 21
  • 20
    • Nr 20 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 20 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002810

      带视窗盖

      Material: 316L Sight glass: mineral glass flat gasket VMQ, centering ring, screw approval 2,3,4,8,Q,W,7,8 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71002811

      带视窗盖

      Material: 316L Sight glass: Polycarbonat PC flat gasket VMQ, centering ring, screw approval A,F,R,S,U,1,6 Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 20 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

    • Nr 20 Order code 71245247

      铝盖

      Material: aluminium, coated. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Not for EEx d/XP. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245249

      铝盖

      Material: aluminium. Sight glass mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 20 Order code 71245250

      盖

      Material: 316L. Sight glass: mineral glass, coated. O-ring EPDM, FDA. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 25
    • Nr 25 Order code 52020432

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 52020433

      带垫圈铝盖

      Material: Aluminium, coated O-ring EPDM, FDA for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 52028310

      不锈钢盖

      Material: 316L O-ring EPDM, FDA individual tested, EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 25 Order code 71002774

      不锈钢盖

      Material: 316L flat gasket VMQ, centering ring, screw not for EEx d/XP Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 25 Order code 71206965

      不锈钢盖

      Material: 316L. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP72/PMP75.

    • Nr 25 Order code 71206968

      不锈钢盖

      Material: 316L. Sight glass: mineral glass,coated. O-ring FVMQ. Individual tested, EEx d/XP. Usage: FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 21
    • Nr 21 Order code 71206971

      密封圈组件

      Consists of: 5x O-ring 75.87x2.62 FVMQ. Usage: housing T14, FMD77/FMD78, PMD70/PMD75, PMP71/PMP75.

    • Order code 71290825

      接地端子

      Consists of: spring washer, screw, earth handle, clamp. Usage: housing T14/T15/T17, FMB70, FMD71/FMD72/ FMD77/FMD78, PMC71, PMP71/PMP75, PMD70/PMD75. Housing F30/F31, FMB50/FMB51/FMB52/ FMB53, PMC51, PMD55, PMP51/PMP55.

  • 30
    • Nr 30 Order code 52024111

      电子插件

      4-20mA, version 2.0 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 52024400

      电子插件

      4-20mA, version 2.0 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 30 Order code 71026358

      电子插件

      4-20mA, version 2.1 push button on electronics Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71026359

      电子插件

      4-20mA, version 2.1 push buttons on housing Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 30 Order code 71071824

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071825

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071826

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on electronics. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71071827

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 15mA +/- 1mA. Push button on housing. Verwendung: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71196092

      电子插件

      4-20mA, version 02.11.zz. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71196093

      电子插件

      4-20mA, version 2.11.zz. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71214057

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214064

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 03.00.zz. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214066

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214069

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 02.00.zz. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71214890

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71214892

      电子插件

      FOUNDATION Fieldbus, Ex. Hardware version 02.00. Software version 04.00.zz, FF, DevRev07. Current consumption 15mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for SIL.

    • Nr 30 Order code 71224775

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on electronics. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71224776

      电子插件

      PROFIBUS PA, Ex. Hardware version 02.00. Software version 04.01.zz, PROFIBUS PA, Profile 3.02, DevRev03. Current consumption 13mA +/-1mA. Push button on housing. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 30 Order code 71263933

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71263934

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71365258

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on housing. Usage: PMD75 (dp mount gauge).

    • Nr 30 Order code 71365259

      电子插件

      4-20mA. Software version 02.20.zz, HART 7, DevRev22. Push button on electronic. Usage: PMD75 (dp mount gauge).

    • Nr 30 Order code 71386147

      电子插件 HART Ex, v2.30

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on electronics. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386153

      电子插件

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on housing. Usage: FMB70, FMD77/FMD78, PMC71, PMD75, PMP71/PMP75. Not for MID parts certificate (PMP71).

    • Nr 30 Order code 71386156

      电子插件

      4-20mA. Software version 02.30.zz, HART 7 DevRev23. Push button on housing. Usage: PMD75 (gauge/absolute).

    • Nr 30 Order code 71386158

      电子插件

      4-20mA. Software version 02.30.zz, HART 7, DevRev23. Push button on electronics. Usage: PMD75 (gauge/absolute).

  • 31
    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 31 Order code 52027785

      存储器

      Setup-/diagnostic software included. Cerabar S PMC71, PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 35
    • Nr 35 Order code 52027691

      接线端子

      RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

    • Nr 35 Order code 71028475

      接线端子

      Overvoltage protection, RFI-filter PROFIBUS PA Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71028476

      接线端子

      Overvoltage protection, RFI-filter FOUNDATION Fieldbus Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78

    • Nr 35 Order code 71121574

      接线端子

      RFI filter. PROFIBUS PA. Usage: FMB70, FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75. Not for TIIS.

    • Nr 35 Order code 71191892

      接线端子

      RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

    • Nr 35 Order code 71191894

      接线端子

      Overvoltage protection, RFI-filter. Not for TIIS Ex ia, TIIS Ex d. Usage: FMB70, FMD71/FMD72/FMD76/FMD77/FMD78, PMC71, PMD70/PMD75, PMP71/PMP75.

  • 40
    • Nr 40 Order code 71002865

      显示模块

      Digital display with snapped bracket languages de, en, fr, es, it, nl for electronics from software version 2.0 languages ja, zh for electronics from software version 2.0.1 Cerabar S PMC71,PMP71/PMP75 Deltabar S PMD70/PMD75,FMD76/FMD77/FMD78 Deltapilot S FMB70

  • 55
    • Nr 55 Order code 52020667

      法兰

      NPT1/4-18 IEC61518 UNF7/16-20, C22.8 for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges

    • Nr 55 Order code 52020668

      法兰

      NPT1/4-18 IEC61518 UNF7/16-20, 316L for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges

    • Nr 55 Order code 52020671

      法兰

      NPT1/4-18 IEC61518 UNF7/16-20, C22.8 sv = side vent for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges + 4 locking screws, 316L

    • Nr 55 Order code 52020672

      法兰

      NPT1/4-18 IEC61518 UNF7/16-20, 316L sv = side vent for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges + 4 locking screws, 316L

    • Nr 55 Order code 52020674

      法兰

      NPT1/4-18 PN160 M10, C22.8 for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges

    • Nr 55 Order code 52020675

      法兰

      NPT1/4-18 PN160 M10, 316L for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar Set consists of 2 flanges

    • Nr 55 Order code 52020676

      法兰

      NPT1/4-18 PN420 M12, 316L for pressure sensor 500mbar, 3bar, 16bar, 40bar Set consists of 2 flanges

    • Nr 55 Order code 52020678

      法兰

      NPT1/4-18 PN420 M12, C22.8 for pressure sensor 500mbar, 3bar, 16bar, 40bar Set consists of 2 flanges

    • Nr 55 Order code 52020680

      法兰

      RC1/4 mounting UNF7/16-20, 316L for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges

    • Nr 55 Order code 52020682

      法兰

      RC1/4 mounting UNF7/16-20, 316L sv = side vent for pressure sensor 100mbar, 500mbar, 3bar, 16bar, 40bar, PN160/PN420 Set consists of 2 flanges + 4 locking screws, 316L

  • 56
    • Nr 56 Order code 52020693

      安装组件

      for gasket PTFE, copper, NBR, Viton consists of: 4x hexagonal screw M12x90, steel 4x hexagonal nut M12, steel 4x lock washer

    • Nr 56 Order code 52020758

      安装组件

      for gasket NBR, Viton consists of: 4x hexagonal screw M12x90, SS 4x hexagonal nut M12, SS

  • 57
  • 50
    • Order code 71485110

      Locking screw (2x), NPT1/4, Alloy

      Usage: PMD55, PMD75, PMD75B.

    • Order code 71485122

      Locking screw (2x), NPT1/4, 316L

      Usage: PMD55, PMD55B, PMD75, PMD75B.

    • Order code 71487312

      排气阀 316L，1/4 NPT，2个

      Consists of: valve spindle, 316L. Valve bush NPT1/4, 316L. 3.1 report / Nace report. Usage: FMD77, PMD55, PMD55B, PMD75, PMD75B, UDS1.

    • Order code 71489164

      Vent valve 316L, R1/4 JIS, 2 pc.

      Consists of: valve spindle, 316L, thread 5/16-24 UNF. Valve bushing 316L, thread R1/4 JIS. 3.1 report / Nace report. Usage: PMD55B, PMD75, PMD75B, UDS1.

    • Order code 71518090

      Air vent valve(1x)NPT 1/4-18, Alloy

      Consists of: valve spindle, Valve bush NPT1/4. Material: Alloy. Usage: PMD55B, PMD75, PMD75B.

    • Order code 52024609

      安装组件

      with stainless steel screws 7/16-20UNF for wall and pipe mounting (2") Material: 304

    • Order code 71381907

      安装组件

      Standard design. ::For non-vibrating applications. Material: 316L. Usage: wall/pipe mounting, FMD78, PMD55, PMD55B, PMD75B.

    • Order code 71435883

      Mounting kit standard, M10

      Standard design. For non-vibrating applications. Material: 316L. Usage: wall/pipe mounting, PMD55, PMD55B, PMD75, PMD75B.

    • Order code 943153-0031

      Screw set UNF7/16x1/2",VA,4pcs.

      Consists of: 4 screws, 4 washers. Usage: FMD78, PMD55, PMD55B, PMD75, PMD75B.

    • Order code 52024610

      安装组件

      with stainless steel screws M12 for wall and pipe mounting (2") Material: 304

    • Order code 71435884

      Mounting kit standard, M12

      Standard design. For non-vibrating applications. Material: 316L. Usage: wall/pipe mounting, PMD55B, PMD75, PMD75B.

    • Order code 943153-0021

      Screw set M12x16,VA,4pcs.

      Consists of: 4 screws, 4 washers. Usage: PMD55B, PMD75, PMD75B.

    • Order code 52024611

      安装组件

      with stainless steel screws M10 for wall and pipe mounting (2") Material: 304

    • Order code 943153-0011

      Screw set M10x14,VA,4pcs.

      Consists of: 4 screws, 4 washers. Usage: PMD55, PMD55B, PMD75, PMD75B.

    • Order code 71372499

      阀组安装支架

      Mounting set Manifold. Material: 316L. Consists of: 1x Mounting bracket. 2x U-bolts 74mm. 4x Washers A 8.4 DIN125. 4x Hexagon nuts M8. 2x Socket head cap screws M10x14. 2x Washers B 10.5 DIN125. Usage: wall/pipe mounting 2", DA63M, PMD55, PMD75.

    • Order code 71102216

      安装组件

      Material: 316L. Usage: wall/pipe mounting (2"), FMB50/FMB51/FMB52/FMB53, FMB70, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, PMC51, PMC71, PMP51/PMP55, PMP71/PMP75.

    • Order code 71000221

      适配电缆

      Connection service tool RS232(52013675)/ ToF adapter FXA291 (71007843) > Micropilot M, Prosonic M, Levelflex M, Cerabar S, Deltabar S

    • Order code 71007843

      ToF 适配器 FXA291

      Usage: connection Micropilot M, Micropilot S, Levelflex M, Prosonic M, Tank Side Monitor, Deltabar S, Cerabar S, Gammapilot M, Micropilot I, to Commubox FXA291.

    • Order code XPRFID-

      Spare RFID TAG

      Consists of: RFID TAG, fixing wire, crimp sleeve.

成功案例

  • 德国Marbach水库的实景照片 德国Marbach水库的实景照片

    智能饮用水处理监测系统

    有了Netilion Water Network Insights，如今，Oberzent水务主管无需驾车亲临现场，就能在基于云技术的仪表显示屏上了解水管网系统中的所有相关数据。

  • 瑞士BITUTANK公司的沥青装车站照片 瑞士BITUTANK公司的沥青装车站照片

    最高精度的粘稠沥青装车

    GRISARD BITUMEN公司信赖Promass Q 500的双频技术，可靠测量含气沥青。

  • 站在Endress+Hauser流量液态烃流量校准装置前的Wintershall客户 站在Endress+Hauser流量液态烃流量校准装置前的Wintershall客户

    使用液态烃实现可靠的流量计校准

    今天，Wintershall Dea公司可以在Endress+Hauser新工厂校准装置上使用液态烃校准Promass F科里奥利质量流量计，确保完全符合法规要求。同现场校准相比，成本显著降低。

  • Promag W电磁流量计，测量管配备粘附监测功能 Promag W电磁流量计，测量管配备粘附监测功能

    粘附监测

    在德国一家污水处理厂中，水井堵塞引发了工厂意外停机事件。采用Heartbeat Technology心跳技术的仪表能够输出粘附系数。现在，客户可以有效监测工艺过程中的铁盐絮凝物粘附。

  • 位于瑞士Oberegg的thyssenkrupp Presta AG鸟瞰图 位于瑞士Oberegg的thyssenkrupp Presta AG鸟瞰图

    优化清洗过程，实现最高产品质量

    位于瑞士Oberegg的thyssenkrupp Presta AG可靠监测零部件清洗机的清洗剂浓度。
