模拟式pH电极

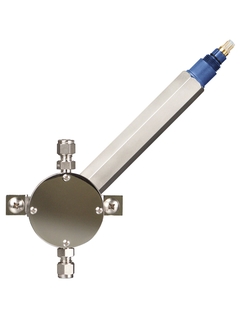

Purisys CPF201
紧凑型电极,用于电厂和生命科学行业
Purisys CPF201专用于纯水和超纯水测量。内置不锈钢安装支架,在最低电导率时提供稳定测量,不受流量的影响。Purisys保证最优水质,确保介质和资产的最高安全性。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量范围
pH 1...13(<100µS/cm)
-
过程温度
2...75°C
(36...167°F) -
过程压力
最大3 bar
(43.5 psi)
-
快速选择
个性化配置
-
优势
稳定的pH读数值和响应
消除流量引起的误差
专利的渗透PTFE参比膜
安装简便
文档/手册/软件
-
Technical Information Compact pH Electrode PuriSys CPF 201
Compact electrode for pH measurement in pure and
ultrapure water技术信息(TI) -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
竞争力手册(CP)08/15日语 -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
竞争力手册(CP)04/15英语 -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.竞争力手册(CP)04/11英语 -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidance竞争力手册(CP)02/12英语 -
