此产品暂未在中国市场销售
产品规格参数
-
Measured Variables
Concentration
Dew Point
Cell Pressure
Cell Temperature -
Hazardous area approvals
None
应用领域
SS1000便携式气体分析仪质量轻,由电池供电,可靠进行H2O测量结果验证,能够用户现场检查。在天然气管路应用场合中,质量不佳的测量结果会导致成本上升。传感器性能异常,直接导致附加处理或脱水成本、不稳定的工况、生产中断和不一致测量结果。SS1000识别性能差的传感器,精准测定高湿度,用作测量验证的标准。
天然气生产、运输、分配过程中的气体质量测量
验证和现场检查天然气管路中的H2O测量结果
用作参比,比对现有安装的分析仪
量程可扩展至0...250 ppm (0...5275 lb/mmscf) H2O
优势
轻质量,便携式,操作简单
电池供电,简单可靠进行现场检查
无湿润或干燥延迟,测量快速、精确
蒸汽中夹杂的杂质(比如乙二醇、甲醇、胺、硫化氢或硫醇)不会引起污染或漂移

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
TDLAS
-
Product Headline

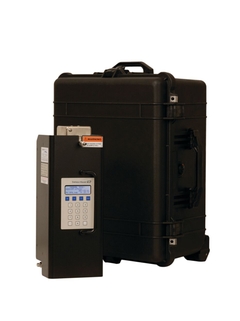

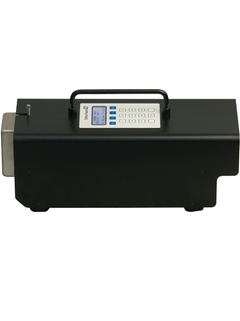

Portable, light weight, easy to handle, and battery-powered moisture (H2O) analyzer, used to verify measurements and for spot-checking when other methods provide questionable results. The sensor measures gas using Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the gas without coming into physical contact with the stream.
-
Channels
1
-
Analyte and Measurement ranges
H2O (Moisture): 0-100 to 0-5000 ppmv
-
Measured Variables
Concentration
Dew Point
Cell Pressure
Cell Temperature -
Ambient Temperature range
-20 to 50°C (-4 to 122°F)
-
Operating Pressure range
Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 700-1400 mbara -
Analyzer Wetted materials
316L Stainless Steel
FKM O-Rings
Glass -
Power supply
100-240 VAC, 50-60 Hz - standard 12-Volt
Sealed Lead-Acid Battery
Approx. 8 hours usage time per charge
0.5 Amps @ 120 VAC during recharging -
Communication
Analog Output: 1 or 2 4-20mA Isolated, 1200 ohms @ 24 VDC max load (optional)
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or ASCII -
Housing materials
Anodized Aluminum
-
Hazardous area approvals
None
-
Degree of protection
None
