产品规格参数
-
Laser wavelength
785 nm, 1000 nm -
Wetted materials
Body: 316L stainless steel
Window: Proprietary material, optimized for bioprocesses
Process connection: PG13.5 for industry standard sensor housings, welded port connectors available
Surface finish: Ra 15 with electropolish
Adhesive: USP Class VI and ISO993 compatible -
Sterilization method
CIP/SIP
应用领域

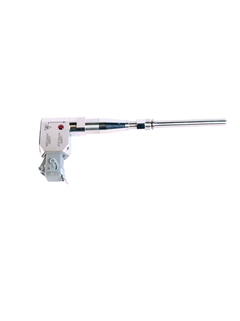

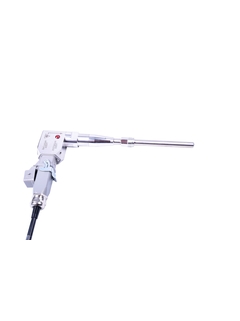

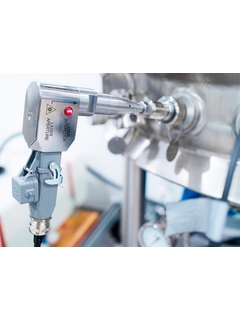

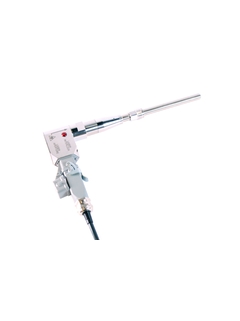

拉曼探头Rxn-45探头充分利用拉曼技术在生物工艺生产过程中的强大影响力，实时测量多种特定组份，成分，全天候不间断反馈过程状况。它还满足严格工况的采样要求，合规、可消毒、端口兼容、使用便捷。拉曼探头Rxn-45用于研发过程，安装遵循cGMP规范的不锈钢反应器中使用，成功为大规模生物工艺过程提供分析"眼睛"。
细胞培养：葡萄糖、乳酸、氨基酸、细胞密度、滴度等
发酵： 发酵：葡萄糖、甘油、醋酸、甲醇、乙醇、生物质等
优势
多组分实时测量，自动进行全天候过程反馈
测量具有高长期稳定性
表面处理符合cGMP生产要求
与工业标准生物反应器测端口和传感器外壳兼容
在研发过程和生产反应器中灵活安装
兼容CIP/SIP标准，减少消毒和清洁工作量
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
Loading alternative products
成功案例
您可能感兴趣的还有
-
-
技术资料（TI）
Rxn-45 Raman Spectroscopic Probe Technical Information
System design and specifications for the Raman Rxn-45 probe
语言:
英语
版本:
03/08/2022
文件大小:
308.3 KB
文件名:
TI01633CEN_0222.pdf
-
-
-
操作手册（BA）
Rxn-45 Raman Spectroscopic Probe Operating Instructions
Commissioning, operation, and maintenance details for the Raman Rxn-45 probe
语言:
英语
版本:
03/08/2022
文件大小:
781.1 KB
文件名:
BA02169CEN_0222.pdf
-
-
-
简明操作指南（KA）
Rxn-45 Raman Spectroscopic Probe Brief Operating Instructions
Quick start guide for the Raman Rxn-45 probe
语言:
英语
版本:
03/08/2022
文件大小:
504.6 KB
文件名:
KA01549CEN_0222.pdf
-
-
-
安全指南（XA）
Rxn-41拉曼光谱探头安全指南
Rxn-41拉曼光谱探头的防爆认证和安装指南
EN ZH 08/11/202201/07/2022语言:
中文
版本:
08/11/2022
文件大小:
1.1 MB
文件名:
XA02784CZH_0222.pdf
-
-
-
PU（出版）
Lab-to-process monitoring & control in Life Sciences - Reliable measurement of bioprocess physical and chemical properties
A combined product list of analysis offerings from both Optical Analysis and Liquid Analysis for bioprocessing applications in the life science industry (including Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, bIO-Optic, Rxn-45 probe, Rxn-46 probe, Raman optic system for single use, Memosens CPS61E, Memosens COS81E, OUSBT66, Memosens CPS61E, Memosens CPS77E, Memosens CLS82E, OUSAF44, Memosens CPS11E, Memosens CLS16E, TOC Analyzer CA79, Liquiline transmitter platform, and Memobase software).
语言:
英语
版本:
10/08/2022
文件大小:
782.3 KB
文件名:
PU01484CEN_0122.pdf
-
-
-
PU（出版）
Advanced process and product control in fermentations - Raman spectroscopy for composition analysis in a lab or process
An overview of Raman spectroscopy analyzer systems (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, and Rxn-45 probe), powered by Kaiser Raman technology, for fermentation compositional analysis in a lab or process applicable to biotechnology in the food & beverage industry.
语言:
英语
版本:
03/03/2022
文件大小:
726.2 KB
文件名:
PU01457CEN_0122.pdf
-
-
-
PU（出版）
Raman application guide for the life science industry - Trusted composition analysis for the life sciences
A guide to our Raman spectroscopy analyzer and probe portfolio, powered by Kaiser Raman technology, for the bioprocessing / biopharmaceutical life science industry (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-45 probe, Rxn -46 probe, and probe accessory optics (bIO-Optic, Raman single use optic system / SUB, immersion optic , non-contact optic).
语言:
英语
版本:
19/04/2022
文件大小:
1.1 MB
文件名:
PU01447CEN_0222.pdf
-
-
-
竞争力手册（CP）
Raman spectroscopy food & beverage application guide - Trusted technology for composition analysis in a laboratory or process environment
A guide to Raman spectroscopy application notes for the food & beverage industry (featuring studies using the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-20 probe, Rxn-45 probe, and the immersion optic and non-contact optic).
语言:
英语
版本:
17/02/2022
文件大小:
858.7 KB
文件名:
CP01489CEN_0122.pdf
-
-
-
应用案例（CS）
Advanced bioprocess control - Nicro provides turnkey solutions for fermenters
A case study that examines how Nicro used Raman spectroscopy (including a Raman Rxn2 analyzer and a Raman Rxn-45 probe), powered by Kaiser Raman technology, for advanced bioprocess control in the life science industry.
语言:
英语
版本:
30/11/2021
文件大小:
480.9 KB
文件名:
CS01726CEN_0121.pdf
-
-
-
推广彩页（IN）

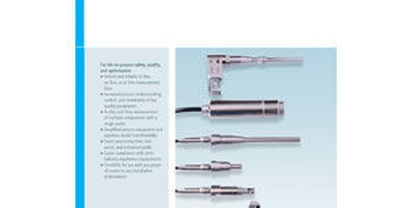

Raman technology in bioprocessing - Scalable in situ bioprocess monitoring enabling advanced process control
An overview brochure about our Raman spectroscopy analyzer and probe portfolio, powered by Kaiser Raman technology, for the bioprocessing / biopharmaceutical industry (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-45 probe, Rxn-46 probe, and probe accessory optics (bIO-Optic, Raman single use optic system / SUB, immersion optic , non-contact optic), powered by Kaiser Raman technology.
语言:
英语
版本:
02/11/2021
文件大小:
6.8 MB
文件名:
IN01228CEN_0121.pdf
-
