拉曼光谱分析仪：先进的光学分析技术
提高工厂安全性，保证产品质量，优化操作流程。拉曼光谱分析仪测量样气组分和分子结构，满足实验室离线检测和工艺过程实时测量的要求。
此产品暂未在中国市场销售
产品规格参数
-
配套采样探头
Raman Rxn-10
-
接液部件材质
生物工艺用套管：
主体：不锈钢316L
窗口：针对生物工艺
优化设计的专有材料
表面光洁度：Ra 15，电抛光处理及ASME BPE SF4表面处理
粘合部位：符合USP Cl. VI和ISO 10993
标准 -
灭菌方式
生物工艺用套管：
高压釜、伽马辐射
应用领域

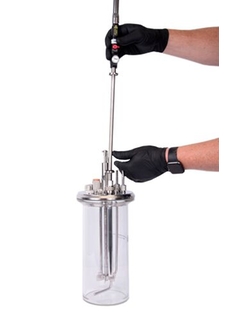

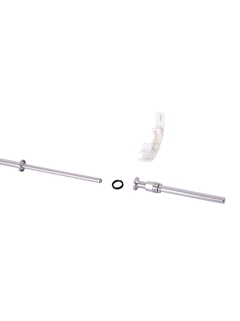

The bio multi optic and bio sleeve duo delivers reliable, real-time bioprocess measurements with maximum sterility and efficiency. The non-contact multi optic features a patented self-aligning lens for top spectra quality and reproducibility. It pairs with the Rxn-10 probe and connects to an autoclavable (or gamma sterilizable), disposable sleeve via an easy snap-in-place design. The system reduces maintenance and cross-contamination risk for reusable or single-use benchtop bioreactor setups.

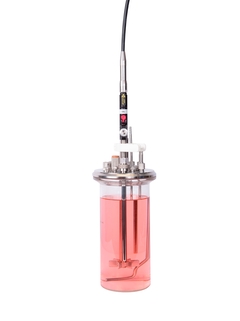

Benchtop bioreactors to measure glucose, lactate, amino acids, cell density, titer and more
Benchtop fermenters to measure glycerol, methanol, ethanol, sorbitol, biomass, and more
Use with flow assembly CYA680 for select downstream bioprocessing applications
优势

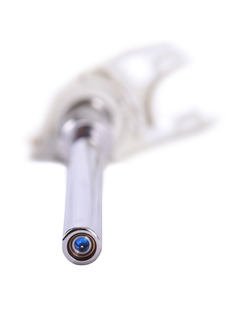

Patented self-focusing lens with automatic alignment for optimal spectral quality and reproducibility
Improved ease of use with less probe service and maintenance
Simplified workflow for greater process efficiency – swap out probes mid-batch, use multiple sleeves in the same reactor for simplified redundancy, and calibrate / verify probes at any time
Autoclavable, gamma sterilizable, and compatible with standard cleaning protocols (bio sleeve), with reduced risk of cross-contamination (via non-contact multi optic)

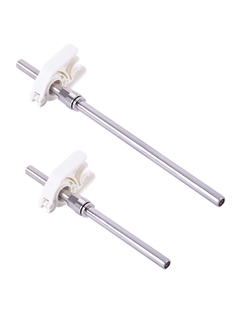

120 mm version is compatible with Endress+Hauser flow assembly CYA680
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
