拉曼光谱分析仪：先进的光学分析技术
提高工厂安全性，保证产品质量，优化操作流程。拉曼光谱分析仪测量样气组分和分子结构，满足实验室离线检测和工艺过程实时测量的要求。
产品规格参数
-
配套采样探头
Raman Rxn-10（串联式）
-
接液部件材质
微型流通池：
主体：不锈钢316L
窗口：针对生物工艺优化设计的专有材料
表面光洁度：Ra 15，电抛光处理及ASME BPE SF4表面处理
粘合部位：符合USP Cl. VI和ISO 10993
标准 -
灭菌方式
微型流通池：
CIP/SIP
应用领域

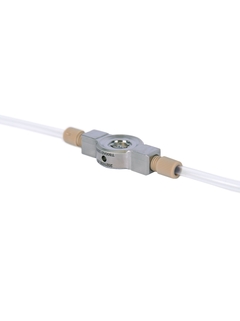

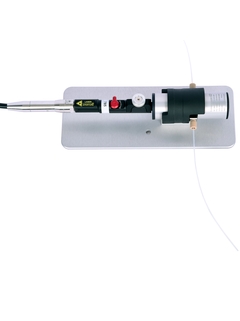

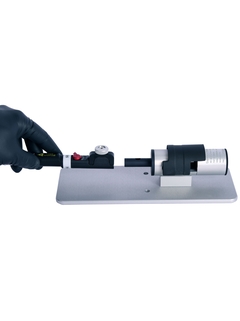

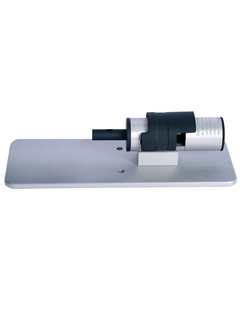

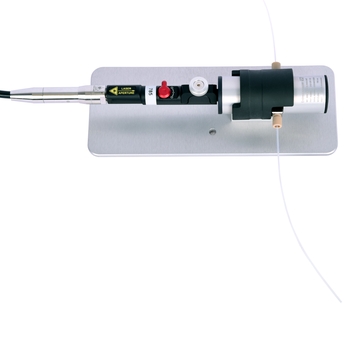

The Raman flow assembly brings in-line Raman spectroscopy to downstream bioprocessing. Comprised of a flow cell and associated flow bench connected to an Rxn-10 probe, this system meets the speed demands of downstream by optimizing Raman collection for low-turbidity, low volume samples. Ideally suited for development-scale flow rates, the Raman flow assembly provides real-time monitoring, rapid process optimization, and process control for chromatography and other downstream unit operations.
Downstream: aggregation, protein crystallization, formula stability, product CQA, protein concentration, buffer excipients
Midstream: analyte monitoring in permeate
优势
Brings Raman-based process insights and control to downstream bioprocessing unit operations
Achieves lower limits of detection through enhancement of the Raman signal
Provides continuous, real-time measurements with high sensitivity for development-scale flow rates
Easily connects to an Rxn-10 probe paired with a Raman Rxn embedded analyzer, and ensures transferability when used with the Raman flow assembly calibration and verification kit
With the flow bench, provides flexibility to swap out flow cells any time without impacting your process or sterility
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
Loading alternative products
6文档
-
-
《技术资料》（TI）
Raman flow assembly Technical Information
System design and specifications for the Raman flow assembly (KRFB, KRFC)
语言:
英语
版本:
30/06/2023
文件大小:
329.5 KB
文件名:
TI01721CEN_0123.pdf
-
-
-
《操作手册》（BA）
Raman flow assembly Operating Instructions
Commissioning, operation, and maintenance details for the Raman flow assembly (KRFB, KRFC)
语言:
英语
版本:
30/06/2023
文件大小:
951.5 KB
文件名:
BA02296CEN_0123.pdf
-
-
-
PU（出版）

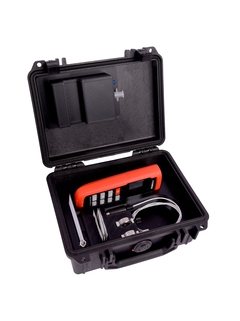

Raman calibration and verification kits - Everything needed to calibrate and verify your Raman analyzer system for lab-to-process scalability
An overview of the Raman calibration and verification kits for the bio multi optic / single use optic and the Raman flow assembly (includes the flow bench and flow cell). These kits are to be used in conjunction with the Rxn-10 probe and Raman Rxn2 analyzer for upstream and downstream bioprocessing (powered by Kaiser Raman technology).
语言:
英语
版本:
01/06/2023
文件大小:
1.2 MB
文件名:
PU01518CEN_0123.pdf
-
-
-
PU（出版）
Raman flow assembly - Precise composition measurement of high-speed, low-volume samples in downstream bioprocessing
An overview of the Raman flow assembly (flow bench and flow cell) used with tan Rxn-10 probe in conjunction with a Raman Rxn2 analyzer and a Raman flow assembly calibration and verification kit for downstream bioprocessing (powered by Kaiser Raman technology).
语言:
英语
版本:
31/05/2023
文件大小:
837 KB
文件名:
PU01517CEN_0123.pdf
-
-
-
创新（IN）
Raman technology in bioprocessing - Scalable in situ bioprocess monitoring enabling advanced process control
An overview brochure about our Raman spectroscopy analyzer and probe portfolio, powered by Kaiser Raman technology, for the bioprocessing / biopharmaceutical industry (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-45 probe, Rxn-46 probe, and probe accessory optics (bIO-Optic, Raman single use optic system, bio multi optic with bio sleeve, and Raman flow assembly), powered by Kaiser Raman technology.
语言:
英语
版本:
19/06/2023
文件大小:
6.8 MB
文件名:
IN01228CEN_0223.pdf
-
-
-
创新（IN）
Raman single-use technology for bioprocessing - Real-time composition analysis for biopharmaceutical development and manufacturing
An overview brochure about our Raman spectroscopy multi use and single use bioprocessing portfolio (including the Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, Rxn-46 probe, Raman single use optic system, bio multi optic, and bio sleeve), powered by Kaiser Raman technology.
语言:
英语
版本:
05/01/2023
文件大小:
3.9 MB
文件名:
IN01267CEN_0123.pdf
-
