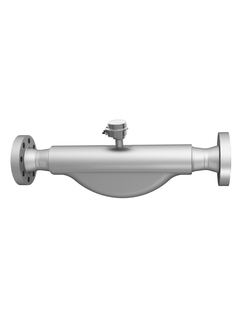

Proline Promass O 100
科里奥利质量流量计

科里奥利质量流量

Robust high-pressure flowmeter with an ultra-compact transmitter.
For premium accuracy at highest process pressures, fully suitable for offshore conditions.

Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 250 (3 to 10").

Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 80...250 (3...10")

测量管：25Cr duplex（超级双相钢）、1.4410 (UNS S32750)
连接部件：25Cr duplex（超级双相钢）、1.4410 (F53)
测量管：1.4539 (904L)
连接

质量流量、密度、温度、体积流量、校正体积流量（API表）、参考密度、浓度

质量流量（液体）：±0.1 %（标准）、0.05 %（可选）
体积流量（液体）：±0.1 %
质量流量（气体）：±0.35 %
密度（液体）：±0.0005 g/cm³

0...800 000 kg/h (0...29 400 lb/min)

PN 250, Cl. 1500

–40...+205 °C (–40...+401 °F)

标准：–40...+60 °C (–40...+140 °F)
可选：–50...+60 °C (–58...+140 °F)

1.4404 (316L)，强耐腐蚀

一体式：铝合金AlSi10Mg涂层
一体式/超紧凑型一体式：1.4404 (316)

标准：IP66/67，Type 4X
可选：IP69

四行背光显示（无现场操作）
通过网页服务器和调试软件设置

4...20 mA HART（有源）
脉冲/频率/开关量输出（无源）

无

HART、Modbus RS485、EtherNet/IP、PROFIBUS DP、PROFINET

20...30 VDC

ATEX, IECEx, cCSAus, INMETRO, NEPSI

在认证标定装置上执行标定（符合ISO/IEC 17025标准）
Heartbeat Technology（心跳技术）符合ISO 9001:2008标准章节7.6 a的溯源校验要求（TÜV认证）

LR approval, DNV approval, ABS approval, BV approval, CCS approval

PED、CRN、AD 2000

3.1材料证书
NACE MR0175/MR0103，PMI，焊接测试遵循EN ISO、ASME、NORSOK标准

科里奥利质量流量

Robust high-pressure flowmeter with an ultra-compact transmitter.
For premium accuracy at highest process pressures, fully suitable for offshore conditions.

Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 250 (3 to 10").

Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server.
Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

DN 80 to 150 (3 to 6")

Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750)
Connection: 25Cr duplex (Super Duplex), 1.4410 (F53)

Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration

Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.35 %
Density (liquid): ±0.0005 g/cm³

0 to 800 000 kg/h (0 to 29 400 lb/min)

PN 250, Class 1500

–40 to +205 °C (–40 to +401 °F)

Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)

1.4404 (316L), highest corrosion resistance

Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4404 (316L)

Standard: IP66/67, type 4X enclosure
Option: IP69

4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible

4‐20 mA HART (active)
Pulse/frequency/switch output (passive)

None

HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

DC 20 to 30 V

ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

CE, C-Tick

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025),
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

LR approval, DNV approval, ABS approval, BV approval

PED, CRN, AD 2000

3.1 material
NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
