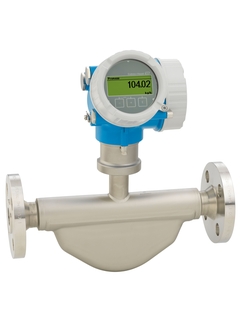

Proline Promass E 200
科里奥利质量流量计

科里奥利质量流量

Genuine loop-powered flowmeter for minimized cost of ownership.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

DN 8...50 (⅜...2")

测量管：1.4539 (904L)
连接部件：1.4404 (316/316L)

质量流量、密度、温度、体积流量、校正体积流量、参考密度

质量流量（液体）：±0.25 %
体积流量（液体）：±0.25 %
质量流量（气体）：±0.5 %
密度（液体）：±0.0005 g/cm³

0...70 000 kg/h (0...2570 lb/min)

PN 100，Cl. 600，63K

–40...+150 °C (–40...+302 °F)

–40...+60 °C (–40...+140 °F)

1.4301 (304)，耐腐蚀

带铝合金AlSi10Mg涂层

IP66/67，Type 4X (外壳)

四行背光显示，触摸键操作（外部操作）
通过现场显示屏和调试软件设置
提供分离型显示单元

4...20 mA HART（无源）
4...20 mA（无源）
脉冲/频率/开关量输出（无源）

无

HART、PROFIBUS PA、FOUNDATION Fieldbus

18...35 VDC（4...20 mA HART，带/不带脉冲/频率/开关量）
18...30 VDC（20 mA HART，4...20 mA）
9...32 VDC（PROFIBUS PA）

ATEX、IECEx、cCSAus、TIIS

CE认证、C-tick认证、EAC认证

功能安全遵循IEC 61508标准，允许在IEC 61511标准规定的安全应用中使用

在认证标定装置上标定（符合ISO/IEC 17025标准）

PED、CRN

3.1材料证书

3-A、EHEDG

科里奥利质量流量

Genuine loop-powered flowmeter for minimized cost of ownership.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

DN 8 to 50 (⅜ to 2")

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Mass flow (liquid): ±0.25 % (standard)
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.50 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 100, Class 600, 63K

–40 to +150 °C (–40 to +302 °F)

–40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

AlSi10Mg, coated

IP66/67, type 4X enclosure

4‐line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available

4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

None

HART, PROFIBUS PA, FOUNDATION Fieldbus

DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)

ATEX, IECEx, cCSAus, JPN, UK Ex, KC

CE, C-Tick

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

PED, CRN

3.1 material

3-A, EHEDG, cGMP
