过程安装支架

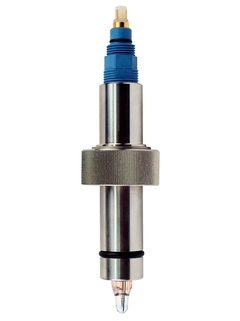

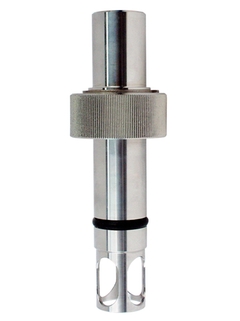

Unifit CPA442
卫生型安装支架,适用于生命科学、食品和饮料行业
Unifit CPA442是应用于卫生和消毒领域中罐体或管道中进行pH/ORP或溶解氧测量的一种简单易用的解决方案。Unifit设计用于在线清洗和消毒,符合EHEDG测试和3A认证标准。可以绝对保证您高品质的产品始终安全,不会受污染。
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
此产品暂未在中国市场销售
-
产品规格参数
-
过程温度
最高140°C
-
过程压力
最大10bar
-
快速选择
个性化配置
-
优势
卫生型设计,符合3A 74-05和EHEDG Cl. I标准
电极密封圈带气密保护(成型密封圈),防止污染
电抛光表面,表面光洁度Ra=0.38 µm或0.76 µm,防止黏附残留
适用于CIP清洗和SIP清洗
-
多种卫生型过程连接和法兰可供选择,灵活匹配各类应用场合
-
应用领域
Unifit CPA442可用于储罐和管道测量的固定安装:
食品和饮料行业
生命科学领域
水处理行业
化工行业
可用于压力不超过 12 bar (不锈钢)的测量场合
文档/手册/软件
-
技术资料
Unifit CPA442
过程安装支架
技术信息(TI) -
Operating Instructions
Unifit CPA442
Process assembly
For installation of 120 mm sensors in food industry, biotechnology and
chemical industry操作手册(BA) -
Manufacturer Declaration
TSE/BSE free
证书(ZE) -
Expertise in liquid analysis
From sensors to complete turnkey solutions
实际应用(FA)03/19英语 -
Kompetenz in der Flüssigkeitsanalyse
Vom Sensor bis zur schlüsselfertigen Komplettlösung
实际应用(FA)03/19德语 -
Jistota v analýze kapalin
Od senzorů po kompletní dodávku na klíč
实际应用(FA)01/17捷克语 -
Catálogo Portfolio Analítica
Desde sensores hasta soluciones completas
实际应用(FA)01/17西班牙语 -
Esperti nell’analisi dei liquidi
Dai sensori singoli a soluzioni
complete “chiavi in mano”实际应用(FA)01/17意大利语 -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
竞争力手册(CP)08/15日语 -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
竞争力手册(CP)04/15英语 -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.竞争力手册(CP)04/11英语 -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidance竞争力手册(CP)02/12英语 -
Optimal dosing of oxygen for yeast propagation
Oxymax H COS21D in use in a brewery
案例分析(CS)09/08英语 -
UniFit H
产品型号: CPA442-
一致性声明编号: HE_00679_02.17
制造商规格: 1935/2004Manufacturer Declaration德语 , 英语 -
UniFit H
产品型号: CPA442-
一致性声明编号: FDA_00228_01.19FDA Declaration德语 , 英语 -
UniFit H
产品型号: CPA442-
一致性声明编号: FDA_00227_01.19FDA Declaration德语 , 英语
