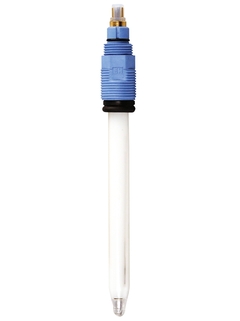

模拟式pH电极Orbipore CPS91
基于电位测量原理计算液体的pH值。视频介绍了测量原理的工作原理。
玻璃电极，适用于化工过程、造纸或油漆生产中的严重污染介质测量
Orbipore CPS91模拟式电极专用于纤维化介质或悬浮液、乳液介质和沉淀反应测量。开孔设计可以防止污染，确保在极端过程条件下进行最可靠的测量。
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量范围
pH 0...14
-
过程温度
最高110°C
(230°F) -
过程压力
最大10 bar
(145 psi)
-
附加组件
-
优势

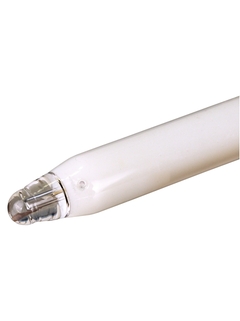

采用开孔结构设计，适用于重度污染介质的测量
采用稳定的凝胶电解液，低维护量，使用寿命长
不受压力和温度波动的影响
-
应用领域
化工过程
纸浆和造纸行业
污染介质和悬浮固体
-分散液
-沉淀液
-乳液
通过ATEX、FM和CSA认证，可以在危险区中使用。
