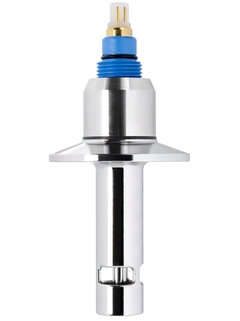

Condumax CLS16B is an analog conductivity sensor for hygienic applications

Analog conductivity sensor
Condumax CLS16B

Contacting conductivity sensor for hygienic applications in the food & beverage and life sciences industries

CLS16B
Please Wait (spinning wheel)
价格核算中…
暂时无价格信息
Price on request
正在激活价格
价格:提供信息
from CHF ??.-

产品规格参数

  • 测量范围

    k=0.1:0.04...500 µS/cm

  • 过程温度

    最高120°C (150°C/30 min)
    最高 248°F (302°F/30 min.)

  • 过程压力

    最高12 bar,20°C
    (174 psi,68°F)

应用领域

Condumax CLS16B is an analog sensor for precise measurement in the low conductivity range of pure and ultrapure water. Its certified hygienic design complies with the relevant standards EHEDG, USP Class VI and ASME-BPE. Various hygienic process connections ensure the perfect fit for your process.

Condumax CLS16B measures conductivity in pure and ultrapure water for the monitoring of:

  • Ion exchangers

  • Reverse osmosis

  • Distillation

  • Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the analog sensor is suitable for hazardous area use.

优势

  • Perfectly suited to life sciences and food & beverage: Complies with EHEDG, ASME, FDA and USP Class VI

  • Hygienic: Autoclavable, sterilizable and suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Accurate: Cell constant of the sensor is measured individually

  • Robust: Electropolished stainless steel body for corrosion-free operation and easy cleaning

  • Long-operating life: Replaceable, hygienic EPDM/PEEK sealing
