一体化电导率测量

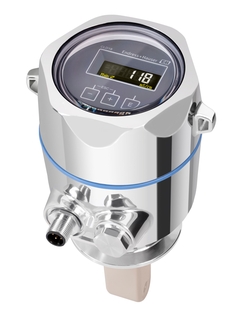

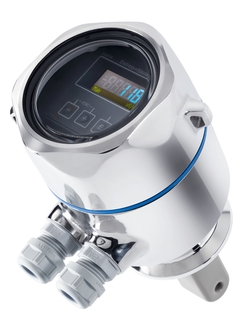

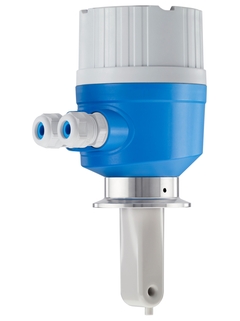

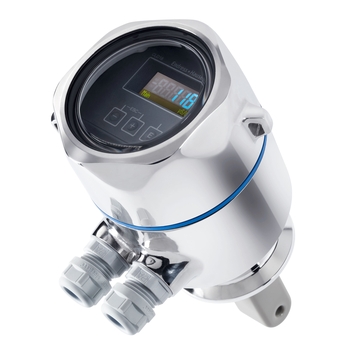

Smartec CLD18
卫生型环形电导率测量系统
Smartec CLD18是适用于饮料行业各类应用的经济型解决方案,它使用小管道测量和作为开关使用的环形测量。传感器和变送器一体化结构,抗干扰且易于使用,卫生型设计可以保护产品和生产过程不受二次污染。基于快速和可靠的CIP和相位分离测量,Smartec CLD18确保工厂的整个设备运行效率(OEE)。
- F
- L
- E
- X
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量范围
200µS/cm...1000mS/cm
电极常数:11.0/cm 1/cm -
过程温度
过程温度:-10...110°C
(14...230°F)
高温消毒:130°C/5 bar(最多60分钟)
(266°F/72.5 psi) -
过程压力
12 bar(174 psi)/20°C(68°F)
5 bar(72.5 psi)/130°C(266°F)
-
快速选择
个性化配置
-
优势
独特的卫生型设计,避免二次污染
3A 认证
符合 EG 2023/2006 和1935/2004标准
适用于CIP
一体化结构,允许小管道安装,不限制流量
-
应用领域
Smartec CLD18采用卫生型设计,适用于饮料行业环形电导率测量 :
回流管道中的CIP处理过程控制
CIP清洗剂重制的浓度控制
管道系统、灌瓶装置产品监测
啤酒与顶水间的界面分离检测
啤酒和水在酿造管线中的切断检测
泄露监测
采用以下通信协议和界面:
0/4...20mA
