产品规格参数
-
测量范围
0.1 to 10 mg/l total chlorine
-
过程温度
5 to 45 °C
(41 to 113 °F) -
过程压力
1 to 4 bar (14.5 to 58 psi)
-
Measuring method
Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent
应用领域
总氯是余氯和结合氯的总称,也是排放水残留消毒剂浓度指标。CCS120D可靠监测排放口的总氯限值。由于电解液和覆膜帽更换便捷,显著降低了维护成本。CCS120D采用Memosens数字式技术,具有最高过程安全性和数据完整性。传感器防潮防腐蚀,允许在实验室中标定,实现设备预维护。

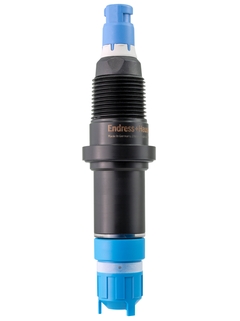

Memosens CCS120D用于总氯测量:
污水处理厂
- 污水排放口的消毒剂监测和控制
- 出水循环再使用
各行业中的公用工程
- 所有消毒测量点
优势
采用Memosens数字式技术,操作简单
储存传感器参数和过程参数,允许预维护
快速更换覆膜帽和电解液,维护工作量低

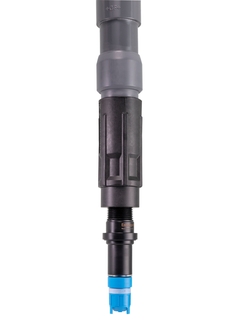

灵活安装在CYA112浸入式安装支架或CCA250流通式安装支架中
与Liquiline多通道变送器配套使用,能够同时测量其他相关水质参数。
演示视频
-
Memosens将测量值转换成数字信号,并通过非接触感应传输方式将信号发送至变送器。视频介绍了Memosens如何优化过程控制和维护。

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
总氯
-
应用
Wastewater treatment plants, disinfection monitoring and control in wastewater outlet, reuse of outlet water, utilities of all industries, all disinfection measuring points
-
特点
Amperometric measurement of total chlorine
-
测量范围
0.1 to 10 mg/l total chlorine
-
Measuring method
Total chlorine consists of free chlorine (HOCl, OCl-) and bound chlorine (chloramines)
All components are reduced at the working electrode
Almost pH independent -
设计
Closed, membrane covered measuring cell
-
材质
Sensor shaft: PVC
Membrane: PET
Membrane cap: PPE -
外形尺寸
Diameter: 25 mm (0.98 inch)
Length: 148 mm (5.83 inch) -
过程温度
5 to 45 °C
(41 to 113 °F) -
过程压力
1 to 4 bar (14.5 to 58 psi)
-
温度传感器
10k NTC integrated (Memosens)
-
连接
Inductive, digital connection head with Memosens
