Depending on the path length and the application the measuring range vary: TOCeq: 0 to 400 mg/l CODeq: 0 to 20 000 mg/l BODeq: 0 to 5000 mg/l SAC254: 0 to 1000 /m TU: 0 to 800 FAU TSS: 0 to 10 000 mg/l NO3-N: 0 to 500 mg/l APHA/Hazen: 0 to 500 Hazen
Monitoring of WWTP in- and outlet Drinking water and surface water
安装
Insitu (immersion in process), extractive with sample and flow cell
特点

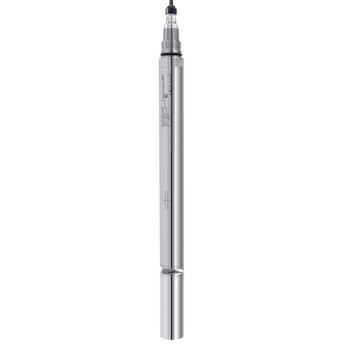

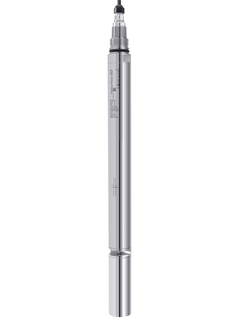

Insitu (immersion in process), extractive with sample and flow cell UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
测量范围
"Depending on the path length and the application the measuring range vary: TOCeq: 0 to 400 mg/l CODeq: 0 to 20 000 mg/l BODeq: 0 to 5000 mg/l SAC254: 0 to 1000 /m TU: 0 to 800 FAU TSS: 0 to 10 000 mg/l NO3-N: 0 to 500 mg/l APHA/Hazen: 0 to 500 Hazen
测量原理
UV/VIS absorbance at 200 to 800 nm
设计
40 mm
材质
Housing: stainless steel or titanium Windows: sapphire or quartz O-rings: EPDM
外形尺寸
571.4 x 40 mm 21.5 x 1.6 in
过程温度
0 to 50°C 32 to 122 °F
过程压力
0.5 to 10 bar abs. 7.3 to 145 psi
温度传感器
-20 to 60°C -4 to 140 °F
连接
G1 and NPT 3/4"
防护等级
IP68
测量原理
紫外光吸收（UV）
应用
Monitoring of WWTP in- and outlet, drinking water and surface water
特点
Insitu (immersion in process) Extractive with sample and flow cell UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
测量范围
Depending on the path length and the application the measuring range vary: TOCeq: 0 to 400 mg/l CODeq: 0 to 20 000 mg/l BODeq: 0 to 5000 mg/l SAC254: 0 to 1000 /m TU: 0 to 800 FAU TSS: 0 to 10 000 mg/l NO3-N: 0 to 500 mg/l APHA/Hazen: 0 to 500 Hazen
设计
40 mm
材质
Housing: stainless steel or titanium Windows: sapphire or quartz O-rings: EPDM
过程温度
0 to 50°C 32 to 122 °F
过程压力
0.5 to 10 bar abs. 7.3 to 145 psi
温度传感器
-20 to 60°C -4 to 140 °F
连接
G1 and NPT 3/4"
防护等级
IP68
测量原理
紫外光吸收（UV）
特点
Insitu (immersion in process), extractive with sample and flow cell UV/VIS spectrometer for measurement of TOCeq, CODeq, BODeq, SAC254, TU/TSS, Nitrate, APHA/Hazen color
Measuring method
UV/VIS Absorbance at 200 to 800 nm
尺寸
571.4 x 40 mm 21.5 x 1.6 in
设计
40 mm
过程温度
0 to 50°C 32 to 122 °F
环境温度
-20 to 60°C -4 to 140 °F
过程压力
0.5 to 10 bar abs. 7.3 to 145 psi
特殊要求
G1, NPT3/4 IP68 (1m/3,3ft) water column with 1N KCl during 60 days
应用
Monitoring of WWTP in- and outlet Drinking water and surface water
测量范围
Depending on the path length and the application the measuring range vary: TOCeq: 0 to 400 mg/l CODeq: 0 to 20 000 mg/l BODeq: 0 to 5000 mg/l SAC254: 0 to 1000 /m TU: 0 to 800 FAU TSS: 0 to 10 000 mg/l NO3-N: 0 to 500 mg/l APHA/Hazen: 0 to 500 Hazen
