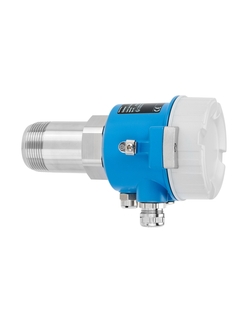

微波限位发射器
Soliwave FQR57

Soliwave FQR57 ©Endress+Hauser
Soliwave FQR57 ©Endress+Hauser

进行非接触式限位检测和固体散料流量监测的变送器

Soliwave微波限位栅采用非接触式方式进行限位检测和固体散料的流量监测(非零流量/零流量、流量趋势)。仪表可用于检测和计数,检测沉积物并且监测进料过程和物料传输数量。它可以安装在容器中、水渠中、堆料上、进料站中、泵站中、过滤器中或其他各类自由落料的矿井中。允许在非金属容器外部进行测量。

  • 简易产品

  • 轻松执行仪表选型、安装和操作

仪表技术性能

选型便捷程度

  • 标准产品

  • 测量可靠、坚固耐用、低维护需求

仪表技术性能

选型便捷程度

  • 高端产品

  • 功能丰富,适用范围广

仪表技术性能

选型便捷程度

  • 定制产品

  • 专门针对严苛工况设计

仪表技术性能

选型便捷程度

特殊选型

FLEX产品选型 仪表技术性能 选型便捷程度
  • F
  • L
  • E
  • X

Fundamental选型

完美胜任基本测量任务

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Lean选型

轻松应对关键工艺的测量挑战

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Extended选型

创新技术助力工艺流程优化

仪表技术性能
选型便捷程度
  • F
  • L
  • E
  • X

Xpert选型

满足严苛工况的特殊测量要求

仪表技术性能
选型便捷程度

特殊选型

此产品暂未在中国市场销售

  • 产品规格参数

    • 过程温度

      非接触式安装:任意
      在安装范围内:
      -40 °C...+70 °C (-40 °F...+158 °F)
      带高温转接头:
      最高+450 °C (+842 °F)

    • 过程压力(绝压)/最大过压限定值

      非接触式安装:任意
      在安装范围内:
      0.5 bar ... 6.8 bar (7.2 psi ... 99 psi),绝压
      带HD接头:
      最大+21 bar (+305 psi),绝压

    • 最小介质密度

      固体重量:> 10 g/l

please wait Loading alternative products

快速选择

从我们建议的选项中选择
售价
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

个性化配置

从所有可用选项中继续选择
  • 优势

    • 通过R 1½、1½ NPT螺纹或G 1½(带锁紧螺母)便捷地进行安装

    • 仪表坚固耐用,在整个生命周期内均经济地运行:无磨损、过程接液部件采用陶瓷传感器膜片(可选)、长使用寿命、免维护

    • 可选内置固体散料流量监测功能,提高了限位检测的安全性

    • 测量原理几乎不受过程属性的影响

    • 可以在其他测量方法使用受限的严苛工况下使用

    • 通过带图形显示屏的Nivotester FTR525简单操作,节约了时间,节省了成本

  • 应用领域

    固体散料的非接触式(无磨损、免维护)限位检测(低限/高限)和流量监测(非零流量/零流量、流量趋势)。

    • 提供检测、计数和定位功能

    • 检测和分析过滤器中的沉积物和污染物

    • 监测进料过程

    • 监测物料传输数量

    • 允许在最高温度不超过450°C (+842°F)的应用场合中使用

    • 允许在最大压力不超过20bar (+290psi)的应用场合中使用

    • 通过国际防爆认证

特征和规格

返回

Details

  • 测量原理

    微波安全栅

  • 特点/应用

    变送器
    非接触式限位检测和流量监测
    检测、计数和物位测量
    物料传输点监测
    沉积物和污染检测和分析

    非接触式安装方式:
    从外部发射波束

    在安装位置处:
    在安装位置处发射波束(接触式)

  • 特点

    可选内置固体散料流量监测功能
    最多5个通道同时工作
    最大检测范围为100 m
    最大流量检测范围为10米,与固体散料相关

  • 电源/通信

    使用带控制单元Nivotester FTR525的过程变送器

  • 环境温度

    -40...+70 °C
    (-40...+158 °F)

  • 过程温度

    非接触式安装:任意
    在安装范围内:
    -40 °C...+70 °C (-40 °F...+158 °F)

    带高温转接头:
    最高+450 °C (+842 °F)

  • 过程压力(绝压)/最大过压限定值

    非接触式安装:任意
    在安装范围内:
    0.5 bar ... 6.8 bar (7.2 psi ... 99 psi),绝压

    带HD接头:
    最大+21 bar (+305 psi),绝压

  • 最小介质密度

    固体重量:> 10 g/l

  • 主要接液部件

    非接触式安装:
    非接液部件
    在安装范围内:
    316Ti或铝; PTFE或陶瓷

  • 过程连接

    螺纹:
    1-1/2" R、1-1/2" G、1-1/2" NPT

  • 通信

    使用带控制单元Nivotester FTR525的过程变送器

  • 证书和认证

    ATEX、CSA C/US、IEC Ex

  • 设计认证

    EN10204-3.1

  • 选项

    观视玻璃窗
    高温接头
    高温接头
    安装架
    FAR50、FAR51、FAR52、FAR53、FAR54、FAR55

  • 组件

    接收器:FDR57
    过程变送器:FTR525

  • 应用限制

    固体重量:< 10 g/l
