雷达测量

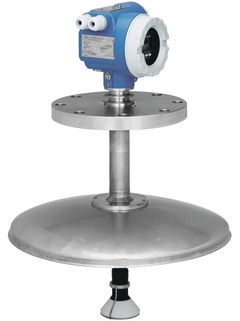

Micropilot FMR533
满足计量交接测量要求,特别适用于测量范围在40m以内任意空间的测量
Micropilot FMR533通过NMi和PTB认证,可用于计量交接和库存控制等测量场合,符合OIML R85和API 3.1B相关标准要求。FMR533配备抛物面天线,尤其适合测量范围在40m(131ft)以内任意空间的测量。Micropilot FMR533采用4线制电缆,HART和24VDC本质安全型供电,成本经济,安装简便。
-
优势
精度:0.5 mm (2σ 值)
通过NMii和PTB国家认证,可用于计量交接
系统可单独使用,也可通过与罐旁指示仪NRF590与储罐液位测量系统配套使用
通过菜单式的字母数字显示器,现场操作简便
利用FDT/DTM技术(FieldCare)软件,方便调试、文件建档和故障诊断
根据应用工况选配探头。锥形导波管可选用直接安装的平板探头
所有探头采用密封过程连接标准(第二道防线)
-
应用领域
使用抛物面天线,可以完美测量自由空间,测量范围达40m (131ft).
过程连接:法兰
温度范围: -40 至 +200°C (-40 至 +392°F)
压力范围:真空 至 +16bar (真空 至 +232psi)
最大测量范围:40m (131ft)
精度误差:小于 ±1mm
C-波段:6GHz
国际防爆认证, 计量交接认证, WHG溢出保护, SIL
