此产品暂未在中国市场销售
产品规格参数
-
过程温度
Non-contact installation: any
Within installation:
–20 °C ... +60 °C (–4 °F ... +140 °F)
With HT-Adapter:
up to +450 °C (+842 °F) -
过程压力(绝压)/最大过压限定值
Non-contact installation: any
Within installation:
0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
With HP-Adapter:
up to +21 bar (+305 psi) abs. -
最小介质密度
Solid weight: > 10 g/l
应用领域

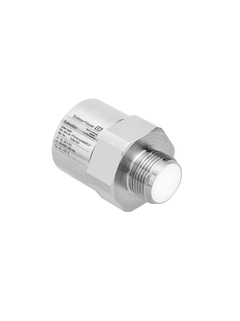

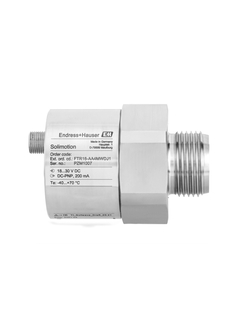

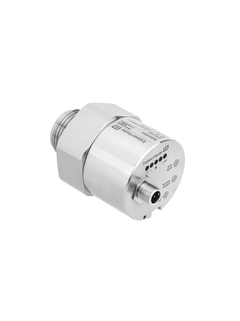

Solimotion FTR16是超紧凑型微波流量检测仪,可靠对通过气动和机械方式传送的固体散料进行高效监测。同时,它还可以安装在操作困难位置或狭小空间内使用。可以在非金属罐体的外部测量。
Solimotion FTR16是质量流量监测的理想选择,可以高效监测固体散料的传输过程。按需执行参数设置,针对实际应用灵活调节。仪表满足不同行业的使用要求,应用广泛,比如基础原材料、能源和食品行业。
优势
非接触式测量原理 — 过程特性不会干扰检测过程
高安全性 — 配备永久自诊断和全面自检功能
首款固体散料流量检测仪,IP69防护等级
符合欧盟1935/2004标准的要求
调试简单,性价比高
安全检测 —— 非接触式测量方法,无磨损、免维护、连续工作
坚固耐用 —— 不锈钢外壳

FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
测量原理
微波安全栅
-
特点/应用
Flow indicator for bulk solids
Non-contact motion detection (movement / no movement)
of pneumatically or mechanically conveyed bulk solids of all kinds,
also in potentially explosive atmospheres (dust Ex) -
特点
Detection range: max. 5 m
Detectable velocity: 0.09 m/s ... 62 m/s -
电源/通信
18 V ... 30 V DC,
Plug M12 -
环境温度
-20 °C ... +60 °C (-4 °F ... +140 °F)
-
过程温度
Non-contact installation: any
Within installation:
–20 °C ... +60 °C (–4 °F ... +140 °F)
With HT-Adapter:
up to +450 °C (+842 °F) -
过程压力(绝压)/最大过压限定值
Non-contact installation: any
Within installation:
0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.
With HP-Adapter:
up to +21 bar (+305 psi) abs. -
最小介质密度
Solid weight: > 10 g/l
-
主要接液部件
Non-contact installation:
no wetted parts
Contact installation:
316L, PTFE -
过程连接
ISO228-1: G1", G1-1/2"
ASME: NPT1-1/2" -
卫生型过程连接
Non-contact installation
-
通信
3-wire-DC-PNP,
2 DC-PNP-outputs -
证书和认证
ATEX, IEC Ex
-
设计认证
EN10204-3.1
-
卫生型认证
EG1935/2004
-
选项
Mounting bracket
Counternut
Welding sleeve
Connection cable
Connecting cable
High-pressure adapter
High-temperature adapter
Extension for HT adapter
Mounting flange
Sight glass fitting
FAR50, FAR51, FAR52, FAR54 -
应用限制
Solid weight: < 10 g/l
