导波雷达测量
行程时间原理

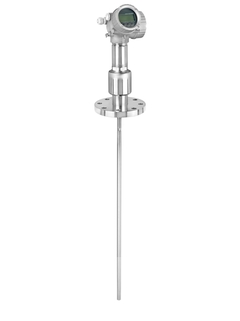

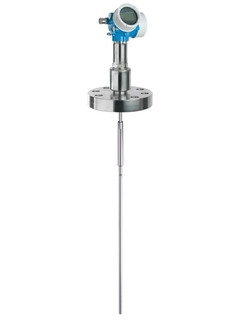

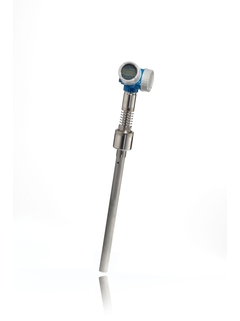

Levelflex FMP54
特别适用于油气、化工和电力等行业的高温高压测量场合
Levelflex FMP54适用于极端工况下的液位连续测量。采用陶瓷-石墨密封的过程连接,能保证在高温高压场合的使用安全,例如用于蒸汽锅炉和有毒介质(如液氨)的液位测量。同时,气密馈通能提供更高的安全性。在高压的带气相层的液位测量中,只有带气相补偿技术的FMP54才能提供准确可靠的测量结果。测量稳定可靠,不受液面波动、泡沫或介质变化的影响。
- F
- L
- E
- X
FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
杆式探头:+/- 2 mm (0.08 in)
缆式探头<= 15 m (49 ft):
+/- 2 mm (0.08 in)
Rope probe > 15 m (49 ft):
+/- 10 mm (0.39 in)
同轴探头:+/- 2 mm (0.08 in) -
过程温度
增温型(XT):-196...+280 °C
(-321...+536 °F)
高温型(HT):-196...+450 °C
(-321...+842 °F) -
过程压力(绝压)/最大过压限定值
真空...400 bar
(真空...5800 psi) -
最大测量距离
杆式探头:
10 m (33 ft);最小介电常数DK>1.6
缆式探头:
25...30 m (82...98 ft);最小介电常数DK>1.6;
30...45 m (98...148 ft);最小介电常数DK >1.9
同轴探头;最小介电常数DK>1.4 -
主要接液部件
杆式探头:
304、316L、Alloy C合金、陶瓷
缆式探头:
304、316、316L、Alloy C合金、陶瓷
同轴探头:
304、316L、Alloy C合金、陶瓷
-
快速选择
个性化配置
-
优势
即使在多变的测量产品或过程条件下,依然保持可靠测量
HistoROM集成数据存储单元,带来快速便捷的调试、维修和诊断
多回波追踪创新技术,为测量结果带来高度可靠性
硬件与软件根据IEC 61508标准开发,达到SIL3级别
心跳技术,在整个生命周期内实现高效、安全的工厂运营
无缝集成到控制或资产管理系统,直观的引导式操作概念(现场或通过控制系统)
-
通过世界权威的SIL和WHG实验认证,节约您的时间与经济成本
-
应用领域
可选择杆式、缆式或同轴杆测量。
过程连接:1½" 螺纹或法兰
温度:-196 到 +450°C (-320 到 +842°F)
压力:-1 到 +400bar (-14.5 到 +5,800psi)
最大测量范围:杆式 10m (33ft), 缆式 45m (148ft), 同轴杆 6m (20ft)
测量误差:杆式 ±2mm (0.08")
国际防爆保护认证, WHG溢出保护, SIL, 船级认证, 蒸汽锅炉认证, 5点线性协议
