导波雷达测量
行程时间原理

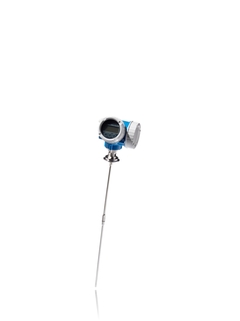

Levelflex FMP53
满足生命科学和食品行业的最高卫生要求
Levelflex FMP53用于卫生要求高的食品和生命科学行业的连续物位测量。FMP53符合ASME BPE和USP VI级的卫生要求。FMP53不需要从过程中拆除，可在原位清洗，具有独特的成本优势。即使液面出现波动、产生泡沫、介质变化或喷头堵塞，FMP53也能保持最稳定的测量值。
- F
- L
- E
- X
| FLEX产品选型 | 仪表技术性能 | 选型便捷程度 |
|---|---|---|
Fundamental选型 完美胜任基本测量任务 |
仪表技术性能
|
选型便捷程度
|
Lean选型 轻松应对关键工艺的测量挑战 |
仪表技术性能
|
选型便捷程度
|
Extended选型 创新技术助力工艺流程优化 |
仪表技术性能
|
选型便捷程度
|
Xpert选型 满足严苛工况的特殊测量要求 |
仪表技术性能
|
选型便捷程度
特殊选型 |
-
产品规格参数
-
测量精度
杆式探头：+/- 2 mm (0.08 in)
-
过程温度
–20...+150 °C
(–4...+302 °F) -
过程压力（绝压）/最大过压限定值
真空...16 bar
(真空...232 psi) -
最大测量距离
杆式探头：6 m (20 ft)
最小介电常数DK>1.6 -
主要接液部件
杆式探头：
304、304L、316L、PEEK
-
Loading alternative products
-
优势
即使在多变的测量产品或过程条件下，依然保持可靠测量
HistoROM集成数据存储单元，带来快速便捷的调试、维修和诊断
多回波追踪创新技术，为测量结果带来高度可靠性
硬件与软件根据IEC 61508标准开发，达到SIL3级别
心跳技术可确保整个生命周期内的高成本效益和工厂安全运行
无缝集成到控制或资产管理系统，直观的引导式菜单操作理念（现场或通过控制系统）
通过世界权威的SIL和WHG实验认证，节约您的时间与经济成本
-
应用领域
可采用杆式连接。
过程连接：用于卫生需求（卡箍连接, 11851, 11864, NEUMO, Varivent N, SMS)
温度：-20 到 +150°C (-4 到 +302°F)
压力：-1 到 +16bar (-14.5 到 +232psi)
最大测量范围：杆式 6m (20ft)
精度误差：±2mm (0.12")
国际防爆保护认证, WHG溢出保护, SIL, 卫生型认证, 5点线性协议
文档/手册/软件
-
Weld-in adapter, process adapter and flanges
Level and pressure measurement
技术信息(TI) -
Levelflex FMP53
Guided wave radar
技术信息(TI) -
Levelflex FMP53
HART
Guided wave radar
操作手册（BA） -
Levelflex FMP53
PROFIBUS PA
操作手册
导波雷达液位计
操作手册（BA） -
Levelflex FMP53
FOUNDATION Fieldbus
操作手册
导波雷达液位计
操作手册（BA） -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
FOUNDATION Fieldbus
Description of Device Parameters
Guided wave radar
仪表参数 (GP) -
Levelflex FMP5x
HART
Description of Device Parameters
Guided wave radar
仪表参数 (GP) -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
PROFIBUS PA
Description of Device Parameters
Guided wave radar
仪表参数 (GP) -
Levelflex FMP53
FOUNDATION Fieldbus
简明操作指南
导波雷达液位计
Short Instruction (KA)04/18英语 -
Levelflex FMP53
HART
简明操作指南
导波雷达液位计
Short Instruction (KA)04/18英语 -
Levelflex FMP53
PROFIBUS PA
简明操作指南
导波雷达液位计
Short Instruction (KA)04/18英语 -
Terminal set
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x, Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,安装指南(EA) -
Set housing security clamp
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,安装指南(EA) -
Set HF cable for compact and remte versions
Installation Instruction
Levelflex
安装指南(EA) -
Housing filter
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,安装指南(EA) -
Sealing kit for FMP53
Installation instruction
Levelflex
安装指南(EA) -
Cover
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200, Remote display FHX50安装指南(EA) -
Replacing the main electronics module
Installation Instructions
Promass 200 / TB2, Prosonic Flow 200, Promag 200
安装指南(EA) -
M12 connector, IP66/68 NEMA4X/6P, ProToF
Installation Instructions
Levelflex FMP5x
Micropilot FMR5x, FMR6x安装指南(EA) -
Main electronics module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x
安装指南(EA) -
Display module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x
安装指南(EA) -
Probe rod for FMP53
Installation instruction
Levelflex
安装指南(EA) -
I/O module
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,安装指南(EA) -
Coax cable for FMP53
Installation instruction
Levelflex
安装指南(EA) -
Sensor body
Installation instruction
Levelflex
安装指南(EA) -
Process connection for FMP53
Installation instruction
Levelflex
安装指南(EA) -
Transmitter electronics FHX50
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200,安装指南(EA) -
Housing plug M12 for connection of FHX50
Installation Instruction
Levelflex, Micropilot
安装指南(EA) -
Sealing set
Installation Instructions
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x Promag 200, Promass
200, Prosonic Flow 200, Prowirl 200, Remote display FHX50安装指南(EA) -
Replacing the display module
Installation Instructions
Promag 200, Promass 200, Prosonic Flow 200, Prowirl 200, t-mass 150,
Levelflex FMP5x, Micropilot FMR5x, Micropilot FMR6x, Remote dis
play FHX50安装指南(EA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia IIC T1-T6 Ga
Ex ia IIC T1-T6 Ga/Gb
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
2Ex ic IIC T6...T1 Gc X
2Ex nA IIC T6...T1 Gc X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
0Ex ia IIC T6...T1 Ga X
Ga/Gb Ex ia IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ex ia IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, 4...20 mA
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
Ex ia IIC T1-T6 Ga/Gb
Ex d [ia] IIC T1-T6 Ga/Gb
安全指南
导波雷达物位计
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1 G Ex ia IIC T6-T1 Ga
II 1/2 G Ex ia IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/GbEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
II 1/2 D Ex ta/tb IIIC T85°C Da/Db
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Ex ta/tb IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex ic IIC T6-T1 Gc
INMETRO IEE 11.0076X (INMETRO)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 3 G Ex ic IIC T6...T1 Gc
II 3 G Ex nA IIC T6...T1 Gc
IECEx:
Ex ic IIC T6...T1Gc
Ex nA IIC T6...T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
FM C/US IS Cl. I, Div. 1, Groups A-D, Cl. I, Zone 0, AEx ia/Ex ia IIC
FM C/US IS Cl. I, II, III, Div. 1, Groups A-G, Cl. I, Zone 0, AEx ia/Ex
ia IIC; NI Cl.
I, Div. 2, Groups A-D
FM/CSA IS + XP-AIS Cl. I, Div. 1, Groups A-D, DIP Cl. II, III, Div. 1,
Groups E-GEx 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex d [ia] IIC T6-T1 Ga/GbEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
INMETRO:
Ex ia/db [ia Ga] IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb
II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga/Gb
Ex d [ia] IIC T6-T1 Ga/GbEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
NEPSI：
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
安全指南
导波雷达液位计
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
Zone 0/1 Ex d [ia] IIC T6-T1
11-KB4BO-0256X (KC)Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
II 1/2 D Ex ta IIIC Txx°C Da/Db
IECEx: Ex d [ia] IIC T6-T1 Ga/Gb
Ex ta IIIC Txx°C Da/DbEx 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, 4...20 mA
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1 G Ex ia IIC T6...T1 Ga
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga
Ex ia IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMR50/51/52/53/54/55/56/57
FM
ATEX
IECExEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
II 1/2 D Ex ta/tb IIIC T85°C Da/Db
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Ex ta/tb IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: B (2-wire, switch output (PFS))
Ex ia IIC T6-T1 Ga
DEKRA 13.0006 X (INMETRO)Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
4-wire
Ex d [ia] IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
0Ex ia IIC T6...T1 Ga X
Ga/Gb Ex ia IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia IIC T1-T6 Ga/Gb
Ex iaD 20/21 T
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia IIC T1-T6 Ga/Gb
Ex iaD 20/21 T
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
4-wire
Ex nA IIC T6-T1 Gc
GYJ11.1553X (KC)Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex ic IIC T6-T1 Gc
II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 GcEx 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
4-wire
Ex d [ia] IIC T6-T1 Ga/Gb
DIP A20/21 TA, T IP6X
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ex ia IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 1 G Ex ia IIC T6-T1 Ga
II 1/2 G Ex ia IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/GbEx 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex nA IIC T6-T1 GcEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1 G Ex ia IIC T6...T1 Ga
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
IECEx:
Ex ia IIC T6...T1 Ga
Ex ia IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: B (2-wire, switch output (PFS))
Ex ic IIC T6-T1 Gc
DEKRA 13.0006 X (INMETRO)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
ATEX:
II 1/2 G Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
IECEx:
Ex ia/db [ia Ga] IIC T6...T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Bluetooth® module BT10
Suitable for Micropilot FMR5x, FMR6x and Levelflex FMP5x with 4-20 mA
HART
Certified according to:
ATEX/IECEx:
Ex ia, Ex ia/db,Ex ic, Ex ia/ic,
Ex ec, Ex ia/ec, Ex d,
Ex nA, Ex ia/nA, Ex ta, Ex ta/tb
EPL:
Ga, Ga/Gb, Gc, Ga/Gb/Gc, Da, Da/DbEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 D Ex ia IIIC T85°C Da/Db
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
NEPSI：
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
安全指南
导波雷达液位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia IIC T1-T6 Ga
Ex ia IIC T1-T6 Ga/Gb
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex d [ia] IIC T6-T1 Ga/Gb
INMETRO IEE 11.0076X (INMETRO)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Ex tD A20/21 IP6X T
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Zone 0 Ex ia IIC T6-T1
Zone 0/1 Ex ia IIC T6-T1
11-KB4BO-0257X (KC)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: C (2-wire, 4...20 mA)
Ex ia IIC T6-T1 Ga
DEKRA 13.0006 X (INMETRO)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 1/2 G Ex ia IIC T6...T1 Ga/Gb
II 1/2 D Ex ia IIIC T85°C Da/Db
IECEx:
Ex ia IIC T6...T1 Ga/Gb
Ex ia IIIC T85°C Da/Db
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Power Supply; Output: C (2-wire, 4...20 mA)
Ex ic IIC T6-T1 Gc
DEKRA 13.0006 X (INMETRO)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ia/d [ia Ga] IIC T1-T6 Ga/Gb
Ex tD A20/21 IP6X T
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb
II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
IECEx: Ex ia IIC T6-T1 Ga/Gb
Ex d [ia] IIC T6-T1 Ga/GbEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
Ex ia IIC T1-T6 Ga/Gb
Ex d [ia] IIC T1-T6 Ga/Gb
安全指南
导波雷达物位计
Ex 防爆说明(XA) -
Levelflex FMP51/52/54/55
ATEX:
II 1/2/3 G Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
II 1/2/3 G Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
IECEx:
Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
INMETRO:
Ex ia/db [ia Ga] IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
INMETRO:
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
Ex ia IIC T6-T1 Ga
INMETRO IEE 11.0076X (INMETRO)Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55
4-20 mA HART
Power Supply; Output: K, L (4-wire)
Ex d [ia] IIC T6-T1 Ga/Gb
DEKRA 13.0006 X (INMETRO)Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, switch output (PFS)
Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 Gc
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing IS
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
ATEX: II 3 G Ex ic IIC T6-T1 Gc
II 3 G Ex nA IIC T6-T1 Gc
IECEx: Ex ic IIC T6-T1 Gc
Ex nA IIC T6-T1 GcEx 防爆说明(XA) -
Levelflex FMP51/52/54/55
ATEX:
II 1/2/3 G Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
II 1/2/3 G Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
IECEx:
Ex ia/ic [ia Ga] IIC T6...T1 Ga/Gb/Gc
Ex ia/nA [ia Ga] IIC T6...T1 Ga/Gb/Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
2Ex ic IIC T6...T1 Gc X
2Ex nA IIC T6...T1 Gc X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ic IIC T1-T6 Gc
Ex nA IIC T1-T6 Gc
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia IIC T6...T1 X
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Ex ta/tb IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
ATEX:
II 3 G Ex ic IIC T6...T1 Gc
II 3 G Ex nA IIC T6...T1 Gc
IECEx:
Ex ic IIC T6...T1 Gc
Ex nA IIC T6...T1 Gc
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
4-20 mA HART
2-wire, switch output (PFS)
Ex ia IIC T6-T1 Ga
Ex ia IIC T6-T1 Ga/Gb
GYJ11.1553X (NEPSI)Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
EAC:
Ga/Gb Ex ia/db [ia Ga] IIC T6...T1 X
Ex ta/tb IIIC Txx°C Da/Db X
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Safety Instructions
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP/DIP
FM C/US XP-AIS Cl. I, Div. 1, Groups A-D, Cl. I, Zone 1, AEx d [ia]
IIC/Ex d [ia] IIC
FM C/US DIP Cl, II,III, Div. 1, Groups E-G
FM C/US XP-AIS Cl. I, II, III, Div. 1, Groups A-G, Cl. I, Zone 1, AEx d
[ia] IIC/Ex d
[ia] IIC, NI Cl. I,Div. 2, Groups A-D
FM/CSA IS+XP-AIS Cl. I, Div. 1, Groups A-D, DIP Cl. II, III, Div. 1,
Groups E-GEx 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
Control Drawing XP
Safety Instructions
Run Time Measurement (TDR)
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54/55/56/57
NEPSI：
Ex ic IIC T1-T6 Gc
Ex nA IIC T1-T6 Gc
安全指南
导波雷达液位计和导波雷达料位计
Ex 防爆说明(XA) -
Levelflex FMP50/51/52/53/54
Allgemeine bauaufsichtliche Zulassung Z-65.16-501 (DIBt)
证书(ZE) -
RFID TAG
Certificate/Declaration of Conformity
ATEX:
II 2 G Ex ia IIC T6 Gb
II 2 D Ex ia IIIC T80°C Db;
IECEx:
Ex ia IIC T6 Gb
Ex ia IIIC T80°C Db
IECEx EPS 15.0042X; EPS 15 ATEX 1 1011 X证书(ZE) -
RFID TAG (无线射频识别标签)
专用文档
RFID TAG (无线射频识别标签)
特殊资料(SD) -
Levelflex FMP53
Guided wave radar
Special Documentation
Calibration kit for Levelflex FMP53
特殊资料(SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Levelflex Quick Setup
Levelflex FMP50/51/52/53/54/55/56/57
Levelflex Quick Setup特殊资料(SD) -
Cable gland M20 Ex d
for the Japanese market
特殊资料(SD) -
Application conditions for seals and plastics in the food sector
Level measurement, pressure measurement
Special Documentation
Application conditions for seals and plastics in the food sector
特殊资料(SD) -
Bluetooth module
BT10
Accessories
Special Documentation
Accessories
特殊资料(SD) -
Hygiene approvals
Level and pressure measuring devices
特殊资料(SD) -
Levelflex FMP5x, Micropilot FMR5x
Weather protection cover
特殊资料(SD) -
Levelflex FMP5x
Tie-on label for rope probes
特殊资料(SD) -
Levelflex FMP5x
Heartbeat Diagnostics
Heartbeat Verification
Heartbeat Monitoring
Special Documentation
Guided wave radar
特殊资料(SD) -
Overvoltage Protection
1-channel (OVP10), 2-channel (OVP20)
Clip-on overvoltage protection module for 2-wire devices
Special Documentation
Pluggable overvoltage protection module for 2-wire platform devices
特殊资料(SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Functional Safety data sheet / Datenblatt zur Funktionalen Sicherheit
特殊资料(SD) -
Levelflex FMP50/51/52/53/54/55/56/57
Functional Safety Manual
Special Documentation
Guided radar for liquids and bulk solids with 4 to 20 mA output signal
特殊资料(SD) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Firmware V01.01.zz, PROFIBUS PA
Manufacturer information for users regarding software updates (NE53)生产商信息(MI) -
Levelflex FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer Information for users regarding software updates (NE53)
Software version V01.01.zz
生产商信息(MI) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Firmware: V01.03.zz, HART Dev Rev 4
Manufacturer information for users regarding software updates (NE53)生产商信息(MI) -
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Manufacturer information for users regarding software updates (NE53)
Levelflex: FMP50, FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57
Software version V01.02.00 HART生产商信息(MI) -
Trait d'union 57 - Edition des sciences de la vie
Le Journal d'Information Endress+Hauser France
用户杂志(CM)07/13fr -
Levelflex FMP53- PS_06_2011
Dokładne i powtarzalne pomiary objętości w zbiornikach magazynowych,
odporne na zmiany gęstości cieczy公共出版物(PU)04/12波兰语 -
Przetworniki poziomu Levelflex NiS_02_2011
Nowa rodzina innowacyjnych radarów falowodowych Levelflex
Evolution Series公共出版物(PU)04/12波兰语 -
Radary falowodowe Levelflex - art CE 11_2010
Levelflex Evolution Series: wyższy poziom radarów falowodowych.
Nowa rodzina innowacyjnych przetworników poziomu Endress+Hauser公共出版物(PU)03/12波兰语 -
Prevent unscheduled downtimes
With fuel and chemical supply chain management in Primaries
行业解决方案(SO)09/19英语 -
The efficient business model with Vendor Managed Inventory
Inventory solution for a chemical distributor
行业解决方案(SO)09/19英语 -
Real-time inventory information across production storages
Usage of existing material on stocks and reduction of locked-in
inventory costs行业解决方案(SO)09/19英语 -
More efficient with the supplier-managed inventory business model
Inventory and supply chain solution across depots for a chemical
producer行业解决方案(SO)09/19英语 -
Catálogo Medición y Detección de nivel
Gama de productos para aplicaciones con líquidos y sólidos
实际应用(FA)09/19西班牙语 -
Mesure de niveau
Aperçu des produits pour des applications dans des liquides et des
solides en vrac实际应用(FA)03/19fr -
Level measurement
Product overview for applications in liquids and bulk solids
实际应用(FA)03/17英语 -
Level measurement
Product overview for applications in liquids and bulk solids
实际应用(FA)03/17英语 -
Füllstandmesstechnik
Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern
实际应用(FA)03/17德语 -
Selection Guide
Continuous level measurement in liquids and bulk solids
Selection and engineering guide for the process industry
竞争力手册(CP)12/17英语 -
粉体液体の連続レベル測定
レベル計選定ガイド
竞争力手册(CP)12/17日语 -
Mesure de niveau continue dans les liquides et les solides
Sélection et configuration pour l'industrie des process
竞争力手册(CP)12/17fr -
Selection Guide, Auswahlhilfe.
Kontinuierliche Füllstandmessung in Flüssigkeiten und Schüttgütern
Auswahl- und Projektierungshilfe für die Prozessindustrie
竞争力手册(CP)11/17德语 -
Die Evolution der Inbetriebnahme
Inbetriebnahme-Wizard für Levelflex FMP5x und Micropilot FMR5x
竞争力手册(CP)11/15德语 -
Evolution of Commissioning
Commissioning Wizard for Levelflex FMP5x and Micropilot FMR5x
竞争力手册(CP)10/15英语 -
Levelflex FMP5x
Микроимпульсные уровнемеры нового поколения
竞争力手册(CP)08/13俄语 -
Next Level Instrumentation
Der Maßstab der geführten Radarmesstechnik – Die Levelflex Familie
竞争力手册(CP)04/16德语 -
Next Level Instrumentation
The standard in guided radar instrumentation – the Levelflex family
竞争力手册(CP)04/16英语 -
Непрерывное измерение уровня жидких и сыпучих продуктов
Руководство по подбору обоурдования
竞争力手册(CP)03/13俄语 -
Next Level Instrumentation
Guided Radar - Levelflex
竞争力手册(CP)01/13英语 -
Next Level Instrumentation
Il nuovo standard nei radar ad onde guidate – la famiglia Levelflex
竞争力手册(CP)01/13意大利语 -
American version: Next Level Instrumentation
American version: The new standard in guided radar instrumentation - the
Levelflex
familiy竞争力手册(CP)英语 -
American version: Continuous level measurement in liquids and bulk
solids
American version: Selection and engineering guide for the process
industry竞争力手册(CP)英语 -
The challenge and solution, inventory Management of NGLs in 1.3m x 500m
horizontal
vessels
White Paper - As presented at the Canadian School of hydrocarbon
measurement
calgary 2018案例分析(CS)05/18英语 -
Bluetooth module BT10 - checklist and Installation guide
Whatare the requirements to use the Bluetooth module BT10 for our Radar
devices?
And how do you install it? We answer these two questions in this
document.创新(IN)07/18德语 -
Bluetooth module BT10 - checklist and Installation guide
Whatare the requirements to use the Bluetooth module BT10 for our Radar
devices?
And how do you install it? We answer these two questions in this
document.创新(IN)06/18英语 -
Module Bluetooth BT10 - checklist et guide d'installation
Quelles sont les conditions requises pour utiliser le module Bluetooth
BT10 pour nos
appareils radar ?
Comment l'installer ? Nous répondons à ces deux questions dans ce
document.创新(IN)06/18fr -
Radarowe pomiary poziomu wody w walczaku
Przebadane przez Centralne Laboratorium Dozoru Technicznego
创新(IN)05/12波兰语 -
レベルフレックス
レベルフレックスＦＭＰシリーズ
创新(IN)04/17日语 -
GSD Single, GSD_PA_LE_Levelflex_0x1558_0x02_0x01_PALIB, 06.02.2015 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
GSD Single, GSD_EH_PA_LE_Levelflex_0x1558_0x01_0x01_PALIB, 14.04.2014 (Le
vel, Levelflex, 0x1558)
PROFIBUS PA,
PROFIBUS System Version: AnyGeneral Station Description (GSD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x02_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.0 SP5, 6.1, 8.1, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_5_HART_LE_Levelflex_FMP5x_0x0022_0x03_0x01, 04.04.2017 (Level, Levelflex, 0x0022)
HART,
AMS Version: 10.5, 11.0, 11.1, 11.5, 12.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, EH_FF_LE_Levelflex_FMP5x_0x1022_0x01_0x02, 07.04.2014 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: AnyElectronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_PA_LE_Levelflex_0x1558_0x01_0x01, 07.01.2019 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PDM Version: 6.0 SP5, 8.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x03, 12.10.2018 (Level, Levelflex, 0x0022)
HART,
PDM Version: 6.1, 8.1, 8.2.1, 9.0.1.2Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x01_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.0 SP5, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 12.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, FDM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x01, 11.04.2016 (Level, Levelflex)
HART,
Field Device Manager Version: R430.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS_FF_LE_Levelflex_0x1022_0x01_0x02, 02.07.2014 (Level, Leve
lflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 11.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_PA_LE_Levelflex_0x1558_0x02_0x01, 06.02.2015 (Level, Levelflex, 0x1558)
PROFIBUS PA,
PDM Version: 6.1, 8.1 SP 1, 9.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_HART_LE_Levelflex_FMP5x_0x0022_0x04_0x03, 24.08.2018 (Level, Levelflex, 0x0022)
HART,
AMS Version: 10.0, 10.5, 11.0, 11.1, 11.5Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_HART_LE_Levelflex_FMP5x_0x0022_0x04_0x03, 21.08.2018 (Level, Levelflex, 0x0022)
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1, 13.5, 14.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, PDM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x02, 20.05.2015 (Level, Levelflex)
HART,
PDM Version: 6.1, 8.1 SP1, 8.2.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS10_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 10.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, EDD_FF_LE_Levelflex_FMP5x_0x1022_0x02_0x02, 10.04.2015 (Level, Levelflex)
FOUNDATION Fieldbus H1,
FOUNDATION fieldbus System Version: AnyElectronic Data Description (EDD)1.00.00Language neutral -
EDD Single, FDM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x01, 18.08.2016 (Leve
l, Levelflex, 0x0022)
HART,
Field Device Manager Version: R430.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS12_0_HART_LE_Levelflex_FMP5x_0x0022_0x03_0x01, 04.04.2017 (Level, Levelflex, 0x0022)
HART,
AMS Version: 12.0, 12.5, 13.0, 13.1Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS13_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 13.0Electronic Data Description (EDD)1.00.00Language neutral -
EDD Single, AMS11_0_FF_LE_Levelflex_0x1022_0x02_0x02, 11.04.2017 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
AMS Version: 11.0Electronic Data Description (EDD)1.00.00Language neutral -
DTM Single, Levelflex_FMP5x_FF_FW1_00_zz_Dev_Rev_1, 22.10.2020 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0
Plant ResourceManager Version: R3.31Device Type Manager (DTM)1.11.0.1475Language neutral -
DTM Single, Levelflex_FMP5x_FF_FW1_01_zz_Dev_Rev_2, 22.10.2020 (Level, Levelflex, 0x1022)
FOUNDATION Fieldbus H1,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0
Plant Resource Manager Version: R3.12Device Type Manager (DTM)1.11.0.1471Language neutral -
DTM Single, Levelflex_FMP5x_PA_FW1_01_zz_Dev_Rev_2, 21.10.2020 (Level, Levelflex, 0x1558)
PROFIBUS PA,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Experion Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0 SP4
Plant Resource Manager Version: R3.31Device Type Manager (DTM)1.11.0.1017Language neutral -
DTM Single, Levelflex_FMP5x_PA_FW1_00_zz_Dev_Rev_1, 21.10.2020 (Level, Levelflex, 0x1558)
PROFIBUS PA,
ArchestrA IDE Version: 4.0.04001
DeviceCare Version: 1.07.00
Experion Version: R500
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
PACTware Version: 5.0 SP4
Plant Resource Manager Version: R3.31Device Type Manager (DTM)1.11.0.1015Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_02_zz_Dev_Rev_3, 28.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
FieldMate Version: 2.05
Plant Resource Manager Version: R3.10, R3.11Device Type Manager (DTM)1.10.1.2374Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_03_zz_Dev_Rev_4, 27.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Plant Resource Manager Version: R3.12Device Type Manager (DTM)1.10.1.2369Language neutral -
DTM Single, Levelflex_FMP5x_HART_FW1_01_zz_Dev_Rev_2, 23.10.2020 (Level, Levelflex, 0x0022)
HART,
DeviceCare Version: 1.07.00
Field Device Manager Version: R430.1
Field Xpert - SMT70 Version: 1.05.00
FieldCare Version: 2.15.00
Plant Resource Manager Version: R3.11Device Type Manager (DTM)1.10.0.2379Language neutral -
Faceplate Library, PRM_HART_Package_Level_1_08_00, 22.07.2015 (Level)
HART,
Plant Resource Manager Version: R3.02, R3.05, R3.11, R3.12Faceplate1.08.00Language neutral -
Faceplate Library, PRM_FF_Package_Level_1_05_00, 29.05.2018 (Level)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.02, R3.12Faceplate1.05.00Language neutral -
Faceplate Single, PRM_HART_LE_LevelflexFMP5x_0x0022_0x04_0x01, 11.04.2016 (Level, Levelflex)
HART,
Plant Resource Manager Version: R3.12Faceplate1.00.00Language neutral -
Faceplate Single, PRM_HART_LE_LevelflexFMP5x_0x0022_0x03_0x01, 19.11.2015
(Level, Levelflex)
HART,
Plant Resource Manager Version: R3.11, R3.12Faceplate1.00.00Language neutral -
Faceplate Single, PRM_FF_LE_Levelflex_0x1022_0x02_0x02, 10.04.2015 (Level, Levelflex)
FOUNDATION Fieldbus H1,
Plant Resource Manager Version: R3.12Faceplate1.00.00Language neutral -
Teaser ToF Wizard French
Animation EN 1920x1080 mp4
动画12/15fr -
Teaser ToF Wizard
Animation EN 1920x1080 mp4
动画11/15英语 -
Teaser ToF Wizard
Animation DE 1920x1080 mp4
动画11/15德语 -
Commissioning of Levelflex and Micropilot instruments
Movie EN 1280x720 mp4
动画10/14英语 -
Puesta en marcha de instrumentos Levelflex y Micropilot
La película muestra la puesta en marcha o comisionado de los rádares
guiados y sin contacto Levelflex FMP5x y Micropilot FMR5x enseis
sencillos pasos.动画10/14西班牙语 -
Animation Measuring Principle Time-of-Flight
Animation FR mp4 1280x720
动画08/13fr -
Animation Measuring Principle Time-of-Flight
Animation FR flv 480x270
动画08/13fr -
Plant Safety
Animation EN mp4
动画06/15英语 -
Plant Safety
Animation FR 1280x720 mp4
动画06/15fr -
Animation Measuring Principle Time-of-Flight
Animation ES mp4 1280x720
动画05/13西班牙语 -
Animation Measuring Principle Time-of-Flight
Animation ES flv 480x270
动画05/13西班牙语 -
Animation Measuring Principle Time-of-Flight
Animation DE flv 480x270
动画04/13德语 -
Animation Measuring Principle Time-of-Flight
Animation EN flv 480x270
动画04/13英语 -
Animation Measuring Principle Time-of-Flight
Animation DE mp4 1280x720
动画04/13德语 -
Animation Measuring Principle Time-of-Flight
Animation EN mp4 1280x720
动画04/13英语 -
Commissioning of Levelflex and Micropilot instruments
Movie IT 1280x720 mp4
动画02/15意大利语 -
Animation Measuring Principle Time-of-Flight
Animation TR mp4 1920x1080
视频08/17土耳其语 -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 FR
视频08/17fr -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 FR
视频08/17fr -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 DE
视频04/17德语 -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 DE
视频04/17德语 -
113GHz Campaign
Levelflex 1GHz guided radar
Animation 1920x1080 mp4 EN
视频03/17英语 -
113GHz Campaign
complete movie
Animation 1920x1080 mp4 EN
视频03/17英语 -
Levelflex
产品型号: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
一致性声明编号: HE_00199_01.15
制造商规格: RoHSManufacturer Declaration德语 , 英语 -
Levelflex
产品型号: FMP53-
一致性声明编号: HE_00789_01.17
制造商规格: RoHSManufacturer Declaration中文 -
Cerabar, Cerabar M, Cerabar S, Levelflex, Micropilot, Micropilot S
产品型号: FMR56-, FMR57-, FMR60-, FMR62-, FMR67-, PMC11-, PMC21-, PMC71B-, PMP11-, PMP21-, PMP23-, PMP51-, PMP51B-, PMP55-, PMP71-, PMP71B-, PMP72-, PMP75-, FMR540-, FMR54-, FMR533-, FMR532-, FMR531-, FMR530-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
一致性声明编号: HE_01158_01.19Manufacturer Declaration英语 -
Levelflex
产品型号: FMP53-
一致性声明编号: HE_01071_02.18
制造商规格: 10/2011, 1935/2004Manufacturer Declaration德语 , 英语 -
Levelflex
产品型号: FMP53-
一致性声明编号: FDA_00164_02.17FDA Declaration德语 , 英语 -
Levelflex
产品型号: FMP53-
一致性声明编号: FDA_00182_01.18FDA Declaration德语 , 英语 -
Levelflex, Levelflex M
产品型号: FMP43-, FMP53-
一致性声明编号: FDA_00170_01.17FDA Declaration德语 , 英语 -
Levelflex
产品型号: FMP53-
一致性声明编号: FDA_00198_01.18FDA Declaration德语 , 英语 -
Cerabar, Ceraphant, Levelflex, Liquiphant, Liquipoint
产品型号: PTP33B-, PMP23-, FTW33-, FTW23-, FTL33-, FMP53-
一致性声明编号: FDA_00213_01.19FDA Declaration德语 , 英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EC_00748_02.19EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EG 10 010 XEU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EG 10 009 XEU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EC_00746_02.19EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EC_00202_04.16EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EC_00747_02.19EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
一致性声明编号: EC_00633_03.18EU Declaration德语 , 英语 , fr -
Levelflex
产品型号: FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
地区/国家: Russia
认证机构: Rostekhnadzor
证书号: 01-TY-00477-2014Miscellaneous俄语 -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch
产品型号: FTL260-, FTL31-, FTL325N-, FTL325P-, FTL33-, FTL375P-, FTL50-, FTL50H-, FTL51-, FTL51C-, FTL51H-, FTL70-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW31-, FTW32-, FTW325-, FTW360-, NMR81-, NMR84-, FTI52-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-, FTI51-
地区/国家: Russia (Declaration of Conformity), Russia (TR CU)
认证机构: EAC
证书号: RU D-DE.MO10.B.05528Miscellaneous俄语 -
SYSTEM, Pumpenschutz, Nivotester FailSafe, Nivotester, Micropilot S, Micropilot, Liquipoint T, Liquipoint, Liquiphant T, Liquiphant S, Liquiphant M, Liquiphant FailSafe, Liquiphant, Liquicap T, Liquicap M, Levelflex, Floating Switch, Einstabsonde, Dreistabsonde, Doppelstabsonde
产品型号: FTL70-, FTL51H-, FTL51C-, FTL51-, FTL50H-, FTL50-, FTL375P-, FTL33-, FTL325P-, FTL325N-, FTL31-, FTL260-, FTI52-, FTI51-, FTL71-, FTL80-, FTL81-, FTL825-, FTL85-, FTS20-, FTW23-, FTW31-, FTW32-, FTW325-, FTW33-, FTW360-, NMR81-, NMR84-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMR10-, FMR20-, FMR50-, FMR51-, FMR52-, FMR53-, FMR530-, FMR532-, FMR533-, FMR54-, FMR540-, FMR60-, FMR62-, FTC325-
地区/国家: Russia (Declaration of Conformity), Russia (TR CU)
认证机构: EAC
证书号: RU D-DE.MO10.B.05531Miscellaneous俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TС RU D-DE.MU62.B.02537Miscellaneous俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Russia (TR CU)
认证机构: EAC
证书号: TC BY_112 11.01. TP020 003 127Miscellaneous俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Europe (ATEX)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion Protection德语 , 英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Russia (TR CU)
认证机构: EAC
保护: Ex ta/tb, Ex nA [ia Ga], Ex ia/d [ia], Ex ta, Ex nA, Ex ic [ia Ga], Ex ic, Ex iaExplosion Protection俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Canada
认证机构: FM
类别: I/2/A,B,C,D/T, I/zone 0, I,II,III/1/A,B,C,D,E,F,G T, I/I
保护: NI, IS, XP, Ex ia IIC T6...T1 Ga, [ia] IIC T Ga/GbExplosion Protection英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Brazil
认证机构: DEKRA
类别: zone 0,1, zone 20, zone 0, zone 2
保护: Ex ta, Ex nA, Ex ic, Ex ia, Ex dExplosion Protection葡萄牙语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: India
认证机构: CC(O)E
保护: Ex dExplosion Protection英语 -
Levelflex
产品型号: FMP50-, FMP52-, FMP54-, FMP57-, FMP55-, FMP53-, FMP51-, FMP56-
地区/国家:
认证机构:
保护: Ex d, Ex ia, Ex nA, Ex tExplosion Protection -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: USA
认证机构: FM
类别: I/2/A,B,C,D/T, I,II,III/1/A,B,C,D,E,F,G/T, I/zone 0, I/I
保护: DIP/AIS, IS, NI, XP/AIS, AEx ia IIC T6...T1 Ga, IIC T Ga/GbExplosion Protection英语 -
Levelflex
产品型号: FMP51-, FMP52-, FMP54-, FMP55-, FMP53-, FMP57-, FMP50-, FMP56-
地区/国家: Europe (ATEX)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion ProtectionLanguage neutral -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: India
认证机构: CC(O)E
保护: Ex iaExplosion Protection英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Brazil
认证机构: DEKRA
类别: zone 0,1, zone 20, zone 0, zone 2
保护: Ex ta, Ex nA, Ex ic, Ex ia, Ex dExplosion Protection葡萄牙语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion Protection英语 -
Levelflex
产品型号: FMP54-, FMP51-, FMP50-, FMP52-, FMP55-, FMP53-, FMP57-, FMP56-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion Protection英语 -
Levelflex
产品型号: FMP57-, FMP54-, FMP52-, FMP55-, FMP51-, FMP53-, FMP56-, FMP50-
地区/国家: South Korea
认证机构: KTL
保护: Ex iaExplosion Protection -
Levelflex
产品型号: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
地区/国家: Brazil
认证机构: DEKRA
类别: zone 0,1, zone 20, zone 0, zone 2
保护: Ex ic, Ex ia, Ex d, Ex ta, Ex nAExplosion Protection葡萄牙语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Canada, USA
认证机构: CSA
类别: I/2/A,B,C,D, I,II,III/1/A,B,C,D,E,F,G, I/zone 1, I/zone 0
保护: IS, XP, AEx/Ex ia IIC T, AEx/Ex d [ia] IIC TExplosion Protection英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: China
认证机构: NEPSI
类别: zone 20,21, zone 0,1, zone 20, zone 0, zone 2, zone 1
保护: Ex ic [ia] IIC T6...T1 Gc, Ex nA IIC T6...T1 Gc, Ex nA [ia] IIC T6...T1 Gc, DIP A20/21 TA, Txxx°C IP66, Ex ic IIC T6...T1 Gc, Ex iaD 20 Txxx°C, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIC T6...T1 Ga, Ex d [ia] IIC T6...T1 Gb, Ex d [ia] IIC T6...T1 Ga/GbExplosion Protection中文 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion Protection英语 -
Levelflex
产品型号: FMP50-, FMP54-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
地区/国家: South Korea
认证机构: KTL
保护: Ex dExplosion Protection -
Levelflex
产品型号: FMP54-, FMP51-, FMP50-, FMP52-, FMP55-, FMP53-, FMP57-, FMP56-
地区/国家: International (IECEx)
认证机构: DEKRA
保护: Ex db, Ex ta, Ex nA, Ex ic, Ex iaExplosion Protection英语 -
Levelflex
产品型号: FMP53-
地区/国家: EuropeHygienic Equipment英语 -
Prosonic S, Nivector, Micropilot, LIQUITREND, Liquipoint, Liquiphant M, Liquicap M, Levelflex, Deltapilot S, Deltapilot M, Deltabar S, Deltabar, Ceraphant, Cerabar T, Cerabar S, Cerabar M, Cerabar
产品型号: QMW43-, PTP33B-, PMP75-, PMP55-, PMP51-, PMP23-, PMC71-, PMC51-, FTW33-, FTW23-, FTL51H-, FTL50H-, FTL33-, FDU91F-, FMB50-, FMB70-, FMD71-, FMD72-, FMD78-, FMI51-, FMP52-, FMP53-, FMR52-, FMR62-, FTI26-, FTI51-
地区/国家: USA
认证机构: 3-A Sanitary StandardsHygienic Equipment英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
地区/国家: Germany
认证机构: DIBt
证书号: Z-65.16-501Overfill Prevention德语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
地区/国家: Germany
认证机构: DIBt
证书号: Z-65.16-501Overfill Prevention德语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-
地区/国家: Germany
认证机构: DIBt
证书号: Z-65.16-501Overfill Prevention德语 -
Levelflex, Micropilot
产品型号: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Radio Equipment -
Levelflex, Micropilot
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-, FMR50-, FMR51-, FMR52-, FMR53-, FMR60-, FMR62-
Radio Equipment日语 -
Levelflex, Micropilot
产品型号: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-
Radio Equipment -
Levelflex, Micropilot
产品型号: FMR67-, FMR62-, FMR60-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMR50-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-, FMR57-
地区/国家: USARadio Equipment英语 -
Levelflex, Micropilot
产品型号: FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR54-, FMR53-, FMR52-, FMR51-, FMP57-, FMP56-, FMP55-, FMP54-, FMP53-, FMP52-, FMP51-, FMP50-, FMR50-
Radio Equipment英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: International
认证机构: PI, PROFIBUS InternationalFieldbus Conformance英语 -
Product Family: Levelflex
产品型号: FMP50-, FMP52-, FMP57-, FMP55-, FMP51-, FMP53-, FMP56-
地区/国家: International
认证机构: Fieldbus Foundation
软件版本号: DEVICE REV. 01, DD-ITK 6.00Fieldbus Conformance英语 -
Micropilot, Micropilot S, Minicap, Nivector, Prosonic M, Prosonic S, Prosonic T, Pumpenschutz, Solicap M, Solicap S, Soliphant M, Soliphant T, SYSTEM, Doppelstabsonde, Dreistabsonde, Einstabsonde, Levelflex, Liquicap M, Liquicap T, Liquiphant, Liquiphant FailSafe, Liquiphant M, Liquiphant S, Liquipoint, Liquipoint T, LIQUITREND
产品型号: FTL51C-, FTL51B-, FTL51-, FTL50H-, FTL50-, FTL41-, FTL33-, FTL31-, FTI77-, FTI56-, FTI55-, FTI52-, FTI51-, FTI26-, FTC968Z-, FTC262-, FTC260-, FMU44-, FMU43-, FTL51H-, FTL62-, FTL64-, FTL70-, FTL71-, FTL80-, FTL81-, FTL85-, FTM20-, FTM21-, FTM50-, FTM51-, FTM52-, FTW23-, FTW31-, FTW32-, FTW33-, NMR81-, NMR84-, QMW43-, FMU42-, 11362Z-, 11363Z-, 11371-, 11375Z-, 11961Z-, FDU90-, FDU91-, FDU91F-, FDU92-, FDU93-, FDU95-, FMI21-, FMI51-, FMI52-, FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMU41-, FMU40-, FMU30-, FMR67-, FMR62-, FMR60-, FMR57-, FMR56-, FMR540-, FMR54-, FMR532-, FMR53-, FMR52-, FMR51-, FMR50-, FMR20-, FMR10-, FMP57-, FMP56-
认证机构: TÜVPressure Equipment德语 , 英语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Kazakhstan
认证机构: KazInMetr
证书号: 12914Metrology -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Uzbekistan
认证机构: UZS
证书号: 02.6586Metrology俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: Russia
认证机构: Rosstandart
证书号: OC.C.29.004.A NO 62785/1Metrology俄语 -
Levelflex
产品型号: FMP50-, FMP51-, FMP52-, FMP53-, FMP54-, FMP55-, FMP56-, FMP57-
地区/国家: International
认证机构: TÜVSafety Integrity Level (SIL)德语 , 英语
附件/备件
-
-
Nr 19 Order code 71115175
-
-
-
-
Nr 25 Order code 71110301
-
Nr 25 Order code 71110302
-
Nr 25 Order code 71185517
铝盖
Material: aluminium. O-ring EPDM, PTFE coated. Usage: terminal compartment, for overvoltage protection, not for Ex d/XP, FMP50/FMP51/FMP52/FMP53/FMP54/FMP55/ FMP56/FMP57, FMR50/FMR51/FMR52/FMR53/ FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
Nr 65 Order code 71110303
外壳密封套件
Consists of: O-ring 88.5x3.53 EPDM/PTFE, cover electronics compartment, housing GT19. O-Ring 88.5x3.53 NBR, cover electronics compartment, housing GT18, GT20. O-ring 91.67x3.53 EPDM/PTFE, cover terminal compartment, housing GT19. O-Ring 91.67x3.53 NBR, cover terminal compartment, housing GT18, GT20. O-ring 50.39x3.53 EPDM/PTFE, housing/sensor. FMP50/FMP51/FMP52/FMP53/ FMP54/FMP55/FMP56/FMP57, FMR50/FMR51/ FMR52/FMR53/FMR54/FMR56/FMR57, FMR60/FMR62/FMR67. Usage: Promass 200/TB2, Prosonic Flow 200, Promag 200, Prowirl 200.
-
-
-
-
-
-
Nr 40 Order code XPD0024-
Display module, SD02, push buttons
For housing: GT18, GT19, GT20. Usage: FMP50/51/52/53/54/55/56/57, FMR50/51/52/53/54/56/57, FMR60/62/67, FHX50. Promass 200/TB2, Prosonic Flow 200, t-mass 150, Promag 200, Prowirl 200. Consists of: Display SD02, helix cable, ribbon cable, connector cover.
-
Nr 40 Order code XPD0025-
-
-
-
-
-
-
-
老产品
